Extron IN1804 Four Input 4K/60 Scaler
Product Overview

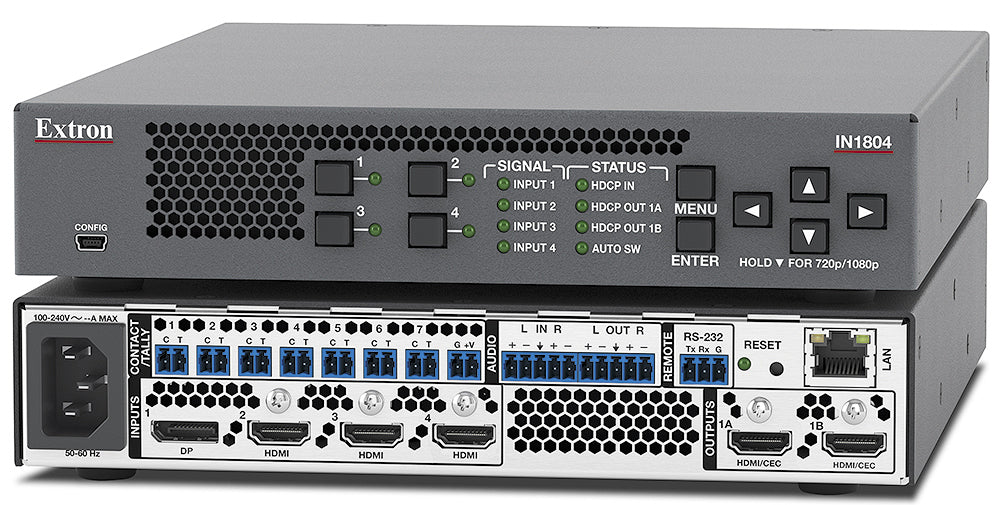

The Extron IN1804 is a compact four-input 4K/60 scaler supporting signal resolutions up to 4K/60 at 4:4:4. It uses Extron-patented Vector 4K scaling for high-precision up- and downscaling, accepts DisplayPort and HDMI inputs, and offers optional DTP2 extension of 4K/60 video, audio, and control up to 330 feet over shielded CATx cable. Available from Creation Networks.
Product Description

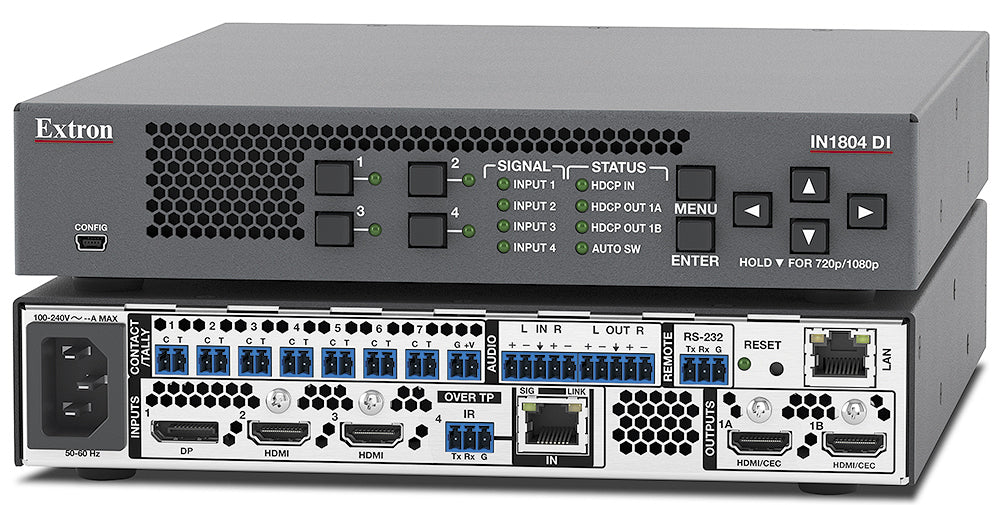

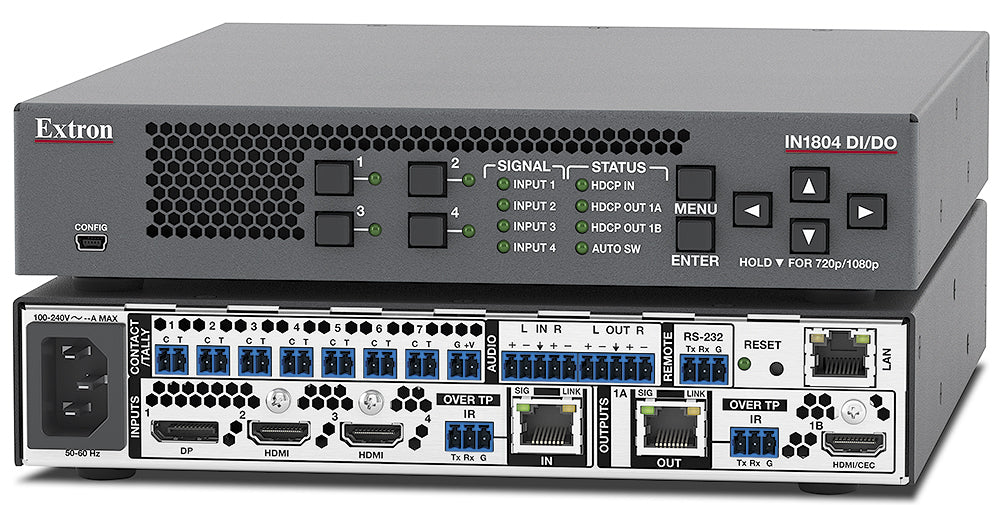

The IN1804 handles four source inputs — DisplayPort and HDMI — and scales any input to a consistent 4K/60 at 4:4:4 output for connected displays or DTP2 receivers. Vector 4K scaling uses 30-bit precision processing algorithms developed by Extron to deliver accurate scaling of SD, HD, and 4K signals without losing image detail, including downscaling of 4K sources for lower-resolution displays. Switching transitions include freeze/fade, cut-through-black, and fade-through-black. A logo keying feature allows a custom graphic such as a company logo to be inserted over video output. Aspect ratio control offers FILL (full screen) and FOLLOW (preserve source aspect ratio) modes. Audio embedding and de-embedding are supported. Available DTP2-equipped models — IN1804 DI, IN1804 DO, and IN1804 DI/DO — add twisted-pair input and/or output connectivity for signal extension to and from remote locations. The IN1804 is controlled via Ethernet, RS-232, USB, or contact closure with tally output.
Key Features
- Four Inputs: DisplayPort and HDMI — Accepts both DisplayPort and HDMI sources with support for 4K/60 at 4:4:4 from all inputs.
- Vector 4K Scaling — 30-Bit Precision — Extron-patented scaling engine for best-in-class upscaling and downscaling across SD, HD, and 4K source resolutions.
- 4K/60 at 4:4:4 Output — Delivers consistent 4K/60 with full 4:4:4 chroma sampling to connected displays or receivers.
- Optional DTP2 Signal Extension to 330 Feet — DI/DO/DI-DO models extend 4K/60 video, audio, and RS-232 over shielded CATx cable.
- Seamless Switching Transitions — Freeze/fade, cut-through-black, and fade-through-black transitions for professional source switching.
- Logo Keying — Overlay a custom graphic image on the video output, such as a company or institution logo.
- FILL and FOLLOW Aspect Ratio Modes — Choose full-screen fill or aspect-ratio-preserving output to match display requirements.
- Audio Embedding and De-Embedding — Extract or insert audio independently from the video signal path.
- Auto-Switching — Fast, reliable automatic source selection when a new active input is detected.
- Multiple Control Interfaces — Ethernet, RS-232, USB, and contact closure with tally output for integration with control systems.
- Compact Enclosure — Space-efficient form factor for lectern, rack, or furniture installation.
Technical Specifications
| IN1804 — Technical Specifications (SKU 60-1699-11) | |
|---|---|
| Video Inputs | |
| Number/type | 4 (DisplayPort and HDMI; exact mix per model) |
| Max input resolution | 4K/60 at 4:4:4 |
| Video Output | |
| Output | HDMI; DTP2 (model dependent) |
| Max output resolution | 4K/60 at 4:4:4 |
| Scaling | |
| Technology | Extron Vector 4K; 30-bit precision processing |
| Scaling range | SD upscale to 4K; 4K downscale to SD/HD |
| DTP2 Extension (DI/DO/DI-DO models) | |
| Distance | Up to 330 ft (100 m) |
| Cable | Shielded CATx, solid conductor |
| Signals extended | 4K/60 video, audio, RS-232 |
| Audio | |
| Embedding/de-embedding | Yes |
| Switching | |
| Auto-switching | Yes |
| Transition effects | Freeze/fade; cut-through-black; fade-through-black |
| Control | |
| Interfaces | Ethernet; RS-232; USB; contact closure with tally output |
| General | |
| Power | External power supply; 100–240 VAC |
| Regulatory | CE, FCC, IC; RoHS compliant |
| Warranty | 3 years parts and labor |
Typical Application
The IN1804 is deployed in conference rooms, classrooms, and boardrooms where multiple DisplayPort and HDMI sources need to be scaled to a single consistent 4K output for a display or downstream AV system. The DTP2 models are particularly well suited to rooms where sources at a table or lectern need to be extended to a display mounted on a far wall or above a ceiling-mounted projector.
Spec Sheet PDF Download
