Extron IN1606 6-Input 4K Presentation Switcher

Product Description

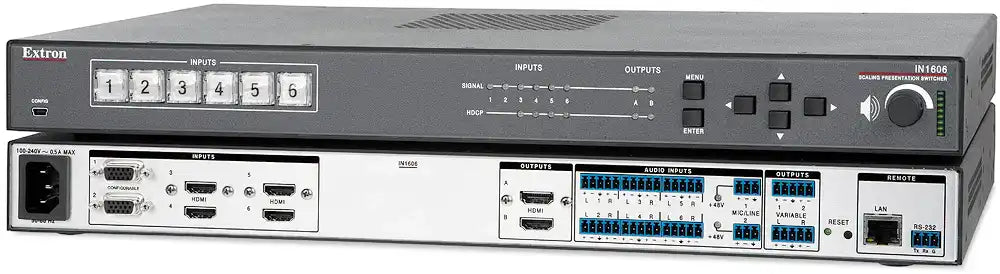

The Extron IN1606 scaling presentation switcher is a six-input, HDCP-compliant presentation switcher and scaler that integrates HDMI, RGB, HDTV, and standard-definition video sources into a single scaled signal for commercial AV displays and projectors. It combines four HDMI inputs and two universal analog video inputs, switching and scaling them to two simultaneous HDMI outputs through an advanced Extron scaling engine with 1080i deinterlacing and Deep Color processing. With selectable output rates up to 1920x1200 and 2048x1080 (2K), the IN1606 is well suited to classrooms, lecture halls, conference rooms, and training rooms that bring together a mix of modern and legacy sources.

The IN1606 simplifies AV system design by consolidating source switching, video scaling, audio processing, and control into a single 1U enclosure. Extron EDID Minder automatically manages EDID communication to keep sources outputting at the correct rate, while Key Minder authenticates and maintains continuous HDCP encryption for reliable display of protected content. Comprehensive audio handling includes six stereo audio inputs, two variable stereo outputs, two mic/line inputs with ducking and 48 V phantom power, plus HDMI audio embedding and de-embedding for flexible sound routing in the room.

Integrators control the IN1606 locally from the front panel or remotely over Ethernet, RS-232, and USB, and the switcher integrates with Extron control systems for centralized room automation. For a complete commercial AV system, pair the IN1606 with an Extron control processor such as the Extron IPCP Pro 350 xi, and browse compatible switching, control, and audio products in the Extron collection.

Key Features

• Six Mixed-Format Inputs — Four HDMI inputs and two universal analog video inputs accept HDMI, RGB, HDTV, and standard-definition sources for flexible classroom and conference room switching.
• Dual Simultaneous HDMI Outputs — Two simultaneous HDMI outputs drive a primary display and a secondary display, recorder, or distribution device from the same scaled signal.
• Advanced Scaling Engine — An Extron scaling engine with 1080i deinterlacing and Deep Color processing provides selectable output rates up to 1920x1200 and 2048x1080 (2K).
• HDCP-Compliant Signal Handling — The IN1606 supports HDCP 1.4 with DVI 1.0 and HDMI 1.3, and handles data rates up to 6.75 Gbps for reliable display of protected content.
• EDID Minder and Key Minder — EDID Minder manages EDID communication with each source while Key Minder maintains continuous HDCP authentication across inputs and outputs.
• Integrated Audio Processing — Six stereo audio inputs, two variable stereo outputs, two mic/line inputs with ducking and 48 V phantom power, and HDMI audio embedding and de-embedding support professional sound routing.
• Flexible Control Interfaces — Front-panel buttons plus Ethernet, RS-232, and USB control enable local operation and integration with Extron and third-party control systems.
• Rack-Mountable Enclosure — A 1U full-rack-width metal enclosure mounts cleanly in a standard equipment rack for commercial installations.

Technical Specifications

Frequently Asked Questions

What input and output connections does the IN1606 provide?

The IN1606 has six inputs, comprising four HDMI inputs and two universal analog video inputs, and provides two simultaneous HDMI outputs so you can drive a primary display along with a second display or recording device.

What output resolutions does the IN1606 support?

Its scaling engine supports selectable output rates from 640x480 up to 1920x1200 and 2048x1080 (2K), including 1080p/60, with 1080i deinterlacing and Deep Color processing.

How does the IN1606 handle HDCP-protected content?

The switcher is HDCP 1.4 compliant and uses Extron Key Minder to authenticate and maintain continuous HDCP encryption across all inputs and outputs, while EDID Minder manages EDID communication with each source.

What audio capabilities does the IN1606 include?

It offers six stereo audio inputs, two variable stereo outputs, two mic/line inputs with ducking and 48 V phantom power, and HDMI audio embedding and de-embedding for flexible room sound routing.

How is the IN1606 controlled and integrated into an AV system?

The IN1606 is controlled from the front panel or remotely over Ethernet, RS-232, and USB, and integrates with Extron control systems such as the IPCP Pro 350 xi for centralized room control. See related products in the Extron collection.

How is the IN1606 mounted?

The IN1606 is housed in a 1U, full-rack-width metal enclosure that mounts in a standard equipment rack for commercial AV installations.
