Extron IN1604 HD Four Input Scaler with HDMI Output
Product Overview

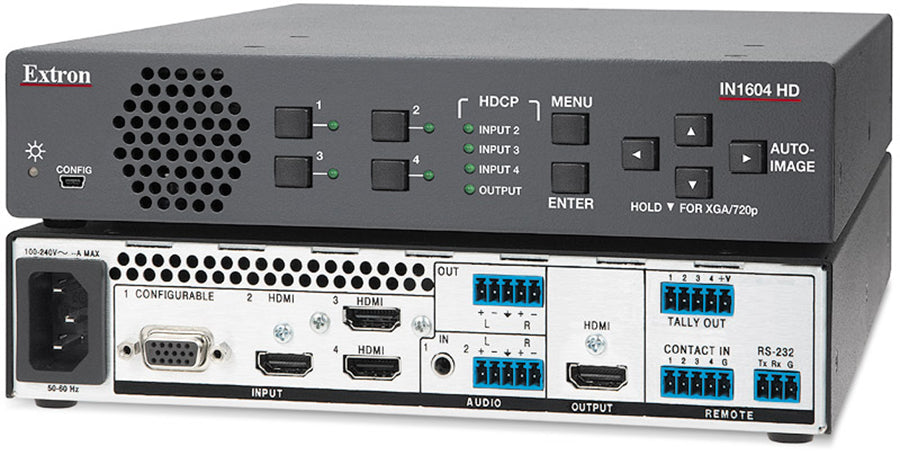

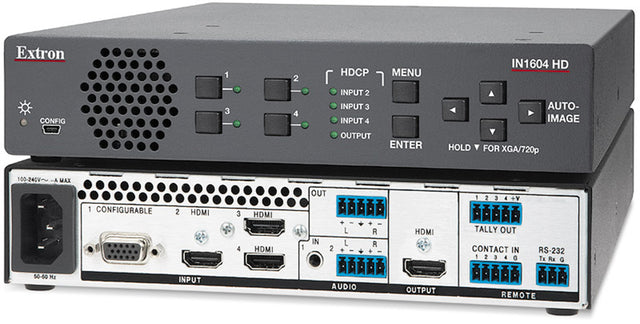

The Extron IN1604 HD is a compact HDCP-compliant scaler with three HDMI inputs, one universal analog video input, and a HDMI output — in a 1U half-rack enclosure. It delivers fast and reliable auto-switching, a high-performance scaling engine, audio processing, and multiple control options for installation beneath conference tables or in lecterns. Available at Creation Networks.
Product Description
The IN1604 HD is designed for localized source switching in conference tables, lecterns, and under-table AV installations where three HDMI and one analog video source must be switched and scaled to a local display via HDMI. The universal 15-pin HD analog input accepts RGBHV, component, S-Video, and composite signals without adapters. Auto-switching detects new connections and switches automatically, making it ideal for unmanaged installations. The high-performance scaling engine handles resolutions from 640x480 through 1920x1200 and 1080p/60. Audio processing includes embedding, de-embedding, and level control. Control is via Ethernet, RS-232, USB, and contact closure. Available at Creation Networks.
Key Features
- Four-Input Scaler (3 HDMI + 1 Universal Analog) — Three HDMI and one 15-pin HD analog input (RGBHV, component, S-Video, composite); scaling to 1920x1200 and 1080p/60.
- HDMI Output — Direct HDMI output to a local display; ideal for installations where signal extension is not required.
- Auto-Switching — Detects and switches to newly connected sources automatically; priority-based or last-connected modes.
- High-Performance Scaling Engine — 30-bit precision; motion-adaptive deinterlacing for 1080i; 640x480 through 1920x1200 and 1080p/60 output.
- HDCP Compliant — EDID Minder, Key Minder, and SpeedSwitch for reliable HDCP handling and fast switching.
- Audio Embedding and De-Embedding — Routes program audio between HDMI and analog independently of video.
- Multiple Control Options — Ethernet, RS-232, front-panel USB, and contact closure with tally outputs.
- Compact 1U Half-Rack Enclosure — 1.72" H x 8.5" W; 2.1 lbs (1.0 kg); fits under conference tables and in lecterns.
Technical Specifications
| IN1604 HD — Technical Specifications (SKU 60-1457-02) | |
|---|---|
| Video inputs | 3 HDMI (HDCP); 1 universal 15-pin HD (RGBHV, component, S-Video, composite) |
| Video output | 1 HDMI |
| Scaled resolutions | 640x480 through 1920x1200 and 1080p/60; 2K |
| Audio | Stereo balanced/unbalanced line input and output; HDMI audio embedding/de-embedding |
| Control | Ethernet; RS-232; front-panel USB; contact closure with tally |
| Auto-switching | Priority-based or last-connected |
| Power supply | Internal Extron Everlast; 100–240 VAC |
| Enclosure | 1U, half rack; 1.72" H x 8.5" W; 2.1 lbs (1.0 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The IN1604 HD is installed in conference table modules, lecterns, and under-table AV closets where three HDMI and one analog source must be switched and scaled to a local HDMI display with minimal cabling and installation space.
