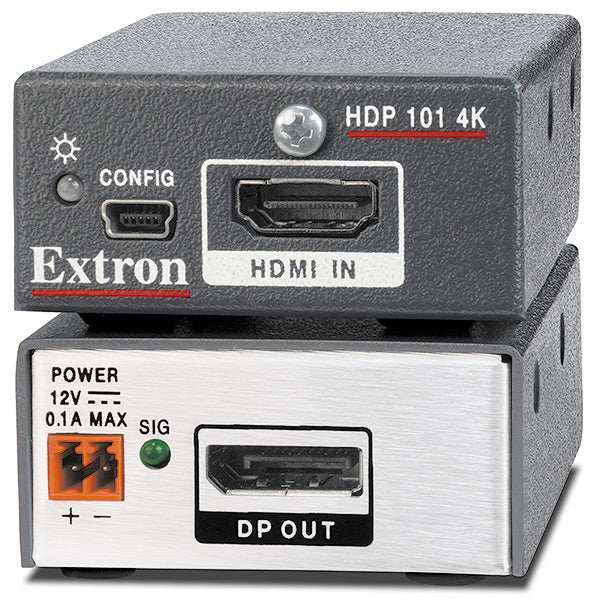

Extron HDP 101 4K HDMI F-DisplayPort F, Converter

The Extron HDP 101 4K is a compact, active HDMI to DisplayPort converter for signals up to 4K/30 @ 4:4:4. It converts HDMI signals for connection to DisplayPort 1.1 displays or peripherals. The HDP 101 4K is HDCP compliant and features EDID Minder®, which maintains continuous EDID communication with connected devices and ensures that the HDMI source powers up properly and maintains correct video output. Audio information is passed between source and display. Incoming HDMI signals are equalized up to 15 feet (4 meters) at the input to compensate for signal loss. The HDP 101 4K is ideal for integrating HDMI sources into new or existing DisplayPort system designs.

Features

• Provides connectivity between HDMI sources and DisplayPort displays and peripherals
• Supports computer and video resolutions up to 4K/30 @ 4:4:4 with data rates up to 10.2 Gbps
• Supported HDMI specification features include data rates up to 10.2 Gbps, 3D, Lip Sync, and HD lossless audio formats
• Equalizes incoming HDMI signals up to 15 feet (4 meters) to compensate for signal loss due to low quality cables or marginal sources
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• Selectable resolutions and refresh rates — Pre-stored EDID is communicated to the source based on a user-selected resolution and refresh rate.
• EDID capture mode — When connected to a display, the HDP 101 4K offers the option of capturing and then storing EDID information from the display device.
• Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.
• Complies with HDMI and VESA Interoperability Guidelines
• HDCP compliant
• Front panel USB configuration port — Provides convenient access for setup, configuration, and firmware updates.
• Easy setup and commissioning with Extron’s PCS – Product Configuration Software — Conveniently configure multiple products using a single software application.
• Compact 1” (2.5 cm) high, 2.2” (5.6 cm) wide enclosure for discreet placement and mounting in space-constrained environments — Includes fabric hook and loop tape for easy installation in any application.
• Includes LockIt® HDMI cable lacing brackets
• External Extron Everlast™ power supply included, replacement part #70-1175-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

Specs

HDP 101 4K
specification
Frame rate1	24, 25, or 30 fps
Chroma sampling1	4:4:4 or 4:2:2
Color bit depth1	8 bits per color
Signal Type	HDMI 1.4, DisplayPort 1.1, HDCP 1.4
Max. video data rate	10.2 Gbps (3.4 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock	300 MHz
Resolution range	Up to 2560x1600* @ 60 Hz, or 4K (4096x2160*) @ 30 Hz, UHD (3840x2160*) @ 30 Hz (* reduced blanking)
Color bit depth	8 bits per color
Formats	RGB digital video
Standards	DisplayPort 1.1, HDMI 1.4, HDCP 1.4
NOTE     Only Single Stream Transport (SST) is supported.
Video input
Number/signal type	1 HDMI (or single link DVI-D)
Connectors	1 female HDMI Type A
Input cable length	Up to 15' (4.5 m)
NOTE     Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Video output
Number/signal type	1 DisplayPort
Connectors	1 female DisplayPort
Output cable length	Up to 15' (4.5 m)
General
Power supply	External: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 Watts
Power consumption
Device	1.3 watts
Device and power supply	1.4 watts
Thermal dissipation
Device	4.2 BTU/HR
Device and power supply	4.6 BTU/HR
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting	Yes, with included hook and loop fastener or optional mounting brackets
Enclosure type	Metal
Enclosure dimensions	1.0" H x 2.2" W x 3.0" D (1/8 rack wide) (2.5 cm H x 5.6 cm W x 7.6 cm D) (Depth excludes connectors)
Product weight	0.1 lbs (<0.1 kg)
Regulatory compliance	CE, c-UL, C-tick, FCC Class A, ICES, VCCI, RoHS, UL, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(5096-D7)
