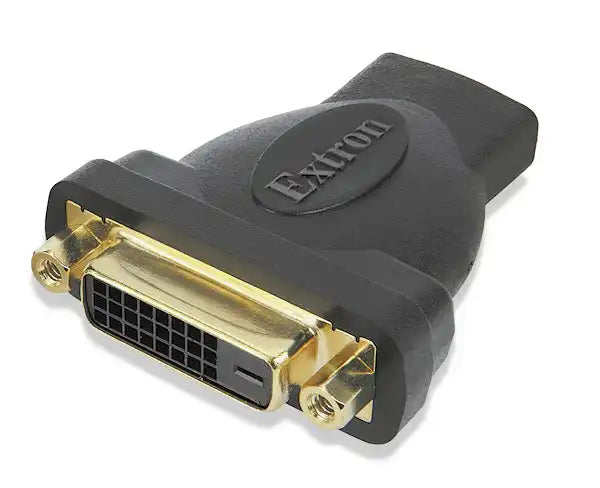

Extron HDMI Female to DVI-D Female Adapter
The Extron HDMI Female to DVI-D Female Adapter enables reliable interconnection between HDMI male and DVI-D male cables or devices in professional AV systems. This passive adapter supports single-link digital video signals up to 1920x1200 @ 60 Hz and 1080p @ 60 Hz, passing EDID information from the DVI-D connected display to the HDMI source for automatic resolution matching and optimal performance. It is ideal for bridging HDMI outputs on sources such as media players, computers, switchers, or extenders to DVI-D inputs on projectors, monitors, or legacy displays in conference rooms, classrooms, control rooms, and presentation environments where mixed HDMI/DVI connectivity is required.
Compact and robust, the adapter features HDMI female (Type A) on one side and DVI-D female (single-link) on the other with gold-plated contacts for low-resistance, corrosion-resistant connections. It requires no external power and provides plug-and-play simplicity, making it a convenient solution for integrators maintaining or upgrading AV systems without replacing existing cables or adding active converters.
Features Chart
| Feature | Benefit |
|---|---|
| HDMI Female to DVI-D Female Configuration | Connects HDMI male cables/devices to DVI-D male cables/devices |
| Single-Link Digital Video Support | Handles standard HD resolutions reliably |
| EDID Pass-Through | Allows source to detect display capabilities for correct settings |
| Gold-Plated Contacts | Ensures corrosion resistance and consistent signal quality |
| Passive Design | No power supply or active circuitry required |
| Compact Form Factor | Minimizes added bulk in rack, desktop, or enclosure setups |
| Plug-and-Play Operation | Simplifies integration in existing HDMI/DVI systems |
| Professional AV Compatibility | Suited for mixed-format installations in commercial environments |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | HDMI Female (Type A) |
| Connector B | DVI-D Female (single-link, 18+1 pins) |
| Adapter Type | Passive HDMI to DVI-D |
| Maximum Resolution | 1920 x 1200 @ 60 Hz; 1080p @ 60 Hz |
| Signal Type | Single-link digital video only |
| EDID Support | Full pass-through from DVI-D to HDMI source |
| Power Requirement | None (passive) |
| Applications | HDMI source to DVI-D display bridging |
| Compatibility | HDMI 1.4 or earlier sources; single-link DVI-D displays |
Compare Chart
| Aspect | Extron HDMI Female to DVI-D Female | Monoprice HDMI to DVI Adapter | StarTech HDMI to DVI Adapter |
|---|---|---|---|
| Connector Configuration | HDMI F to DVI-D F | HDMI M to DVI-D M typical | HDMI M to DVI-D M typical |
| Signal Type | Passive single-link | Passive single-link | Passive or active variants |
| Max Resolution | 1920x1200 @ 60 Hz / 1080p/60 | 1920x1200 @ 60 Hz typical | 1920x1200 @ 60 Hz typical |
| EDID Pass-Through | Yes | Yes | Yes |
| Gold-Plated Contacts | Yes | Yes | Yes |
| Primary Use | Cable/device bridging | Direct source to display | Direct source to display |
| Power Requirement | None | None | None (passive models) |
| Form Factor | Compact adapter | Cable or adapter | Cable or adapter |
FAQ
- What is the main purpose of the HDMI Female to DVI-D Female Adapter? It bridges HDMI male outputs to DVI-D male inputs, allowing HDMI sources to connect to DVI-D displays or devices.
- What resolutions does this adapter support? It supports single-link digital signals up to 1920x1200 @ 60 Hz and 1080p @ 60 Hz.
- Does the adapter require power? No, it is fully passive and draws no external power.
- How is EDID handled? EDID information passes from the DVI-D connected display to the HDMI source for automatic resolution configuration.
- Is this adapter suitable for dual-link DVI? No, it supports single-link DVI-D only; dual-link signals are not compatible.
- Can it be used in both directions? No, it is designed for HDMI source to DVI-D display connectivity; reverse use is not supported.
