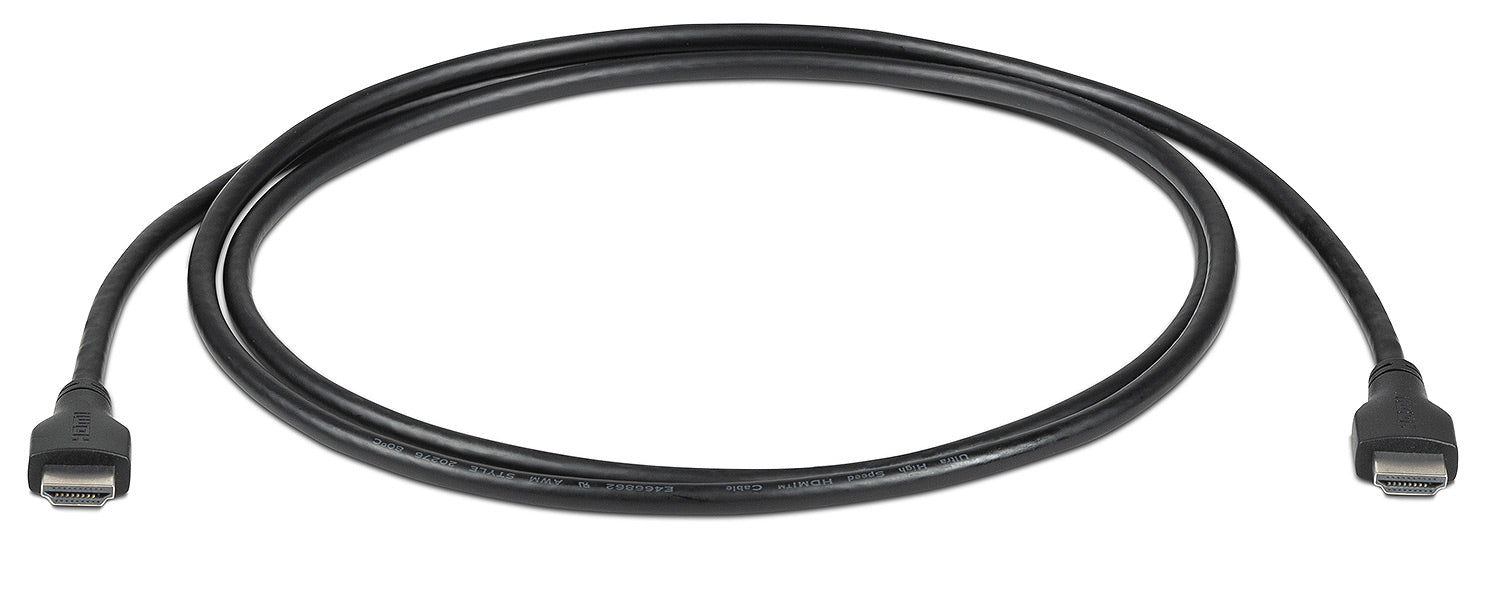

Extron HD 8K/6 – 48 Gbps Ultra High Speed HDMI Cable, 6 ft (1.8 m)
Extron HD 8K/6 – 48 Gbps Ultra High Speed HDMI Cable, 6 ft (1.8 m) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron HD 8K/6 – 48 Gbps Ultra High Speed HDMI Cable, 6 ft (1.8 m)
Product Overview
HD 8K/6 (6 ft (1.8 m)), part number 26-743-06. Extron HD 8K cables are 48 Gbps ultra high speed HDMI cables built for commercial AV systems running 8K and high frame rate formats. They transmit HDMI video and audio at resolutions up to 8K/60 and support 4K/120, dynamic HDR, eARC, and immersive audio formats including Dolby Atmos and DTS:X. EDID, HDCP, CEC, HEC, and eARC all pass through, so downstream negotiation behaves as designed. The cables are certified for use with Extron AVEdge, Cable Cubby, and HSA Hideaway surface access enclosures.
Product Description
HDMI cable is where 8K system designs quietly fail. A cable that carries 4K/60 without complaint will produce sparkles, dropouts, or a black screen at 48 Gbps, and the fault is difficult to isolate once the room is closed up. The HD 8K series is specified to the full ultra high speed data rate so the cable is not the variable in commissioning.
Signal support covers up to HDMI 2.1 with HDCP 1.4 and HDCP 2.3, at data rates to 48.1 Gbps. That accommodates 7680x4320 at 60 Hz with 4:2:0 chroma and 12-bit color, 4:4:4 at 30 Hz, and 5120x2880 at 60 Hz with 4:4:4 and 12-bit for 5K formats. High frame rate operation reaches 3840x2160 at 120 Hz, relevant for esports, simulation, and sports analysis rooms.
Audio and control pass-through are complete: PCM 8-channel, DTS-HD Master Audio, DTS:X, Dolby TrueHD, and Dolby Atmos are supported, along with EDID, HDCP, CEC, HEC, and eARC. Enhanced gaming features including QMS, VRR, ALLM, and QFT are compatible, which matters for gaming and simulation spaces where frame pacing is part of the requirement.
For furniture and lectern installations, the cables are certified for use with Extron AVEdge, Cable Cubby, and HSA Hideaway surface access enclosures, so the bend radius and connector profile work inside the enclosure rather than fighting the lid. Available in 6 foot (1.8 m) and 9 foot (2.7 m) lengths for table, rack, and display-adjacent runs.
Key Features
- 48 Gbps data rate — Certified for the full ultra high speed HDMI data rate so 8K and high frame rate formats pass without dropouts.
- 8K/60 and 4K/120 support — Handles 7680x4320 at 60 Hz and 3840x2160 at 120 Hz for high resolution and high frame rate applications.
- Dynamic HDR — Supports dynamic High Dynamic Range video for accurate contrast and color on capable displays.
- Immersive audio formats — Carries PCM 8-channel, DTS-HD Master Audio, DTS:X, Dolby TrueHD, and Dolby Atmos.
- Complete control pass-through — EDID, HDCP, CEC, HEC, and eARC all pass through for correct downstream negotiation.
- Enhanced gaming compatibility — Compatible with QMS, VRR, ALLM, and QFT for esports, simulation, and sports analysis rooms.
- Enclosure certified — Certified for use with Extron AVEdge, Cable Cubby, and HSA Hideaway surface access enclosures.
- Two commercial lengths — Offered in 6 ft (1.8 m) and 9 ft (2.7 m) for table, rack, and display-adjacent runs.
Technical Specifications
| Specification | Detail |
|---|---|
| Extron part number | 26-743-06 |
| Model | HD 8K/6 |
| Version | 6 ft (1.8 m) |
| Availability | Shipping |
| Frame rate | 24, 25, 30, 50, 60, or 120 fps |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth | 8, 10, or 12 bits per color |
| Signal type | Up to HDMI 2.1, HDCP 1.4 and HDCP 2.3, HDR |
| Max. video data rate | 48.1 Gbps |
| Max. 8K capability | 7680x4320 at 60 Hz, 4:2:0, 12 bit; 30 Hz at 4:4:4 |
| Max. 4K/5K capability | 5120x2880 at 60 Hz, 4:4:4, 12 bit; 3840x2160 at 120 Hz |
Specifications sourced from Extron product documentation.
