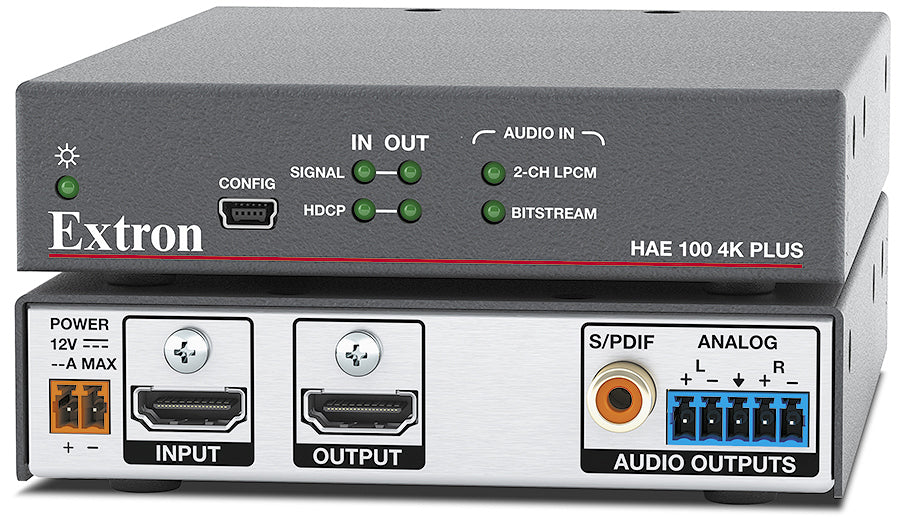

Extron HAE 100 4K Plus 4K/60 HDMI Audio De-Embedder

The Extron HAE 100 4K Plus is a high performance 4K/60 audio de-embedder that extracts the audio from an HDMI signal. The HAE 100 4K Plus provides an analog output for stereo or dual mono signals, as well as an S/PDIF digital audio output that supports two-channel or Dolby® and DTS® multi-channel formats. It is HDCP 2.3 compliant, supporting data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, lossless audio formats, and CEC pass-through. The HAE 100 4K Plus is equipped with integrator-friendly features such as a buffered HDMI video output with EDID Minder®, HDMI input cable equalization, and comprehensive LED status display.

Features

• De-embeds two-channel analog and S/PDIF digital audio from an HDMI signal — The HAE 100 4K Plus offers the flexibility to support analog stereo, dual mono, or two-channel LPCM audio. Dolby® or DTS® multi-channel surround formats are supported on an S/PDIF output. This is especially convenient for surround sound processors without HDMI inputs.
• Supports 4K/60 @ 4:4:4 — 4K (4096x2160) @ 60 Hz or UHD (3840 x 2160) @ 60 Hz with 4:4:4 chroma sampling
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through.
• HDCP 2.3 compliant with user-selectable authorization — Ensures display of content-protected media and interoperability with other HDCP-compliant devices. Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• Selectable output format — Allows the output video format and color space to be manually configured.
• Automatic HDMI input cable equalization — Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low quality cables, or source devices with poor signal output.
• Comprehensive, real-time status LED indicators for troubleshooting and monitoring — Front panel LEDs verify the presence of HDMI input and output signals, HDCP authentication, and the de-embedded audio format.
• Easy setup and commissioning with Extron’s PCS - Product Configuration Software — Conveniently configure multiple products using a single software application. SIS also available.
• 600 MHz pixel clock — Industry's highest pixel clock for cutting edge performance
• Independent muting for audio and video
• Rack-mountable 1" (2.5 cm) high, quarter rack width metal enclosure
• Includes LockIt® HDMI cable lacing brackets
• External Extron Everlast™ power supply included, replacement part #70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption. This power supply is compatible with the ZipClip 100 Mounting Kit.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

HAE 100 4K PLUS
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, HDCP 2.3
Max. video data rate	18.0 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
HDMI input
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range	4K (4096x2160) @ 60 Hz, UHD (3840x2160) @ 60 Hz
Color bit depth	8, 10, or 12 bits – subject to the maximum data rate
Formats	RGB and YCbCr digital video
Standards	HDMI 2.0, DVI 1.0, HDCP 2.3
Video Input
Number/signal type	1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)
Connectors	1 female HDMI type A
Horizontal frequency	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 240 Hz for resolutions up to 18 Gbps
Video Output
Number/signal type	1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)
Connector	1 female HDMI type A
Audio
S/N	>90 dB, balanced, at maximum input
Audio Input
Number/signal type	1 embedded digital audio from HDMI
Embedded audio formats	LPCM 2.0, Dolby Digital 2.0, Dolby Digital 2.0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS ES Matrix 6.1, DTS ES Discrete 6.1
Connector	1 female HDMI type A
Audio output — analog
Number/signal type	1 stereo/mono balanced/unbalanced
Connector	(1) 3.5 mm captive screw connector, 5-pole
Impedance	50 ohms unbalanced, 100 ohms balanced
Maximum level	>+12 dBV balanced, +6 dBV unbalanced
Audio output — S/PDIF
Number/signal type	1 S/PDIF
Connector	1 female RCA jack (tip, ring)
Impedance	75 ohms
Control/remote
USB control port	1 front panel female mini USB, type B
USB standards	USB 2.0, high speed
Program control	Extron Simple Instruction Set (SIS™), Extron PCS
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	4.0 watts
Device and power supply	4.7 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	12.6 BTU/Hr
Device and power supply	14.8 BTU/Hr
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 6.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 15.2 cm D) (Depth excludes connectors)
Product weight	0.57 lbs. (0.26 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with appropriate requirements of RoHS and WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6076-D4)
