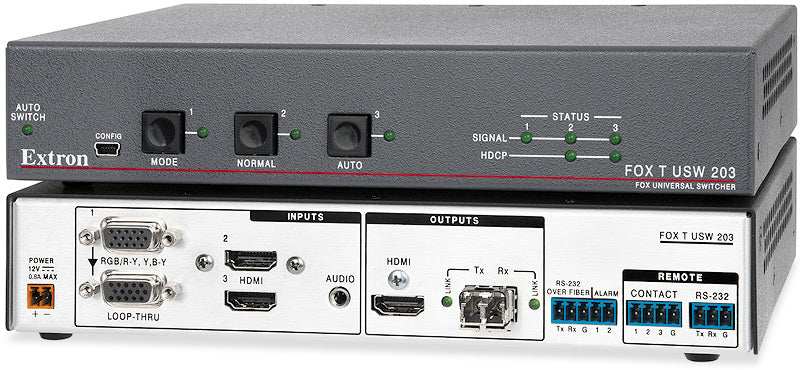

Extron FOX T USW 203 Fiber Optic Transmitter

Product Description

The Extron FOX T USW 203 is a three-input switcher with a buffered HDMI output and an integrated fiber optic transmitter, engineered to switch and extend HDMI, RGBHV, and HD component video sources along with stereo audio and RS-232 control over long-distance fiber optic cabling. As a commercial-grade Extron FOX Series fiber optic extender, this transmitter pairs with a compatible FOX Series fiber optic receiver to move signals far beyond the reach of copper cabling while providing immunity to electromagnetic interference.

Using Extron all-digital technology, the FOX T USW 203 delivers pixel-for-pixel transmission of computer and video signals up to 1920x1200, including HDTV 1080p/60. It accepts three switchable inputs, embeds analog stereo audio onto the fiber link, and includes a VGA input loop-out plus a buffered local HDMI output so a source can drive a local display while it is simultaneously extended to a remote display or projector. Extron EDID Minder and Key Minder manage EDID communication and HDCP authentication across connected devices for reliable, repeatable switching.

This three-input HDMI fiber optic switcher is well suited to lecture halls, auditoriums, houses of worship, corporate boardrooms, and command-and-control environments where multiple presentation sources must be selected and sent to a distant display. Auto-input switching, audio embedding with gain and attenuation, and real-time system monitoring streamline day-to-day operation, while RS-232 supports control integration with an Extron control processor or third-party control system. Browse the full Extron collection at Creation Networks for compatible receivers and fiber accessories.

Key Features

• Three Switchable Inputs — The FOX T USW 203 selects among three sources and transmits HDMI, RGBHV, or HD component video over a single fiber optic link.
• Long-Haul Fiber Optic Transmission — All-digital fiber transmission extends signals far beyond copper limitations to a compatible Extron FOX Series fiber optic receiver while rejecting electromagnetic interference.
• Resolutions Up To 1920x1200 — The transmitter provides pixel-for-pixel performance for computer and video signals up to 1920x1200, including HDTV 1080p/60.
• Buffered Local HDMI Output — A buffered HDMI output drives a local display simultaneously with the extended remote display, removing the need for a separate distribution amplifier.
• VGA Input Loop-Out — A VGA loop-out lets a computer input signal be monitored locally without additional hardware.
• Embedded Stereo Audio — Analog stereo audio is embedded onto the fiber link with adjustable gain and attenuation for matched levels at the display end.
• EDID Minder And Key Minder — Extron EDID Minder automatically manages EDID communication and Key Minder maintains HDCP authentication between connected devices.
• RS-232 Control And Monitoring — Bidirectional RS-232 and real-time system monitoring support integration with Extron and third-party control systems.
• Compact Half-Rack Enclosure — The 1U high, half-rack-width metal enclosure mounts easily in a rack or under a table and uses an external universal AC power supply.

Technical Specifications

Frequently Asked Questions

What does the FOX T USW 203 do?

It is a three-input switcher with an integrated fiber optic transmitter that selects among three sources and extends HDMI, RGBHV, or HD component video, stereo audio, and RS-232 over fiber optic cabling to a compatible Extron FOX Series fiber optic receiver.

What is the maximum resolution it supports?

The transmitter provides pixel-for-pixel transmission of computer and video signals up to 1920x1200, including HDTV 1080p/60. It is not a 4K device.

What receiver do I need to complete the link?

The FOX T USW 203 must be paired with a compatible Extron FOX Series fiber optic receiver at the display end. The part number 60-1230-11 is the multimode (MM) version, so it requires multimode fiber and a multimode receiver.

How far can it transmit?

The multimode model supports runs up to 2 km (1.25 miles) over OM3 or OM4 laser-optimized multimode fiber, while the singlemode variant extends up to 30 km.

Can it integrate with a control system?

Yes. The unit includes RS-232 for integration with Extron control processors or third-party control systems, along with EDID Minder, Key Minder, and real-time system monitoring for reliable operation.

Does Creation Networks offer support and warranty?

Yes. This unit is sold through Creation Networks with manufacturer warranty coverage and AV integration support. Contact our team for help selecting the matching FOX Series receiver and fiber for your deployment.
