Extron Flex55 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail Flex55 Module Black
Extron Flex55 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail Flex55 Module Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron Flex55 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pi...

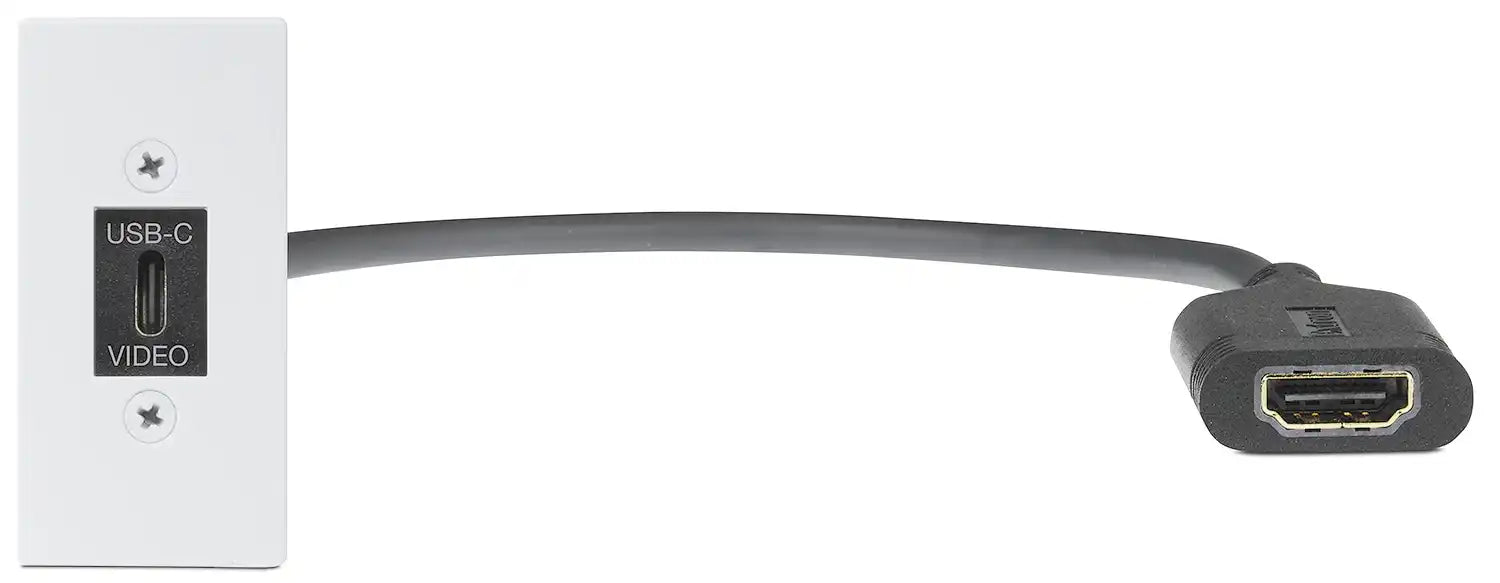

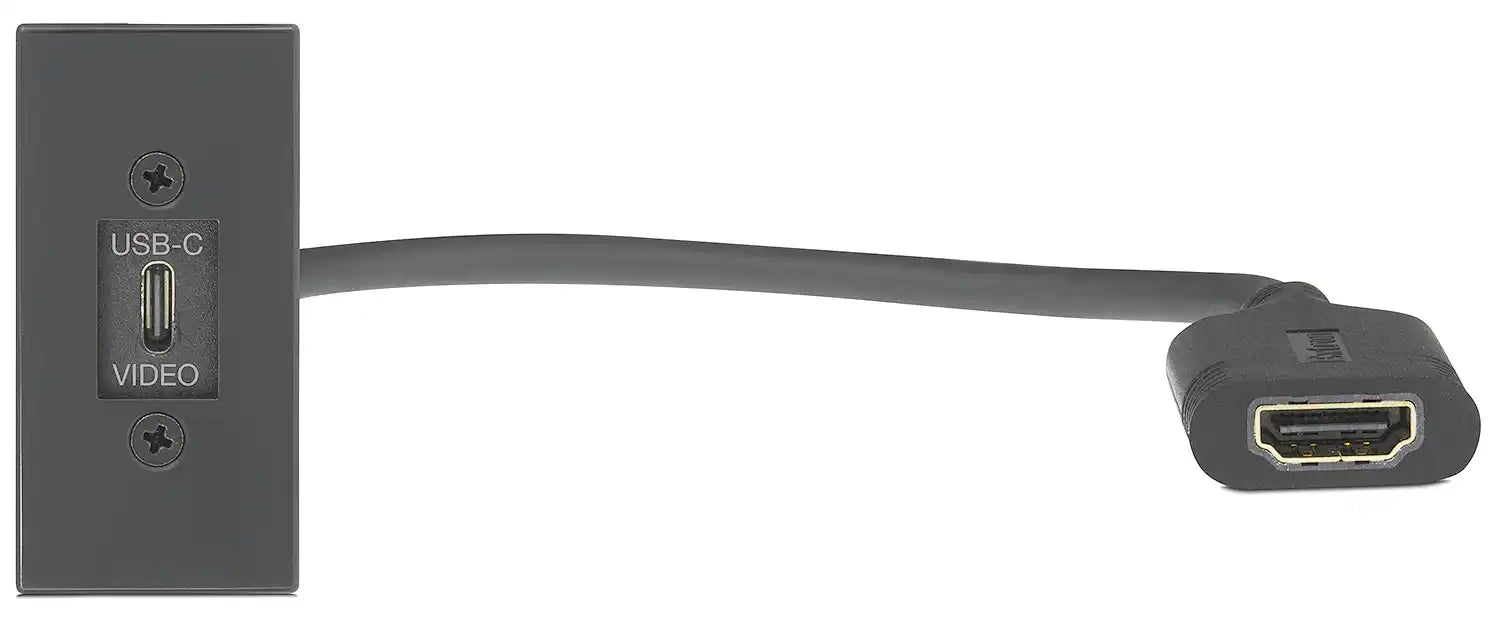

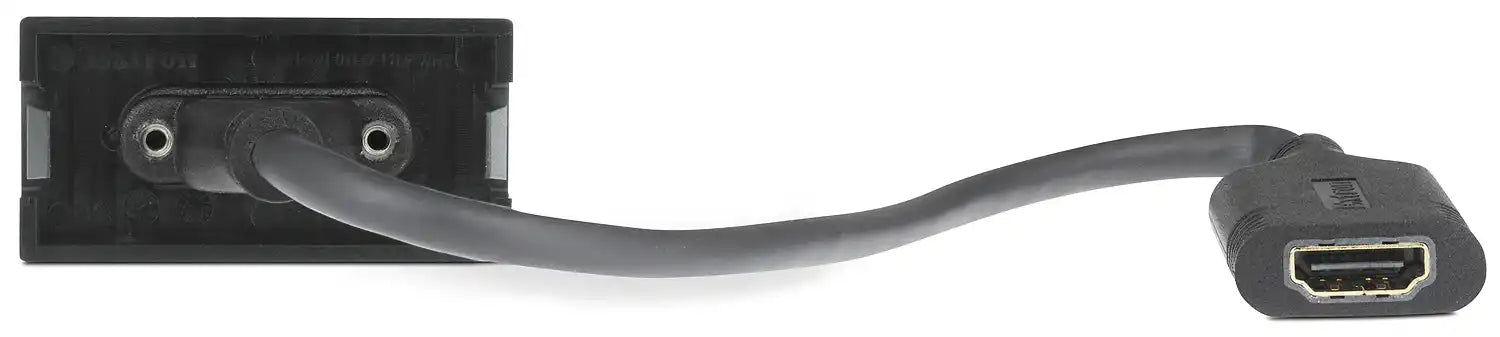

Extron Flex55 1USBCFHDMI F-10 is a half-size Flex55 AV Connectivity Module featuring one USB-C female to HDMI female connector on a pigtail. This passive pass-through design enables USB-C sources supporting DisplayPort Alt Mode to connect directly to HDMI displays and peripherals, delivering high-resolution video with embedded audio. It passes EDID for automatic display compatibility, HDCP for protected content, and audio information between source and display. The mountable plate construction ensures secure, durable integration into architectural environments for professional installations.
This module is ideal for conference rooms, classrooms, lecterns, table boxes, wall plates, and EU junction box applications where modern USB-C equipped laptops, tablets, or mobile devices require seamless video output to HDMI projectors, monitors, or displays alongside AV systems. The pigtail allows flexible routing in furniture or behind-panel setups, while compatibility with Extron Flex55 enclosures and mounting kits supports clean, modular architectural AV deployments without active conversion or external power.
Features Chart
| Feature | Benefit |
|---|---|
| Half-size Flex55 form factor | Compact fit into Flex55 plates, enclosures, and EU boxes for space-efficient installations |
| USB-C female to HDMI female pigtail | Connects USB-C sources (with DisplayPort Alt Mode) directly to HDMI displays and peripherals |
| Supports 4K/60 @ 4:4:4 | Delivers high-resolution video with full chroma subsampling for sharp, detailed output |
| Passes EDID, HDCP, and audio | Ensures seamless display recognition, content protection, and embedded multi-channel audio |
| Pigtail configuration | Provides flexible cable routing and reach for architectural or furniture-integrated applications |
| Mountable plate design | Ensures secure, professional mounting and long-term durability in AV environments |
| Pass-through design | Maintains signal integrity with no latency, power requirements, or active processing |
| Flex55 series compatibility | Integrates seamlessly with Extron Flex55 enclosures, plates, and mounting kits |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One USB-C Female to HDMI Female on pigtail |
| Form Factor | Half-size Flex55 module |
| Mounting | Mountable plate |
| Video Resolution | Up to 4K/60 @ 4:4:4 |
| Signal Support | DisplayPort Alt Mode over USB-C to HDMI (passes EDID, HDCP, embedded audio) |
| Type | Pass-through |
| Compatibility | Extron Flex55 enclosures, Flex55 plates, EU junction boxes with Flex55 Mounting Kits; USB-C sources with DisplayPort Alt Mode |
| Signal Type | USB-C to HDMI video/audio pass-through |
| Size | Half Size |
Compare Chart
| Aspect | Extron Flex55 1USBCFHDMI F-10 | Extron 1USBCFHDMI F-10 | Extron 2USBCFHDMI F-10 |
|---|---|---|---|
| Primary Connectors | USB-C F to HDMI F pigtail | USB-C F to HDMI F pigtail | USB-C F to HDMI F pigtail |
| Video Support | 4K/60 @ 4:4:4 via DP Alt Mode | 4K/60 @ 4:4:4 via DP Alt Mode | 4K/60 @ 4:4:4 via DP Alt Mode |
| USB/Data Support | None (video-focused) | None (video-focused) | None (video-focused) |
| Form Factor | Half-size Flex55 | Single Space MAAP Mini | Single Space AAP |
| Mounting System | Flex55 enclosures/EU boxes | MAAP frames/enclosures | AAP frames/enclosures |
| Unique Feature | Flex55 compact USB-C to HDMI | MAAP Mini USB-C to HDMI | AAP USB-C to HDMI |
| Ideal For | Space-efficient USB-C to HDMI | MAAP Mini installations | Standard AAP USB-C to HDMI |
| Resolution Capability | Up to 4K/60 | Up to 4K/60 | Up to 4K/60 |
FAQ
- What sources does this module support? It works with USB-C sources that include DisplayPort Alt Mode, enabling video output to HDMI displays.
- What resolutions and features are supported? It handles up to 4K/60 @ 4:4:4, passing EDID for display compatibility, HDCP for protected content, and embedded audio.
- Which mounting systems are compatible? It fits Extron Flex55 enclosures, Flex55 plates, and EU junction boxes using Flex55 Mounting Kits.
- Does it require power or active components? No, it is a passive pass-through module with no electronics or power needs.
- Why use a pigtail design? The pigtail provides flexibility for routing in tight spaces, behind furniture, or in architectural integrations.
- Is it suitable for professional AV installations? Yes, the Flex55 form factor and mountable plate ensure durable, reliable performance in conference rooms, classrooms, and fixed AV environments.
