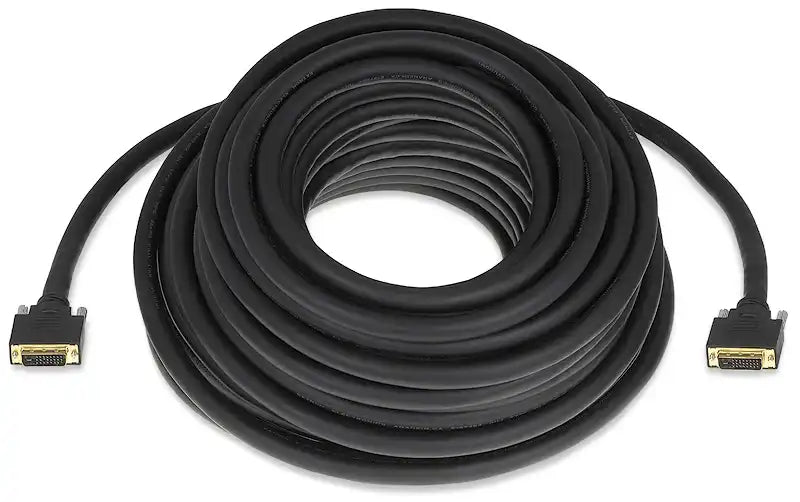

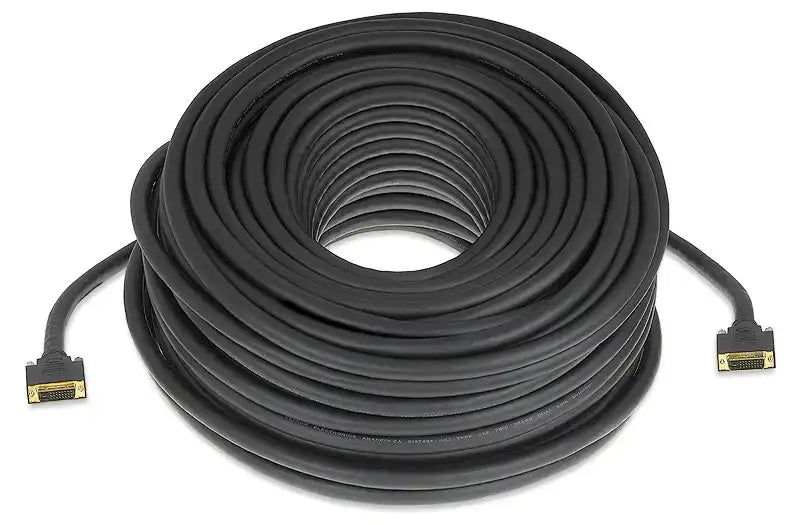

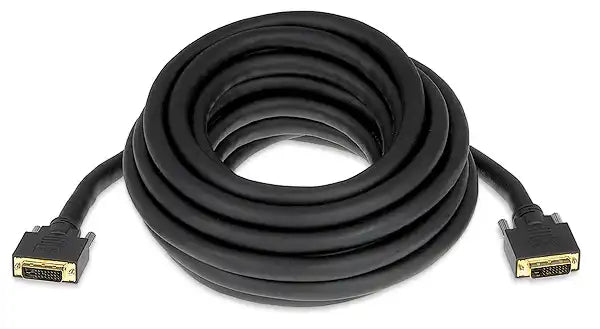

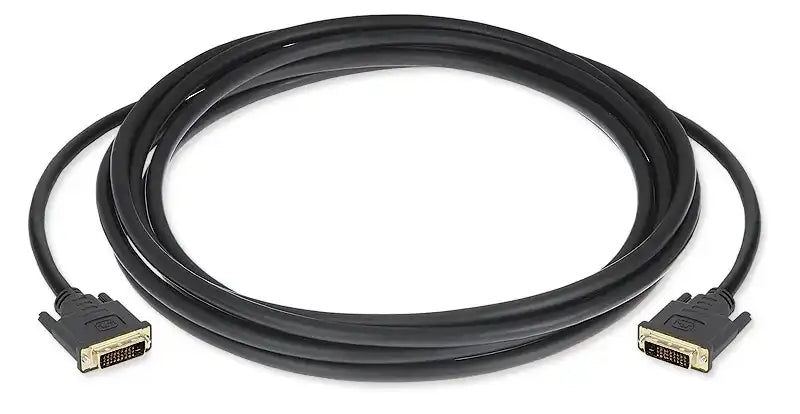

Extron DVI-DDL Dual Link DVI Male to Male Cables 75' (22.8 m)
Extron DVI-DDL Dual Link DVI Male to Male Cables 75' (22.8 m) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron DVI-DDL Dual Link DVI Male to Male Cables 75' (22.8 m)
The Extron DVI-DDL Series cables provide high-performance, dual-link DVI-D interconnection for digital video signals between DVI-equipped sources and displays. Supporting resolutions up to 2560x1600 @ 60 Hz and 1080p @ 60 Hz with full 9.9 Gbps bandwidth per link, these cables deliver pixel-perfect, uncompressed digital video transmission without signal degradation or artifacts. Ideal for professional AV installations requiring maximum bandwidth for high-resolution graphics, medical imaging, CAD workstations, large-format displays, or dual-link DVI applications in control rooms, broadcast facilities, conference systems, and education environments.
Constructed with 28 AWG copper conductors, triple shielding for superior EMI/RFI rejection, and gold-plated DVI-D male connectors on both ends, the cables ensure reliable, long-term performance and secure connections. Available in lengths from 3 feet (0.9 m) to 50 feet (15.2 m), they offer flexibility for short desktop runs or extended room-to-room installations while maintaining signal integrity through robust build quality and precise impedance matching.
Features Chart
| Feature | Benefit |
|---|---|
| Dual-Link DVI-D Connectors | Supports high-bandwidth digital video up to 2560x1600 resolution |
| Up to 2560x1600 @ 60 Hz Support | Enables crisp, high-resolution output for demanding applications |
| Triple Shielded Construction | Minimizes electromagnetic interference for clean signal transmission |
| Gold-Plated Contacts | Provides corrosion resistance and low-resistance reliable connections |
| 28 AWG High-Purity Copper | Maintains signal integrity over longer cable runs |
| Multiple Length Options | Accommodates various installation distances without excess cable |
| EDID and HDCP Pass-Through | Ensures proper display recognition and protected content handling |
| Professional AV-Grade Build | Designed for durability in continuous-use commercial environments |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | DVI-D Male (dual-link, 24+5 pins) on both ends |
| Cable Type | Dual-link DVI-D digital video |
| Available Lengths | 3' (0.9 m), 6' (1.8 m), 10' (3.0 m), 15' (4.6 m), 25' (7.6 m), 35' (10.7 m), 50' (15.2 m) |
| Maximum Resolution | 2560 x 1600 @ 60 Hz; 1920 x 1200 @ 60 Hz; 1080p @ 60 Hz |
| Bandwidth | Up to 9.9 Gbps per link |
| Wire Gauge | 28 AWG copper |
| Shielding | Triple shielded (foil + braid) |
| Applications | High-resolution digital video interconnection |
| Compatibility | Dual-link DVI-D sources and displays |
Compare Chart
| Aspect | Extron DVI-DDL Series | Belden DVI Dual-Link Cables | Kramer DVI-DM/DM Series |
|---|---|---|---|
| Max Resolution | 2560x1600 @ 60 Hz | 2560x1600 @ 60 Hz typical | 2560x1600 @ 60 Hz |
| Length Range | 3' to 50' | Up to 50'+ in some models | Up to 50' |
| Shielding | Triple shielded | Triple or quad shielded | Double/triple shielded |
| Connector Plating | Gold-plated | Gold-plated | Gold-plated |
| Wire Gauge | 28 AWG | 28-24 AWG variants | 28 AWG typical |
| Primary Use | Professional AV installations | Broadcast/high-res graphics | General pro AV |
| EDID/HDCP Support | Yes | Yes | Yes |
| Build Durability | High for commercial use | High | High |
FAQ
- What is the maximum resolution supported by the DVI-DDL cables? They support up to 2560x1600 @ 60 Hz on dual-link DVI, as well as standard HD resolutions like 1920x1200 and 1080p @ 60 Hz.
- What lengths are available for the DVI-DDL Series? Lengths range from 3' (0.9 m) to 50' (15.2 m) to suit short desktop connections or longer room-spanning installations.
- Do these cables support single-link DVI devices? Yes, they are backward compatible with single-link DVI, though maximum resolution is limited to single-link capabilities (typically 1920x1200).
- Are EDID and HDCP passed through? Yes, the cables provide full EDID and HDCP pass-through for proper source-display communication and protected content support.
- Why choose triple shielding in these cables? Triple shielding (foil plus braid) reduces EMI/RFI interference, ensuring stable, noise-free video transmission in professional environments.
- Are these cables suitable for permanent in-wall installations? They are general-purpose interconnect cables; for in-wall or plenum-rated needs, consider Extron plenum versions or consult local codes.
