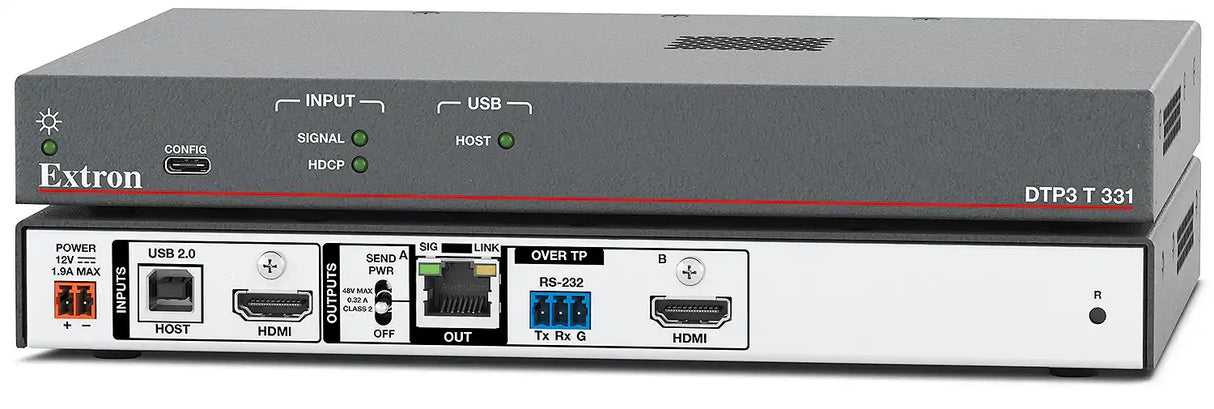

Extron DTP3 T 331 HDMI 4K/60 and USB Data Tx - 330 feet (100 m) - 60-2092-52

The DTP3 T 331 is a long-distance, digital twisted pair transmitter for sending HDMI, USB 2 data, audio, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It provides one HDMI input, one USB host port, and a mirrored HDMI output. The transmitter supports video resolutions up to 4K/60 at 4:4:4 color sampling, EDID Minder^®, and HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The low-profile enclosure and remote power capability make the DTP3 T 331 ideal for discreet placement within lecterns, beneath tables, or wherever needed to meet application requirements.

The DTP3 T 331 transmitter enables the reliable, long-distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps, supporting HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. DDC communication of EDID and HDCP is continuously maintained between source and display, which ensures optimal signal transmission between devices. The DTP3 T 331 transmitter can be used with a DTP3 R 331 receiver in point‑to‑point USB extension applications and is compatible with other DTP3-enabled products.

USB Signal Extension

The DTP3 T 331 transmitter supports High-Speed USB 2 data. It is compatible with USB 3 devices that can operate at USB 2 data rates. Integrated USB signal extension enables connection to peripheral devices over the same twisted pair cable as HDMI signals.

Features that Streamline Integration

To enhance and simplify integration of HDMI devices and to help ensure optimal system performance, the DTP3 T 331 features Extron EDID Minder. This technology automatically manages EDID by maintaining continuous EDID communication with the source, ensuring that the source powers up properly and reliably provides content for display.

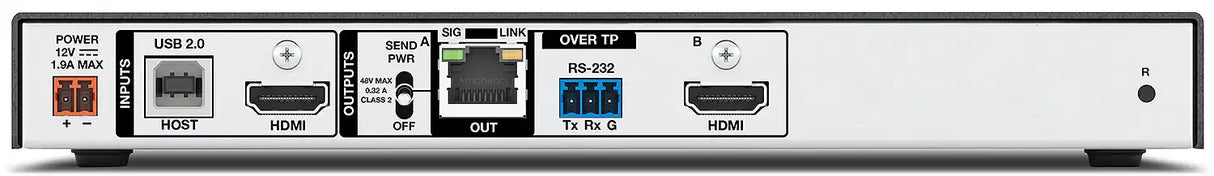

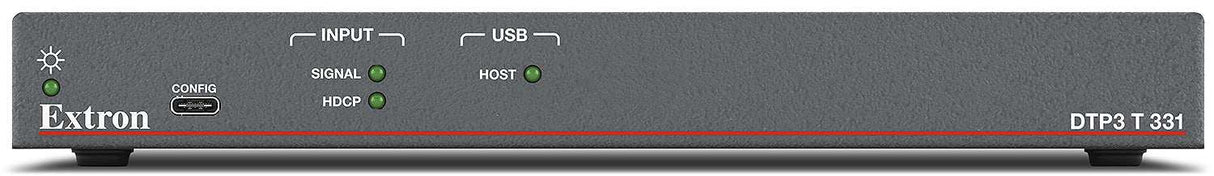

Front panel LED indicators provide immediate visual confirmation of signal presence for the HDMI and USB host inputs, HDCP status, and power. On the rear panel, a mirrored HDMI output can drive a local monitor.

Convenient Control and Power

The DTP3 T 331 provides many other integrator-friendly features designed to help simplify installation. It supports simultaneous transmission of bidirectional RS-232 from a control system for AV device control. Bidirectional RS-232 control signals can be transmitted alongside the AV signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C® configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 T 331 is made simple with Extron’s PCS - Product Configuration Software. The user-friendly GUI is amazingly easy to navigate. This software application allows for expedited setup, commissioning, and real-time operation and monitoring.

The transmitter can be remotely powered by a DTP3-enabled product over the shielded twisted pair cable. In addition, it can be configured to provide power to the connected receiver, enabling both devices to share one power supply. It is housed in a 1" (2.5 cm) high, half rack width metal enclosure. The low-profile design allows for discreet placement in tight spaces.

To ensure optimal performance, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.

The DTP3 T 331 is ideal for a wide variety of environments requiring extension of HDMI, audio, High-Speed USB data, and control signals, including courtrooms, conference and meeting spaces, classrooms, lecture halls, and houses of worship.

Features

• Transmits HDMI, USB data, control, and audio up to 330' (100 m) over a shielded CAT 6A cable — The DTP3 T 331 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K — Support of 4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.
• USB 2 extension — Built-in USB 2 extension facilitates connection to peripheral USB devices over the same cable as video and audio. Ideal for remote connectivity for USB cameras or storage devices.
• Supports ultra-wide aspect ratios, including 21:9 and 5K
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• Remote power capability with DTP3 products — For simplified installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT 6A shielded twisted pair cable — CAT 6A shielded twisted pair cabling is recommended for optimal performance.
• HDMI input loop-out — The DTP3 T 331 features a simultaneous HDMI output for local monitor support or system expansion.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• Support for HDR – High Dynamic Range video — The DTP3 T 331 enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• Bidirectional RS-232 pass-through for AV device control — Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• Supports multiple embedded audio formats — Compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Supports USB 2 devices and USB 3 devices that can operate at USB 2 data rates up to High-Speed — Provides USB extension, allowing connection to peripheral devices over the same CAT 6A cable as video and audio.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP‑compliant device. Protected material is not passed in non‑HDCP mode.
• Front panel USB-C^® configuration port — Provides convenient access for information and firmware updates.
• LED indicators for signal presence, power, and link status — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ-45 signal and link LED indicators for DTP port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• 1" (2.5 cm) high, half rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.
• Patented ZipClip^® 400 mounting kit included — Enables easy and secure mounting on a variety of surfaces.
• Includes LockIt^® Plus cable lacing brackets — Securely fastens HDMI or USB-C^® cables to a device, eliminating risk of disconnection.
• External Extron Everlast™ power supply included, replacement part # 70‑1259‑01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

DTP3 T 331
Max. 4K and 5K Capabilities Resolution and Refresh Rate Chroma Sampling Max. Bit Depth per Color 5120x1440 at 60 Hz 4:4:4 8 bit 5120x2880 at 30 Hz 4096x2160 at 60 Hz 3840x2160 at 60 Hz 4096x2160 at 30 Hz 12 bit 3840x2160 at 30 Hz 4096x2160 at 60 Hz 4:2:0 3840x2160 at 60 Hz
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, HDCP 1.x, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Ultra Wide & 5K	2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz
NOTE     *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration.
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
Color bit depth	8, 10 or 12 bits
Formats	RGB and YCbCr digital video
HDR	HDR10, HDR10+, Dolby Vision
Standards	DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any HDR system. There are several HDR formats in use by source and display manufacturers. The level of HDR product support is governed by pixel clock, signal format, and signal communication between source and sink devices. Please contact an Extron Application Engineer for more information.
Video input
Number/signal type	1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapter)
Connector	1 female HDMI type A
Interconnection between transmitter and receiver
Connector	1 female RJ-45 per unit
Termination standard	TIA/EIA T568B
Signal transmission distance (using XTP DTP 24 cable)
1080p @ 60 Hz	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60Hz (1)	Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3') Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
4K/UHD @ 60Hz (2)	Up to 175’ (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair) cable
Signal transmission distance (using XTP DTP 22 cable)
1080p @ 60 Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 60Hz (1)(2)	Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with two 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4') Using two punch downs with two 3' (0.9 m) to 8' (2.4 m) patch cables
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, STP (shielded twisted pair) cable
NOTE     Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance.
NOTE     (1) With coupler(s), (2) No couplers
Video output
Number/signal type	1 single link HDMI or DVI-D* (loop through) 1 DTP3 (output)
Connector	1 female HDMI (loop through) 1 female RJ-45 jack
Audio
Gain	Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response	20 Hz to 20 kHz, +0.5 d
THD+Noise	0.03% @ 20 Hz to 20 kHz at maximum output
S/N	>90 dB, at maximum output (15 dBu), balanced (unweighted)
Stereo channel separation	>80 dB @ 1 kHz to 20 kHz
Audio input
Number/signal type	1 digital embedded audio on HDMI
Connectors	1 female HDMI
USB
USB Max data rates	Up to high speed (480 Mbps)
Data transfer types	Bulk, control, interrupt, and isochronous
USB host
Number/signal type	1 USB 2.0
Connector	1 female USB type B
USB Host support	xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
Control/Remote
USB control port	1 front panel, female USB type C
USB standards	USB 2.0, low speed
Program control	Extron Simple Instruction Set (SIS™), Extron Product Configuration Software (PCS)
Control/Remote — external device (RS-232 Over TP)
Serial control pass-through port	1 RS-232, 3.5 mm, 3-pole captive screw connector
Baud rate and protocol	300 to 115200 baud 7 or 8 data bits 1 or 2 stop bits No parity (default), even or off parity
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = Gnd
NOTE     Protocol is mirrored between the connected DTP3 Rx endpoints and the "Over TP." Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and send to the individual DTP3 endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 insertion from any DTP3 control port to the "Over TP" ports.
General
Power supply	External (included with Tx) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 2.0 A, 24 watts
Power consumption
Device	TBD watts
Device and power supply	TBD watts
Remote power budget	18.0 watts
NOTE     The transmitter can be powered either locally by an external power supply or remotely by a receiver on the other end of the twisted pair cable.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on top and sides
Thermal dissipation
Device	TBD BTU/hr
Device and power supply	TBD BTU/hr
Mounting
Rack mount	Optional 1U high rack shelf or included ZipClip 400 mounting kit
Furniture	Optional under-desk mount kit or included ZipClip 400 mounting kit
Enclosure type	Metal
Enclosure dimensions	1.0” H x 8.75” W x 6.0” D (half rack wide) 25mm H x 222mm W x 152mm D) (Depth excluded connectors)
Product weight	TBD lbs (TBD kg)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%. Specifications are subject to change without notice.
(6509-D1)
