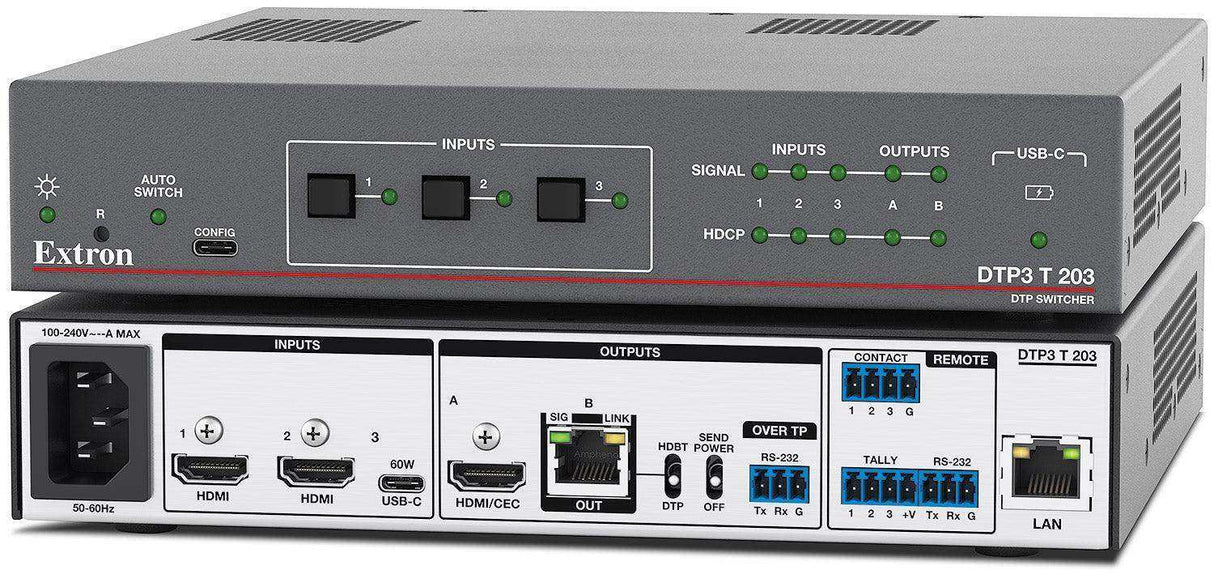

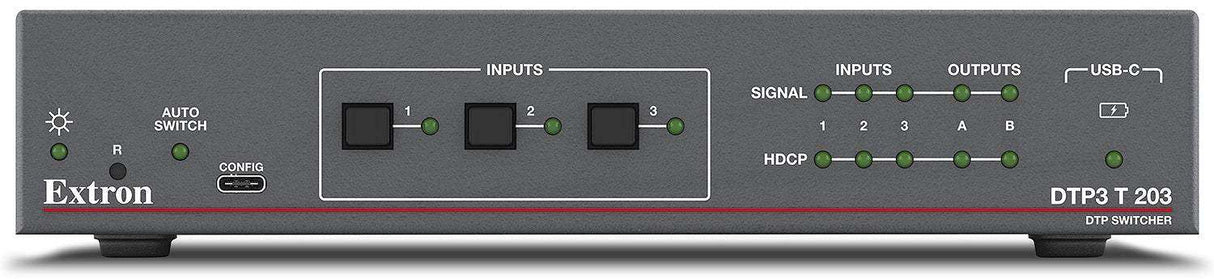

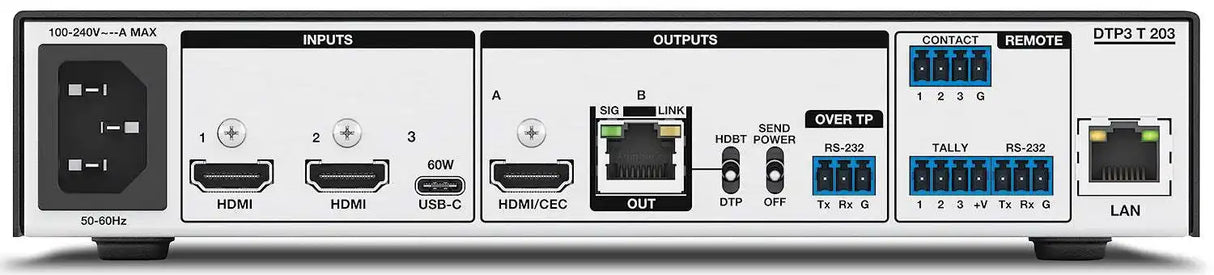

Extron DTP3 T 203 Three Input 4K/60 Switcher with Integrated DTP3 Transmitter

The Extron DTP3 T 203 is a three-input transmitter for sending USB-C^® video, HDMI, and control up to 330 feet (100 meters) over a shielded CAT6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. Dual buffered HDMI and DTP outputs, 60 W of USB-C charging, and Ethernet remote control facilitate integration in professional environments. Integrator-friendly features include EDID Minder^®, auto-switching between inputs, and bidirectional RS‑232 pass-through for remote AV device control. The standard half rack width enclosure of the DTP3 T 203 transmitter enables discreet placement within lecterns, beneath tables, or wherever needed to meet application requirements.

The DTP3 T 203 provides reliable switching and transmission of USB‑C and HDMI video at data rates up to 18 Gbps. For simplified operation, it can automatically switch between the sources. The DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals, to an HDBaseT™‑enabled display.

Comprehensive EDID Management

To ensure professional AV systems perform as designed, it is crucial that EDID communication between video sources and sink devices is managed correctly. Correct management of EDID allows source equipment to send video and audio signals in formats and parameters that best match display device capabilities. Mishandling of EDID could result in suboptimal image quality, no image, and/or poor sound. The DTP3 T 203 offers a suite of Extron-exclusive tools and capabilities for complete control over EDID management. The EDID Minder technology offers a library of EDID files that can be applied to any video input. Additional EDID can be captured from connected displays or uploaded by the user. EDID Manager 2.1 is a freely downloadable Windows^® utility for viewing and editing EDID files. This software enables video format optimization, color sampling and bit depth manipulation, and adjustment to audio capabilities. Edited files may be saved, added to the library, and easily applied to devices within the system.

Features that Streamline Integration

The DTP3 T 203 automatically adjusts color bit depth based on the display EDID to prevent color compatibility conflicts between a source and the display. Front panel LED indicators provide immediate visual confirmation of HDCP authentication and signal presence for each input and the output. If HDCP-encrypted content is transmitted to a non‑compliant display, a full-screen green signal indicates that protected content cannot be viewed on that display.

The DTP3 transmitter provides other convenient, integrator-friendly features designed to help simplify installation. It can be set to pass embedded digital audio and supports simultaneous transmission of bidirectional RS‑232 signals from a control system for AV device control. The mirrored HDMI output supports dual display applications, enabling signal distribution to a local monitor and a remote endpoint. The unit can deliver up to 60 W of power over USB‑C to charge a laptop or other personal device. Alternatively, it can be configured to send power to the connected DTP3 receiver and simultaneously provide 45 W for USB‑C charging.

Convenient control options include front panel control, RS‑232, Ethernet, and contact closure with tally output. Configuration of the DTP3 T 203 is easy with Extron’s PCS - Product Configuration Software, which provides a user-friendly GUI that is straightforward to navigate. This software application enables expedited setup and commissioning, real-time operation and monitoring, plus the ability to configure several units in the same session. In addition, internal Web pages provide system status and setting pages for device monitoring and troubleshooting using a standard browser.

Extron recommends Extron-certified XTP DTP 22 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The cable is certified to 475 MHz and utilizes an SF/UTP design with four unshielded 22 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Features

• Transmits USB-C^® video, HDMI, and control up to 330' (100 m) over a shielded CAT6A cable — The DTP3 T 203 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Inputs: One USB-C, two HDMI
• Output: One DTP3 twisted pair output on RJ‑45, one mirrored HDMI
• Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.
• Provides up to 60 watts of power to the USB‑C source — Supports USB Power Delivery to negotiate power to the USB‑C device. When configured for DTP3 remote power, USB‑C power delivery is 45 watts.
• Auto-switching between inputs — Auto‑switching allows for intuitive operation in collaboration spaces. Multiple switching priority modes are available, including last-connected input and user-selectable priority.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, HD lossless audio formats, and CEC
• Remote power capability — For simplified installation, the transmitter can be configured to provide power to a connected DTP3 receiver.
• Connects USB‑C sources that support DisplayPort Alt Mode
• DTP3 output is compatible with HDBaseT-enabled devices — The DTP3 output can be configured to send video and bidirectional RS‑232 signals to an HDBaseT-enabled display.
• HDCP 2.3 compliant — Ensures display of content-protected 4K video and maintains interoperability with earlier versions of HDCP.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT6A shielded twisted pair cable
• Support for HDR – High Dynamic Range Video — The DTP3 T 203 enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• Bidirectional RS‑232 pass‑through for AV device control — Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• RS‑232 insertion from the Ethernet control port — Saves system resources and simplifies installation by enabling a control processor to access remote RS‑232 devices over Ethernet.
• CEC insertion — A control processor can insert CEC commands via SIS - Simple Instruction Set, to control devices connected at the HDMI output.
• Supports multiple embedded audio formats — The DTP3 T 203 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• Compatible with DTP receivers and DTP‑enabled products — Enables mixing and matching with desktop and wallplate extenders, as well as other DTP‑enabled products to meet application requirements. Not compatible with DTP2 products.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP‑compliant device. Protected material is not passed in non-HDCP mode.
• Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.
• HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non‑compliant display — A full‑screen green signal is sent when HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
• HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames and sets the correct color space for proper connection to HDMI and DVI displays.
• Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.
• Output muting control — Provides the capability to mute the video and/or audio output at any time.
• Front panel security lockout — This feature locks out all front panel functions; all settings however, are available through USB or Ethernet.
• Ethernet monitoring and control — Enables control and proactive monitoring over a network.
• Built‑in Web pages — Enables the use of a standard browser for device monitoring over a Web interface.
• Contact closure remote control with tally output — Allows for remote selection of an input channel, while a tally output provides +5 VDC to light an LED to indicate the currently selected input.
• Compatible with TeamWork^® Show Me^® Cables — Show Me cables provide convenient connectivity and user input selection and control for TeamWork Collaboration Systems. Visit the TeamWork System Builder to create a customized system for your collaboration environment.
• Front panel USB-C configuration port — Provides convenient access for information and firmware updates.
• LED indicators for HDCP, signal presence, and USB‑C charging — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ-45 signal and link LED indicators for DTP3 port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• Half rack width metal enclosure — With a compact enclosure, the device can be installed discreetly wherever needed.
• Includes LockIt^® HDMI cable lacing brackets
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

Also see our  Specs in PDF format

DTP3 T 203
Specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4 or 4:2:2
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range
HDMI
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Ultra Wide & 5K	2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 30 Hz, 5120x1440* @ 30 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz
NOTE     *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration.
USB-C
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 240 Hz or 4K @ 6Hz (4:4:4 subsampling)
Ultra Wide	2560x1080, 3440x1440, 3840x1080, 3840x1600
Color bit depth	8, 10, or 12 bits
Formats	RGB and YCbCr digital video
HDR	HDR10, HDR10+, Dolby Vision
Standards	DVI 1.0, HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 1.x, HDCP 2.3
Video Input
Number/signal type	2 HDMI, 1 DisplayPort (Alt Mode, 4 HBR2 lanes)
DisplayPort video	1 DisplayPort Alt mode, DP 1.2 (4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps
Connectors	2 female HDMI type-A, 1 female USB type-C
Input cable length	Up to 12' (3.7 m)
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
NOTE     Extron requires using USB-C cables supporting 4 DisplayPort lanes.
Video Output
Number/signal type	1 Single link HDMI (or DVI-D*), 1 DTP
Connector	1 female HDMI type-A, 1 female RJ-45
Output power for active cables	1.25 watts max for HDMI port
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Interconnection Between Transmitter and Receiver
Connector	1 female RJ-45 per unit
Termination standard	TIA/EIA T568B
Signal Transmission Distance (using XTP DTP 24 cable)
1080p @ 60 Hz	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz	Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler w/ 3'-9' patch cable Using 2 couplers w/ two 3' patch cables (each patch cable cannot exceed 3') Using two punch downs w/ two 3'-9' patch cables
4K/UHD @ 60 Hz	Up to 175' (53 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable w/ no couplers
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP cable
Signal Transmission Distance (using XTP DTP 22 cable)
1080p @ 60 Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 60 Hz	Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler w/ 3'-16' patch cable Using 2 coupler w/ two 4' patch cables (each patch cable cannot exceed 4')  Using two punch downs w/ 3'-8' patch cables
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, STP cable
NOTE     Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance.
Communications
Serial control port	1 RS-232, 3.5 mm captive screw, 3-pole, rear panel
Pin configuration	Pin 1 = Tx, pin 2 = Rx, pin 3 = GND
Baud rate and protocol	9600 baud, 8 data bits, 1 stop bit, no parity
USB control port	1 female USB type-C, front panel
USB standards	USB 2.0 low speed
Ethernet data rate	10/100Base-T, half/full duplex, with auto detect
Ethernet protocol	ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet, IEEE 802.1X, SSH
Program control	Extron control/configuration program for Windows®, Extron Simple Instruction Set™ (SIS™),Telnet
Contact closure/tally output	(2) 3.5 mm captive screw, 4-pole
General
Power supply	Internal Input: 100 to 240 VAC, 50-60 Hz
Power consumption	90.3 W
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	95.7 BTU/hr
USB-C power delivery	5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 15 VDC @ up to 3 A, 20 VDC @ up to 2.25 A or 20 VDC @ up to 3 A
NOTE     USB-C power delivery reduces to 45W when DTP3 Send Power feature is active.
Mounting
Rack mount	Yes, with optional rack shelf kit
Enclosure type	Metal
Enclosure dimensions	1.75" H x 8.75" W x 8.50" D (1U high, half rack wide) 44 mm H x 222 mm W x 152 mm D (Depth excludes connectors)
Product weight	2.17 lbs (0.98 kg)
Regulatory compliance	CE, c-UL, UL, CE**, C-tick, FCC Class A**, ICES, VCCI, AS/NZS, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice
(6349-D9)
