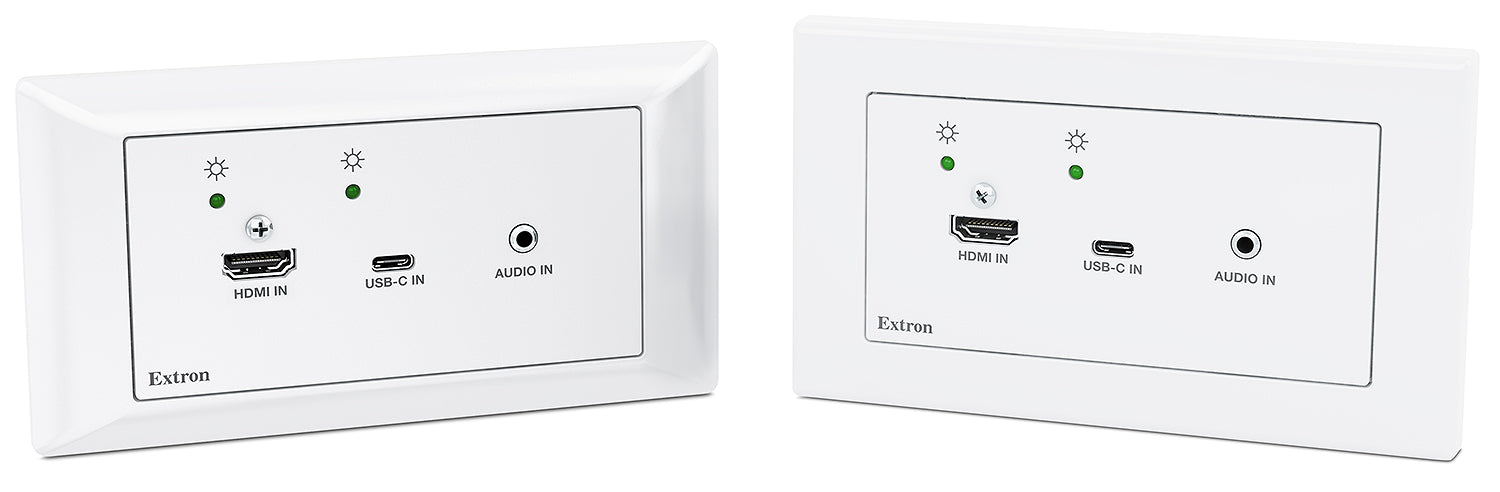

Extron DTP3 T 202 EU/MK – Two Input 4K/60 DTP3 EU/MK Wallplate Transmitter

Product Overview

DTP3 T 202 EU/MK (4K/60 USB-C and HDMI EU/MK Tx, 330 feet (100 m)), part number 60-1829-52. The Extron DTP3 T 202 EU/MK is a two-input wallplate transmitter for sending USB-C video, HDMI, power, audio, and control up to 330 feet (100 meters) over shielded CAT 6A cable. It is compatible with standard two-gang EU and MK-type junction boxes and supports video resolutions up to 4K/60 at 4:4:4.

Product Description

Most AV wallplate hardware is designed around the US single- and two-gang back box. On EU and MK-standard sites, that means either a custom plate, a surface-mount box that looks like an afterthought, or an adapter that compromises the finish.

The DTP3 T 202 EU/MK is built for those installations directly. It mounts in standard two-gang EU and MK-type electrical junction boxes and is compatible with Extron Flex55 enclosures, which is the usual route for architectural and furniture integration outside North America.

Functionally it is a full two-input DTP3 transmitter. A USB-C input supporting DisplayPort Alt Mode and an HDMI input share the plate, and video, audio, power, and control travel up to 330 feet over shielded CAT 6A. Video support reaches 4K/60 at 4:4:4, including 5K and ultra-wide formats such as 5120x1440 at 60 Hz.

An analog stereo audio input embeds a separate source into the digital stream, so a program feed or local microphone output reaches the rack on the same cable. For sites on the US back box standard, the DTP3 T 212 D and DTP3 T 322 D are the equivalent decorator-style models.

This listing is the DTP3 T 202 EU/MK configuration, part number 60-1829-52: 4K/60 USB-C and HDMI EU/MK Tx, 330 feet (100 m). Every part number in the DTP3 T 202 EU/MK family shares the same signal architecture and enclosure; the configuration determines which processing, control, and collaboration features ship in the unit.

Creation Networks supplies the full DTP3 T 202 EU/MK range, so a design can be quoted across configurations before the specification is locked. Contact us for project pricing and current lead time.

Key Features

• EU and MK box compatible — Mounts in standard two-gang EU and MK-type electrical junction boxes for installations outside the US back-box standard.
• Flex55 compatible — Works with Extron Flex55 enclosures for architectural and furniture integration.
• Two inputs — A USB-C input and an HDMI input on one plate cover both modern and legacy sources.
• 330 foot extension — Sends video, audio, power, and control up to 330 feet (100 m) over shielded CAT 6A.
• 4K/60 at 4:4:4 — Supports video resolutions up to 4K/60 with full 4:4:4 chroma sampling, including 5K.
• Analog stereo audio embedding — Embeds a separate analog stereo source into the digital stream.
• Ultra-wide aspect ratios — Handles 21:9 and 5K formats used in extended desktop and Teams room layouts.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• Government space

Technical Specifications

Specifications sourced from Extron product documentation.

Frequently Asked Questions

Who is this model for?

Installations using two-gang EU or MK-type junction boxes rather than US back boxes. If your site uses standard US decorator openings, the DTP3 T 212 D or T 322 D are the equivalents.

Is it compatible with Flex55?

Yes. It works with Extron Flex55 enclosures, which is the usual route for architectural and furniture integration on EU and MK sites.

What inputs does it provide?

One USB-C input supporting DisplayPort Alt Mode, one HDMI input, and an analog stereo audio input that can be embedded into the digital stream.

What cable is required?

Shielded CAT 6A terminated to the shielded standard end to end for the full 330 feet (100 meters).

What resolutions are supported?

Up to 4K/60 at 4:4:4, including 5K and ultra-wide formats such as 5120x1440 at 60 Hz.

What receiver pairs with it?

Any Extron DTP3 receiver or DTP3-equipped switcher or matrix, matched to the display-side requirement.
