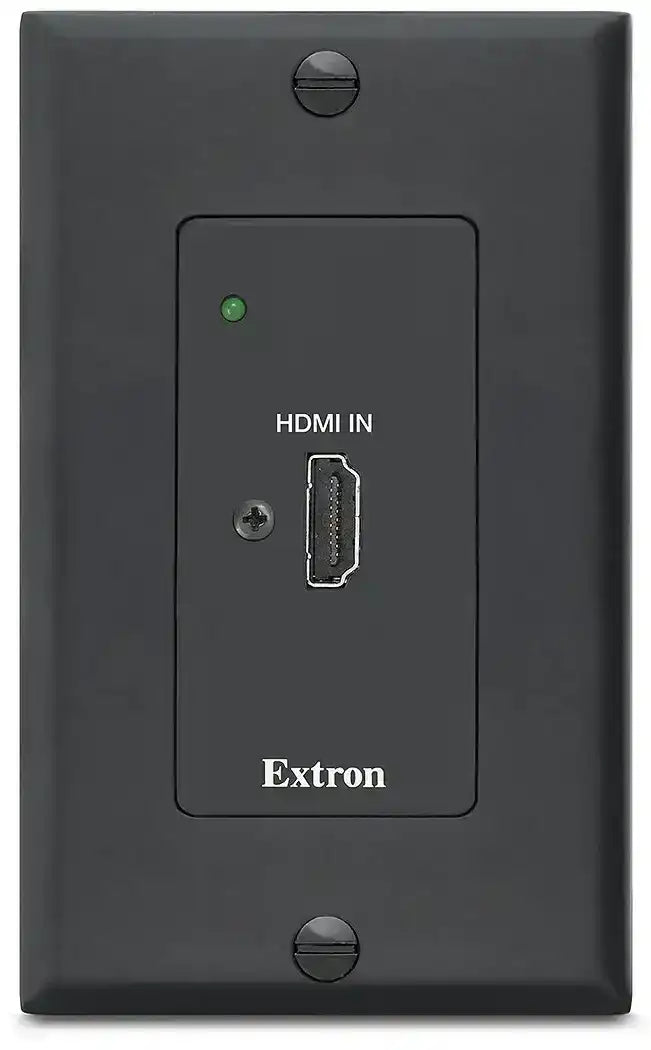

Extron DTP3 T 101 D HDMI 4K/60 Wallplate Tx, Black - 330 feet (100 m)

The Extron DTP3 T 101 D is a one-gang decorator-style transmitter for sending HDMI up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The wallplate transmitter includes many Extron technologies, such as EDID Minder^® that ensures the source powers up properly and reliably outputs content for display. Also, it can be remotely powered by a DTP3‑enabled product over the twisted pair connection, streamlining installation. The compact wall-mountable design of the DTP3 T 101 D provides the convenience of placing an HDMI input connection precisely where it is needed.

The HDCP 2.3-compliant DTP3 T 101 D enables the reliable transmission of HDMI signals, supporting 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, DDC communication of EDID is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The transmitter is also compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.

Features that Streamline Integration

The twisted pair transmitter provides other convenient, integrator-friendly features designed to help simplify installation. In addition to the capability of being remotely powered over the shielded CAT 6A cable, the DTP3 T 101 D can be configured to provide power to a connected DTP3 receiver, allowing both devices to share one power supply. The DTP3 output can be configured for compatibility with HDBaseT‑enabled displays to send HDMI signals up to 330 feet (100 meters) over the same twisted pair cable.

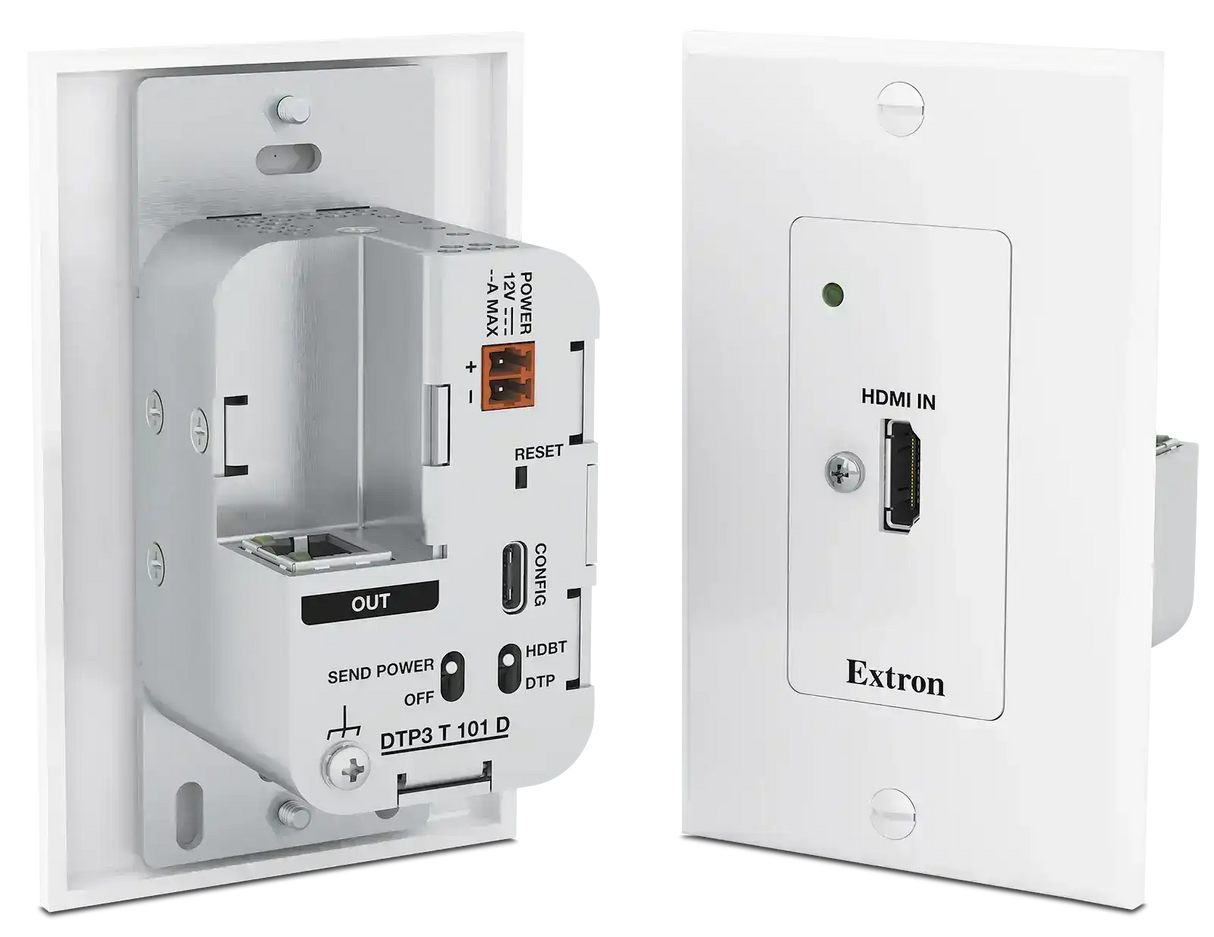

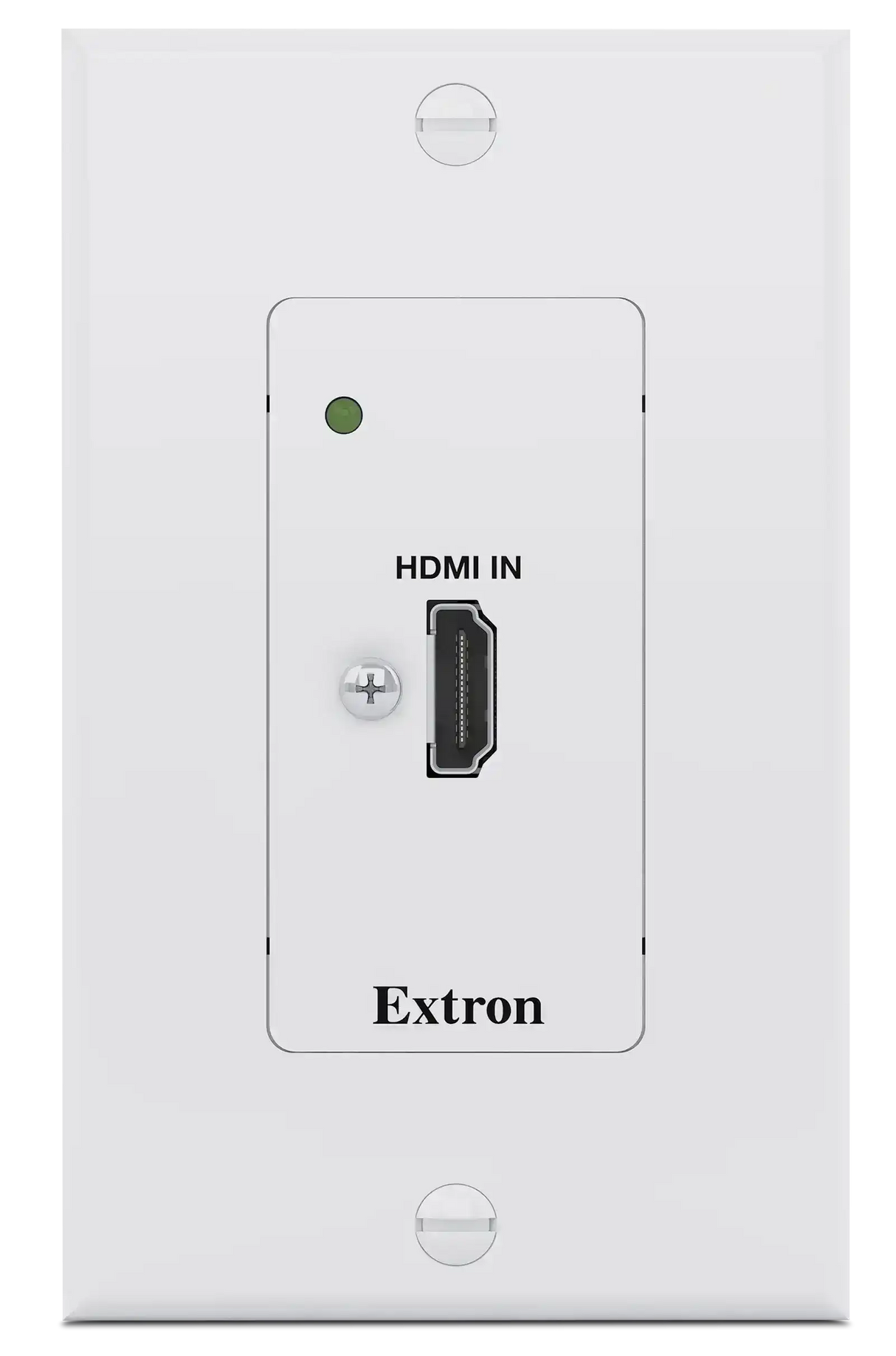

The DTP3 T 101 D mounts in an included one-gang decorator-style wallplate that fits a standard US one‑gang size junction box. The wall‑mountable form factor of the DTP3 T 101 D allows for discreet placement in walls, lecterns, and floor boxes.

Extron recommends Extron-certified XTP DTP 22 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The cable is certified to 475 MHz and utilizes an SF/UTP design with four unshielded 22 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Features

• Transmits HDMI up to 330' (100 m) over a shielded CAT 6A cable — The DTP3 T 101 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K — Support of 4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.
• Supports ultra-wide aspect ratios, including 21:9 and 5K
• Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• Compatible with DTP3 and DTP-enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products.
• Remote power capability with DTP3 products — For simplified installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT 6A shielded twisted pair cable
• Support for HDR – High Dynamic Range Video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• DTP3 output is compatible with HDBaseT-enabled devices — The DTP3 output can be configured to send video to an HDBaseT-enabled display.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
• Supports multiple embedded audio formats — The DTP3 T 101 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• Output muting control — Provides the capability to mute the video or audio output at any time.

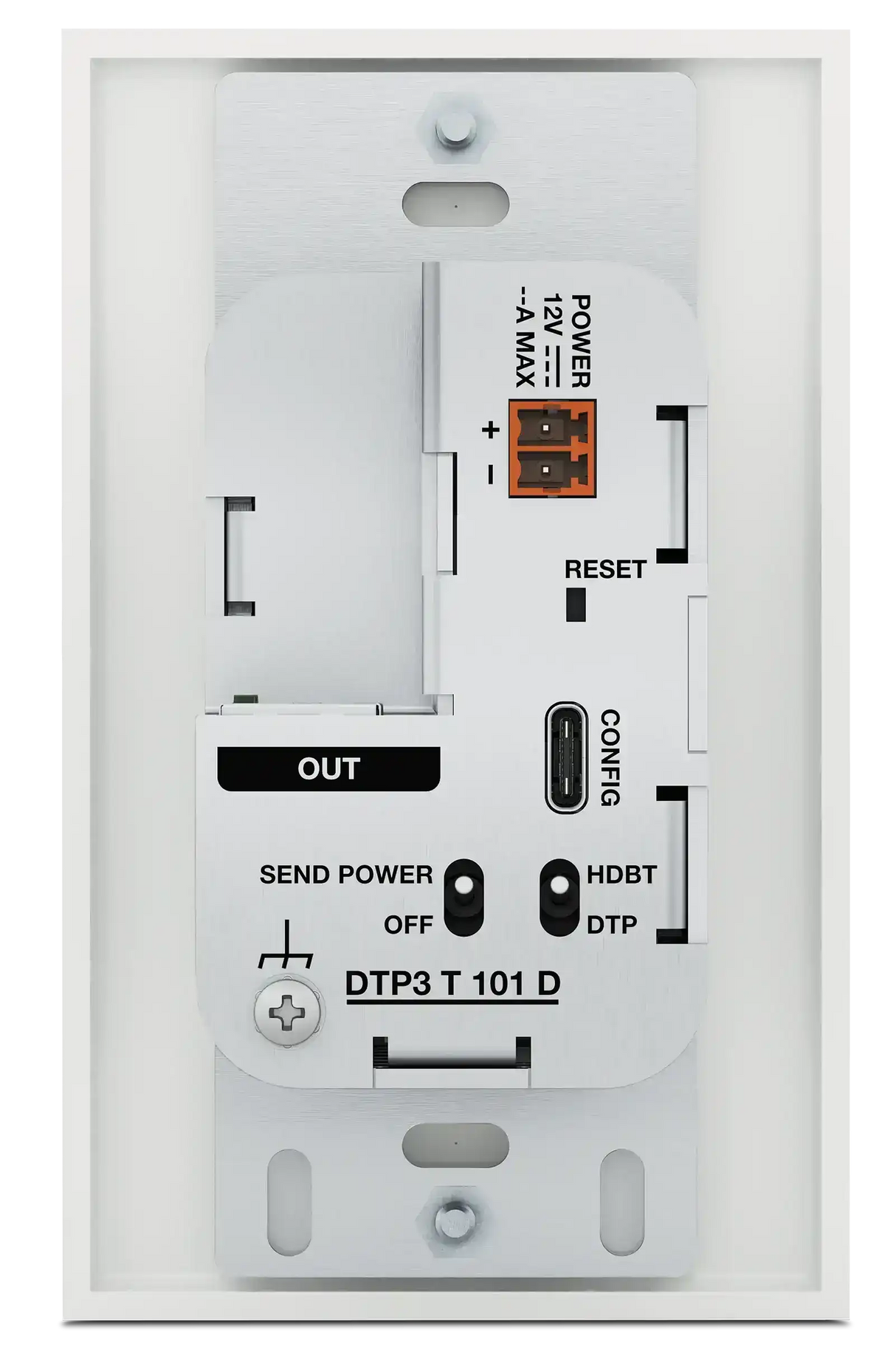

• Rear panel USB-C configuration port — Provides convenient access for information and firmware updates.
• LED indicator for signal presence — Provides visual indication of system status for real-time feedback and monitoring.
• RJ-45 signal and link LED indicators for DTP3 port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• Mounts in an included one‑gang decorator-style wallplate — The one‑gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• External Extron Everlast™ power supply included, replacement part # 70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

DTP3 T 101 D
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Ultra Wide & 5K	2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz
NOTE     *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration.
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
Color bit depth	8, 10 or 12 bits – subject to the max data rate
Formats	RGB and YCbCr digital video
HDR	HDR10, HDR10+, Dolby Vision
Standards	DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any HDR system. There are several HDR formats in use by source and display manufacturers. The level of HDR product support is governed by pixel clock, signal format, and signal communication between source and sink devices. Please contact an Extron Application Engineer for more information.
Video Input
Number/signal type
HDMI input	1 HDMI (or signal link DVI-D, with appropriate DVI-HDMI adapters)
Connector
HDMI input	1 female HDMI type A
Interconnection Between Transmitter and Receiver
Connectors	1 female RJ-45 per unit
Termination standards	TIA/EIA-T568B
Signal Transmission Distance (using XTP DTP 24 cable)
1080p @ 60 Hz	Up to 330’ (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K/UHD @ 30 Hz	Up to 330’ (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K/UHD @ 60 Hz (1)	Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3') Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
4K/UHD @ 60 Hz (2)	Up to 175’ (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair)
Signal Transmission Distance (using XTP DTP 22 cable)
1080p @ 60 Hz	Up to 330’ (100m) using XTP DTP 22 cable
4K/UHD @ 30 Hz	Up to 330’ (100 m) using XTP DTP 22 cable
4K/UHD @ 60 Hz (1)(2)	Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4') Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, STP (shielded twisted pair)
NOTE     Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance.
NOTE     (1) With coupler(s), (2) No couplers
Communications
Control/Remote — Transmitter
USB control port	1 back panel, female USB type C
USB standards	USB 2.0, low speed
Program control	Extron Simple Instruction Set (SISTM) Extron Product Configuration Software (PCS)
General
Power supply	External (included with Tx) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	5.04 watts
Device and power supply	6.03 watts
Remote power budget	18 watts
NOTE     The transmitter can be powered either locally by an external power supply or remotely by a receiver on the other end of the twisted pair cable.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vent holes
Thermal dissipation
Device	17.20 BTU/hr
Device and power supply	20.58 BTU/hr
Mounting
Furniture or wall mount	Wall or furniture mount in a decorator-style opening
Enclosure type	Metal
Enclosure dimensions
Faceplate	2.6" H* x 1.3" W x 0.3" D (66 mm H* x 33 mm W x 8 mm D)
Device	2.8" H* x 1.7" W x 1.9" D (71 mm H* x 43 mm W x 48 mm D)
NOTE     *Height is 4.2" (104 mm) including mounting tabs.
Product weight (transmitter)	0.4 lb (0.18 kg)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6351-D9)
