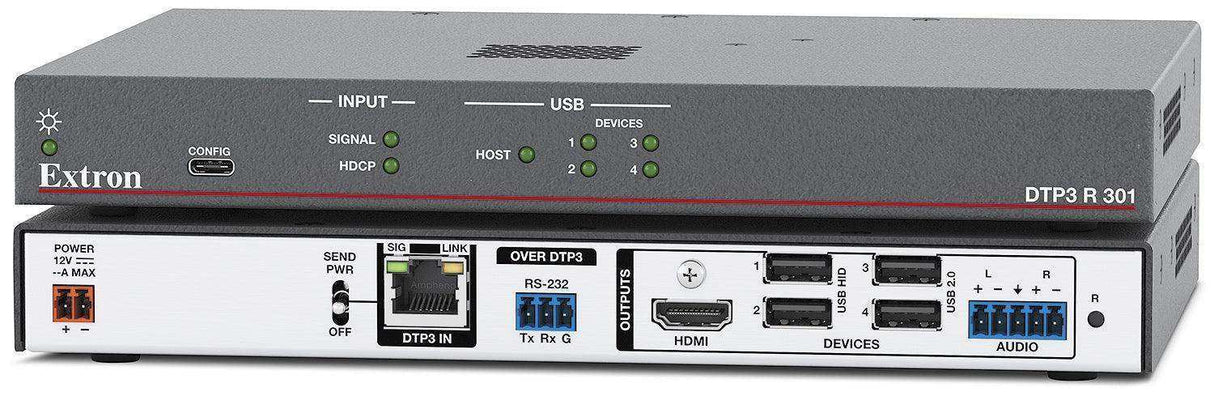

Extron DTP3 R 301 DTP3 Receiver for 4K/60 HDMI and USB Data

The DTP3 R 301 is a long-distance, digital twisted pair receiver for extending HDMI, USB 2.0, audio, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT6A cable. It supports video resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The DTP3 R 301 features a four-port USB hub and stereo audio de-embedding for convenient installation in professional environments. The low-profile enclosure makes the DTP3 R 301 ideal for discreet placement behind displays, in equipment racks, or wherever needed to meet application requirements.

The DTP3 R 301 receiver enables the reliable, long-distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps, supporting HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. DDC communication of EDID and HDCP is continuously maintained between source and display, which ensures optimal signal transmission between devices. The DTP3 R 301 receiver can be used with a DTP3 T 301 receiver in point‑to‑point USB extension applications and is compatible with other DTP3-enabled products.

USB Signal Extension

The DTP3 R 301 supports USB 2.0 through 1.1 devices with data rates up to 480 Mbps. It is compatible with USB 3.0 devices that can operate at USB 2.0 data rates. Integrated USB signal extension enables connection to peripheral devices over the same twisted pair cable as HDMI signals. The four-port USB hub allows the connection of several USB devices such as interactive whiteboards, keyboards, mice, mass storage devices, and webcams on a single host port.

Features that Streamline Integration

To simplify integration with digital sources and displays, the DTP3 R 301 includes many integrator-friendly features that streamline installation. When HDCP-encrypted content is transmitted to a non-HDCP compliant display, a full-screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.

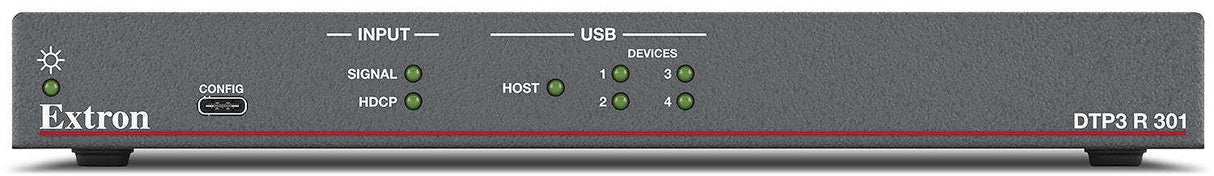

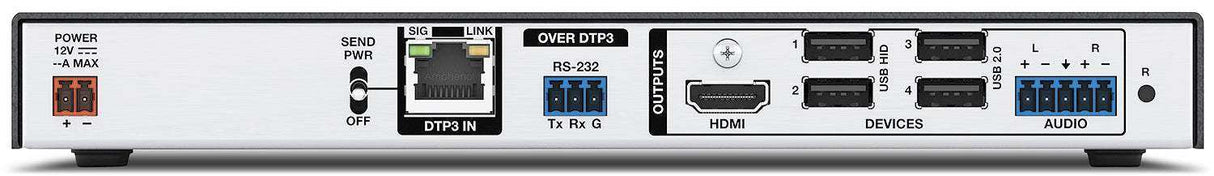

Front panel LED indicators provide immediate visual confirmation of signal presence for the HDMI output, each USB connector, HDCP status, and power. In addition to an indicator for the USB host, the DTP3 R 301 receiver provides two stacked green LEDs for USB Device status, one for each port. The rear panel includes a recessed reset button to return the unit  to the factory default settings.

Convenient Control and Power

The DTP3 R 301 provides many other integrator-friendly features designed to help simplify installation. The receiver supports transmission of bidirectional RS-232 from a control system for AV device control. The control signals can be transmitted alongside the AV signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C® configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 R 301 is made simple with Extron’s PCS - Product Configuration Software. The user-friendly GUI is amazingly easy to navigate. This software application allows for expedited setup, commissioning, and real-time operation and monitoring.

The receiver can remotely power the DTP3 T 301 transmitter or another DTP3-enabled device over the shielded twisted pair cable, enabling both devices to share one power supply. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the low-profile design allows for discreet placement in tight spaces.

To ensure optimal performance, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.

The DTP3 R 301 is ideal for a wide variety of environments requiring extension of HDMI, audio, USB data with rates up to 480 Mbps, and control signals, including courtrooms, conference and meeting spaces, classrooms, lecture halls, and houses of worship.

Features

• Receives HDMI, USB data, control, and analog audio up to 330 feet (100 meters) over a shielded CAT6A cable — The DTP3 R 301 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.
• USB 2.0 extension — Built-in USB 2.0 extension facilitates connection to peripheral USB devices over the same cable as video and audio. Ideal for remote connectivity for USB cameras or storage devices.
• Integrated four-port USB hub — Allows simultaneous connection to multiple peripheral devices such as mass storage devices, keyboards, mice, and other HID – Human Interface Devices. 5 VDC@500 mA for USB 2.0, and 5 VDC @ 100 mA for HID are provided to power or charge peripheral devices.
• Stereo audio de-embedding
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• Sends remote power to DTP3 products — For simplified installation, the receiver can be configured to provide power to the connected DTP3 transmitter.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT6A shielded twisted pair cable — CAT6A Shielded twisted pair cabling is recommended for optimal performance.
• Support for HDR – High Dynamic Range video — The DTP3 R 301 enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• Bidirectional RS-232 pass-through for AV device control — Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• Supports multiple embedded audio formats — The DTP3 R 301 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Supports USB 2.0 to 1.1 devices and USB 3.0 devices that can operate at USB 2.0 data rates of up to 480 Mbps — Provides USB extension, allowing connection to peripheral devices over the same CAT6A cable as video and audio.
• Device class filtering on USB HID port restricts the range of device types to HID — Device class filtering prevents unauthorized downloading or uploading of content via the USB port in secure environments. The USB HID port is configured at the factory, such that device class filtering cannot be removed or altered in the field.
• Host Emulation on USB HID ports — Provides increased system reliability by emulating uninterrupted connection between host and keyboard/mouse devices.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• HDCP Visual Confirmation — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
• Front panel USB‑C^® configuration port — Provides convenient access for information and firmware updates.
• LED indicators for signal presence, power, and link status — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ-45 signal and link LED indicators for DTP port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• 1" (2.5 cm) high, half rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.
• Includes LockIt^® HDMI cable lacing brackets
• External Extron Everlast™ power supply included, replacement part # 70‑1246‑01 — Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

Specs

Also see our  Specs in PDF format

DTP3 T/R 301
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, 12 bits per color
Signal Type	HDMI 2.0b, HDCP 1.x, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Ultra Wide and 5K	2560x1080, 3440x1440, 3840x1080, 3840x1440,3840x1600 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz
NOTE     *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration.
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
Color bit depth	8, 10, or 12 bits — subject to the maximum data rate limit
Formats	RGB and YCbCr digital video
HDR	HDR10, HDR10+, Dolby Vision
Standard	DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any HDR system. There are several HDR formats in use by source and display manufacturers. The level of HDR product support is governed by pixel clock, signal format, and signal communication between source and sink devices. Please contact an Extron Application Engineer for more information.
Video input — transmitter
Number/signal type
HDMI input	1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)
Connector
HDMI input	1 female HDMI, type A
Video input — receiver
Number/signal type
DTP3	1 DTP3
Connector
DTP3 input	1 female RJ-45 jack
Interconnection Between Transmitter and Receiver
Connector	1 female RJ-45 per unit
Termination standard	TIA/EIA T568B
Signal Transmission Distance (using XTP DTP 24 cable)
1080p @ 60 Hz	Up to 330' (100 m) using shielded twisted pair (STP) or XTP DTP 24 cable
4K/UHD @ 30Hz	Up to 330' (100 m) using shielded twisted pair (STP) or XTP DTP 24 cable
4K/UHD @ 60 Hz	Up to 150' (45 m) using shielded twisted pair (STP) or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables Using 2 punch-downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
4K/UHD @ 60 Hz	Up to 175' (53 m) using shielded twisted pair (STP) or XTP DTP 24 cable with no couplers
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair)
Signal Transmission Distance (using XTP DTP 22 cable)
1080p @ 60 Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 30Hz	Up to 330' (100 m) using XTP DTP 22 cable
4K/UHD @ 60 Hz	Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with two 4' (1.2 m) (max) patch cables Using 2 punch-downs with two 3' (0,9 m) to 8' (2.4 m) patch cables
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, STP (shielded twisted pair)
NOTE     Extron XTP DTP 22 shielded twisted pair is strongly recommended for optimal performance.
Video output — transmitter
Number/signal type	1 single link HDMI or DVI-D* (Loop through) 1 DTP3 (output)
Connectors	1 female HDMI (loop through) 1 female RJ-45 jack
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Video output — receiver
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Audio
Gain	Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	0.03% @ 20 Hz to 20 kHz at maximum output
S/N	>90 dB, at maximum output (15 dBu), balanced (unweighted)
Stereo channel separation	>80 dB @ 1 kHz to 20 kHz
Audio input — transmitter
Number/signal type	1 PC level stereo, unbalanced 1 digital embedded audio on HDMI
NOTE     Analog audio can be configured for embedding onto the digital video signal at the transmitter. Embedded digital audio can be (configured) de-embedded from the digital video signal at the receiver end.
Connectors	(1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) (1) Female HDMI
Impedance	>10k ohms, DC coupled
Nominal level	-10 dBV (316 mVrms)
Maximum level	+7 dBV (unbalanced)
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output — analog (receiver only)
Number/signal type	1 stereo, balanced/unbalanced (fixed and variable outputs) 1 embedded digital audio on HDMI
Connectors	(1) 3.5 mm captive screw connectors, 5-pole 1 female HDMI type A
Impedance	50 ohms unbalanced, 100 ohms balanced
Gain error	±0.1 dB channel to channel
Maximum level (Hi-Z)	>+11 dBu, balanced
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
USB
Host support	xHCI (USB 3.2 Gen 1/2, USB 3.1 Gen1/2, USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
Data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Throughput	480 Mbps
Data transfer types	Bulk, control, interrupt, and isochronous
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any system that includes a USB camera. There are several unique transport methods in use by USB camera manufacturers and the level of support is governed by this. Please contact an Extron Applications Engineering for more information.
USB host — Tx unit
Number/signal type	1 USB (supports up to 480 Mbps speeds)
Connector	1 female USB type B
Maximum built-in USB hubs	1
Minimum built-in USB hubs	0
Optional built-in USB hubs	1
USB hub — Rx unit
Number/signal type	(1) 4-port USB hub (supports up to 480 Mbps speeds)
Connectors	4 female USB type A
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
Available USB power
USB 2.0	500 mA/port
USB HID	100 mA/port
Control/remote — external device (RS-232 over TP)
Serial control pass-through ports	(1) RS-232 via 3.5 mm 3-pole captive screw connector
Baud rate	300 to 115 k baud
Protocol	8 or 7 data bits 1 or 2 stop bits No-parity (default), even or odd parity
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = Gnd
NOTE     Protocol is mirrored between the connected DTP3 Rx endpoints and the "Over TP". Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP3 endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 insertion from any DTP3 control port to the "Over TP" ports.
Control/remote
USB control port	1 front panel female USB-C
USB standards	USB 2.0, low speed
Program control	Extron Simple Instruction Set (SIS) Extron Product Configuration Software (PCS)
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 4.2 A, 50 watts
Power consumption
Transmitter
Device	10.7 watts, 12 VDC
Device and power supply	11.9 watts, 100-240 VAC, 50-60 Hz
Receiver
Device	30.5 watts, 12 VDC
Device and power supply	33.9 watts, 100-240 VAC, 50-60 Hz
Remote power budget	18.0 watts
NOTE     The transmitter can be powered either locally by an external power supply or remotely by a receiver on the other end of the twisted pair cable. The receiver must be powered by an external power supply.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on top and sides
Thermal dissipation
Transmitter
Device	35.4 BTU/hr
Device and power supply	39.5 BTU/hr
Receiver
Device	44.6 BTU/hr
Device and power supply	56.1 BTU/hr
Mounting
Rack mount	Yes, with optional 1U high rack shelf or included ZipClip 400 mounting kit
Furniture mount	Yes, with optional under-desk mounting kit or included ZipClip 400 mounting kit
Enclosure type	Metal
Enclosure dimensions
Transmitter	1.0" H x 8.75" W x 6.0" D (half rack wide) (25 mm H x 222 mm W x 152 mm D) (Depth excludes connectors.)
Receiver	1.0" H x 8.75" W x 6.0" D (half rack wide) (25 mm H x 222 mm W x 152 mm D) (Depth excludes connectors.)
Product weight
Transmitter	1.2 lbs (0.54 kg)
Receiver	1.2 lbs (0.54 kg)
Regulatory compliance	CE, c-UL UL,C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6360-D12)
