Product Overview

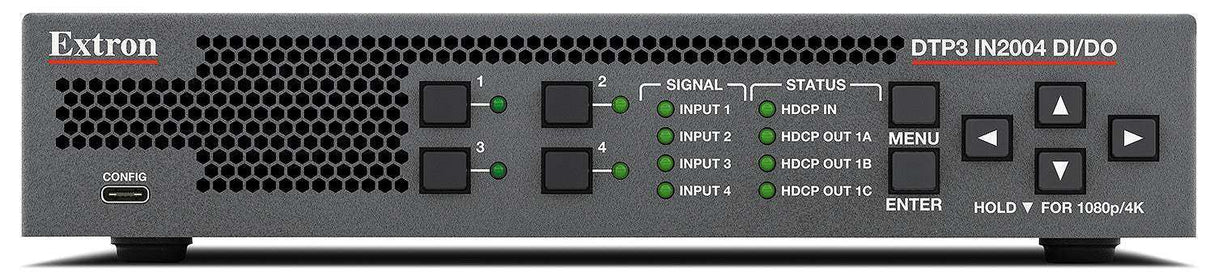

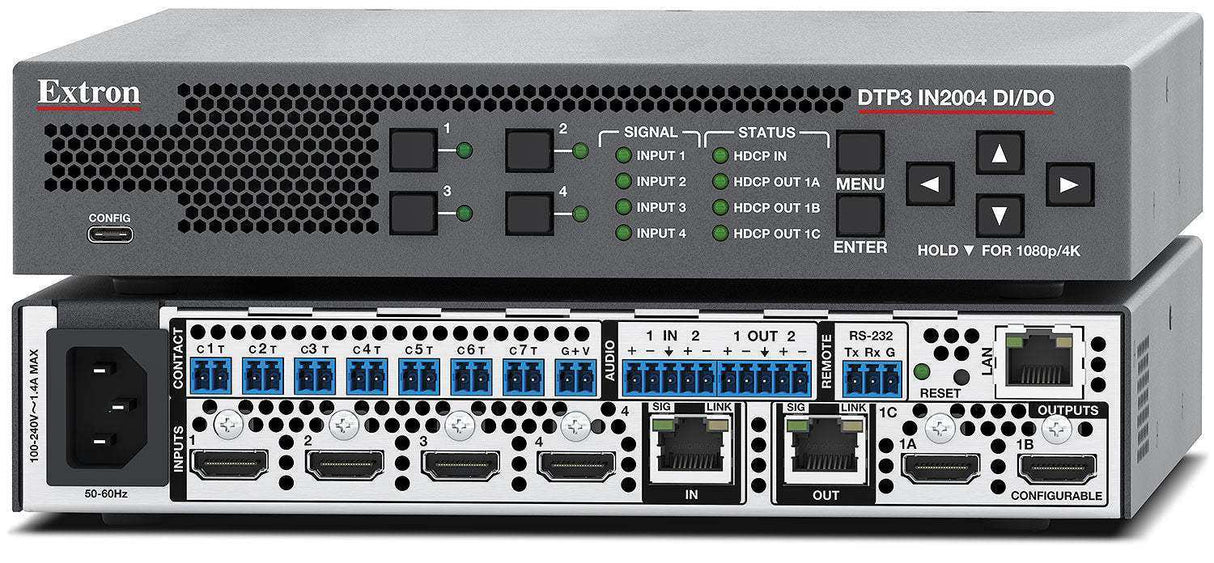

The Extron DTP3 IN2004 DI/DO is a compact four-input 4K/60 scaling switcher with four HDMI inputs, one selectable DTP3 I/O port, one DTP3 output (plus HDMI on DTP3-out models), and DTP3 signal extension over shielded CAT 6A up to 330 feet. It incorporates Vector 4K scaling, HDMI 2.0b with HDR, seamless transition effects, audio mixing and ducking, logo keying, and configurable input loop-through. Available at Creation Networks.
Product Description
The DTP3 IN2004 DI/DO serves boardrooms, lecture halls, and professional AV venues requiring 4K/60 HDR switching in a compact half-rack unit with DTP3 signal extension. Four HDMI 2.0b inputs route through Vector 4K scaling to the HDMI and DTP3 outputs. HDMI 2.0b supports HDR10, HLG, and Dolby Vision pass-through. Audio mixing includes input-to-output mixing, ducking when a microphone is active, and HDMI audio de-embedding. Logo keying supports company logos and full-screen background images. The configurable input loop-through allows one input to pass directly to a local display while the switcher drives the main output. Control via Ethernet, RS-232, and USB. Available at Creation Networks.
Key Features
- Four-Input 4K/60 HDR Scaling Switcher — Four HDMI 2.0b inputs; HDR10, HLG, Dolby Vision; HDCP 2.3; 4K/60 at 4:4:4.
- Vector 4K Scaling Engine — 30-bit precision; 640x480 through 4K/60 at 4:4:4; selectable output rates.
- DTP3 Input (DI/DO Model) — Selectable DTP3 port can be configured as an additional input for extending a remote source up to 330 feet over shielded CAT 6A.
- DTP3 Output to 330 Feet over CAT 6A — Extends 4K/60 video, audio, and RS-232 to a DTP3 receiver or HDBaseT display up to 330 feet on a single shielded CAT 6A cable.
- Seamless Transition Effects — Freeze/cut, freeze/fade, cut through black, and fade through black.
- Audio Mixing and Ducking — Input-to-output audio mixing; auto-ducking reduces program audio when mic is active.
- Logo Keying — Overlay logos or full-screen background images on the video output.
- Configurable Input Loop-Through — Passes one input directly to a local display while the switcher handles the main output.
- EDID Minder, Key Minder, SpeedSwitch — Reliable HDCP compliance and fast switching for protected content.
- Compact Half-Rack Enclosure — 1.66" H x 8.68" W x 11.5" D; 4.5 lbs (2.04 kg).
Technical Specifications
| DTP3 IN2004 DI/DO — Technical Specifications (SKU 60-1962-03) | |
|---|---|
| Video inputs | 4 HDMI 2.0b (HDCP 2.3); 1 selectable DTP3 I/O (DI/DO model) |
| Video outputs | 2 HDMI + 1 DTP3; 4K/60 at 4:4:4 |
| DTP3 extension | Up to 330 ft (100 m) over shielded CAT 6A |
| Scaled resolutions | 640x480 through 4K/60 at 4:4:4 |
| HDR support | HDR10, HLG, Dolby Vision pass-through |
| Audio | HDMI audio embedding/de-embedding; input mixing; mic ducking |
| Control | Ethernet; RS-232; USB |
| Power supply | Internal Extron Everlast; 100–240 VAC |
| Enclosure | 1U, half rack; 1.66" H x 8.68" W x 11.5" D; 4.5 lbs (2.04 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The DTP3 IN2004 DI/DO is used in boardrooms and lecture halls where four 4K/60 HDR sources — laptops and video cameras — must switch cleanly to both a local display and a remote DTP3 receiver at the projector or secondary display.
Spec Sheet PDF Download
