Extron DTP3 CrossPoint 884 Standard Model (TAA)

Product Overview

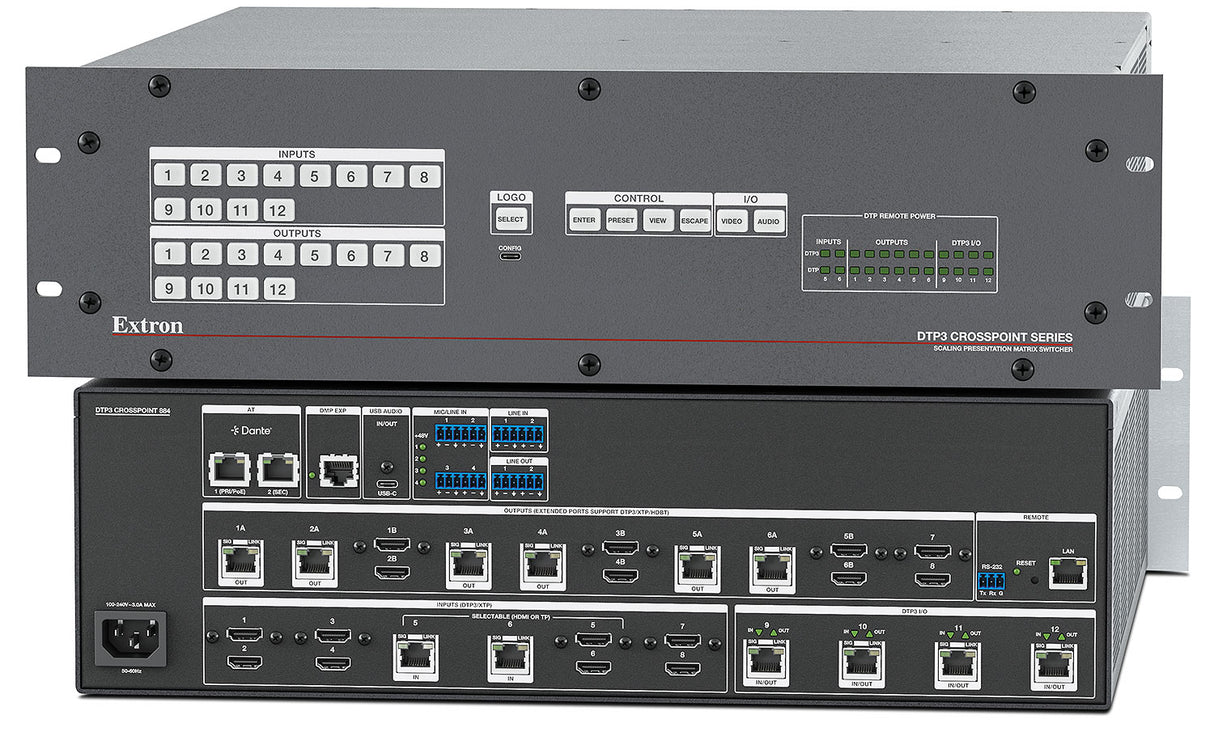

The Extron DTP3 CrossPoint 884 is a configurable 4K/60 presentation matrix switcher with eight dedicated HDMI inputs, eight dedicated scaled outputs, and four reversible DTP3 I/O ports — allowing matrix configurations from 8x12 to 12x8 in a single 3U rack unit. It includes Extron ProDSP with AEC, Dante audio networking, and Vector 4K scaling on all outputs, without an integrated amplifier or control processor. DTP3 outputs extend uncompressed 4K/60 video, audio, and RS-232 up to 330 feet over shielded CAT 6A cable. Available at Creation Networks.

Product Description

The DTP3 CrossPoint 884 Standard is designed for large-scale commercial AV installations where matrix size flexibility, 4K/60 4:4:4 signal quality, Dante audio networking, and full-featured DSP are required without integrated amplification or programmable control. The configurable DTP3 I/O architecture allows the matrix to scale from 8x12 to 12x8 by setting the four reversible ports as inputs or outputs, accommodating diverse room designs from a single rack device. All outputs are driven by the Vector 4K scaling engine, supporting resolutions up to 4K/60 with 4:4:4 chroma sampling, HDR10, HLG, and Dolby Vision. DTP3 outputs extend uncompressed 4K/60 video, embedded audio, and RS-232 up to 330 feet over shielded CAT 6A cable to DTP3-compatible endpoints and HDBaseT displays. ProDSP provides 32/64-bit floating point audio processing with four-channel AEC, Dante AES67 networking for integration with broadcast and conferencing audio infrastructure, and expansion capability via a second Extron DSP. The unit is configured via front panel, Ethernet, USB, or RS-232 using Extron PCS software. Available at Creation Networks.

Key Features

• Configurable 8x12 to 12x8 Matrix — Four reversible DTP3 I/O ports can be set as inputs or outputs in any combination, allowing matrix size to be tailored to the installation without changing hardware.
• 4K/60 with 4:4:4 Color Sampling on All Outputs — All outputs support true 4K/60 at full 4:4:4 chroma sampling, HDR10, HLG, and Dolby Vision for the highest signal fidelity across all connected displays.
• Vector 4K Scaling on All Outputs — Every output is independently scaled using Extron’s 30-bit Vector 4K engine, supporting resolutions from standard definition through 4K/60.
• DTP3 Signal Extension to 330 Feet over CAT 6A — DTP3 outputs transmit uncompressed 4K/60 video, audio, and RS-232 up to 330 feet over shielded CAT 6A cable to DTP3-compatible endpoints and HDBaseT displays.
• HDMI 2.0b with HDCP 2.3 — Supports data rates up to 18 Gbps, Deep Color, HDR, and all current HDMI content protection requirements.
• ProDSP 32/64-Bit Floating Point Audio Processor — Full DSP suite with four-channel AEC, automixer, EQ, dynamics, delay, feedback suppression, ducking, and Dante AES67 audio networking.
• Dante AES67 Audio Networking — Built-in Dante connectivity for integration with broadcast, conference, and distributed audio systems without a separate Dante interface.
• Four-Channel Acoustic Echo Cancellation (AEC) — Independent AEC per channel for clear conferencing and distance learning audio in large rooms.
• No Integrated Amplifier or Control Processor — Connects to external amplifiers and control systems; suited for installations with existing amplification and control infrastructure.
• Seamless Switching and Logo Keying — Selectable seamless transitions and logo/graphic overlay on all scaled outputs for professional presentation delivery.

Frequently Asked Questions

How flexible is the input/output configuration?

Four reversible DTP3 I/O ports can be set as inputs or outputs in any combination, letting the matrix run from 8x12 to 12x8 on the same hardware.

Does the Standard model include an amplifier or control processor?

No. It connects to external amplifiers and control systems, which fits installations that already have amplification and control infrastructure in place.

How far can DTP3 outputs extend video?

Up to 330 feet over shielded CAT 6A cable, carrying uncompressed 4K/60 video, embedded audio, and RS-232 to DTP3-compatible endpoints or HDBaseT displays.

Does it support Dante audio networking?

Yes, with built-in Dante AES67 connectivity for integration with broadcast, conference, and distributed audio systems without a separate interface.

How is it configured and controlled?

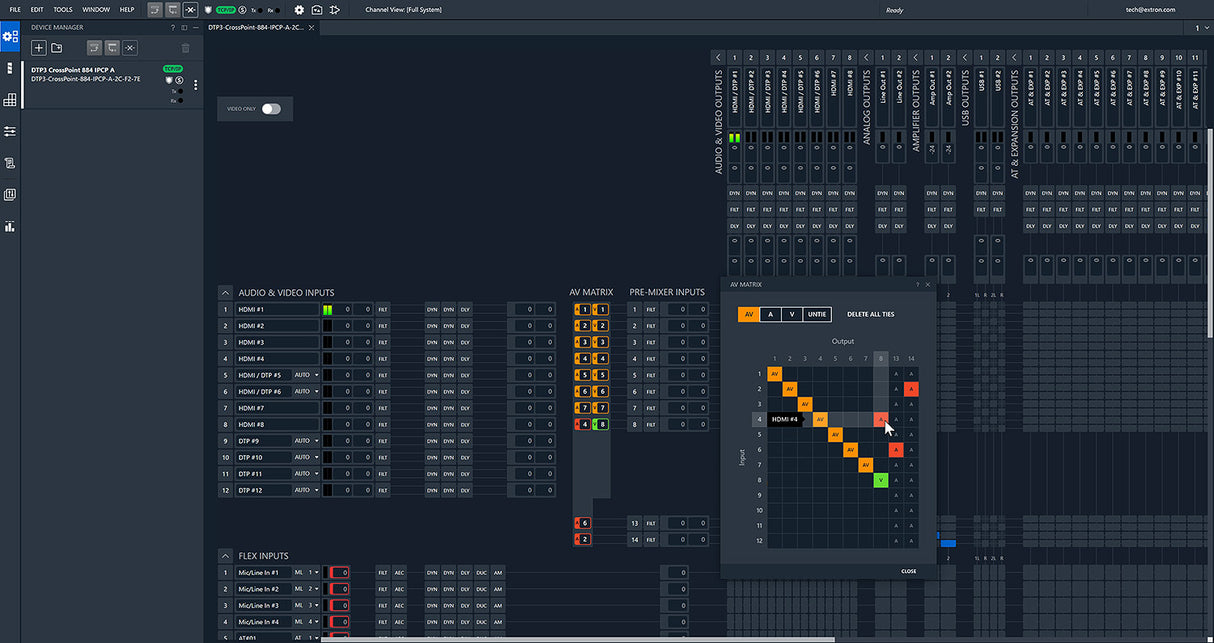

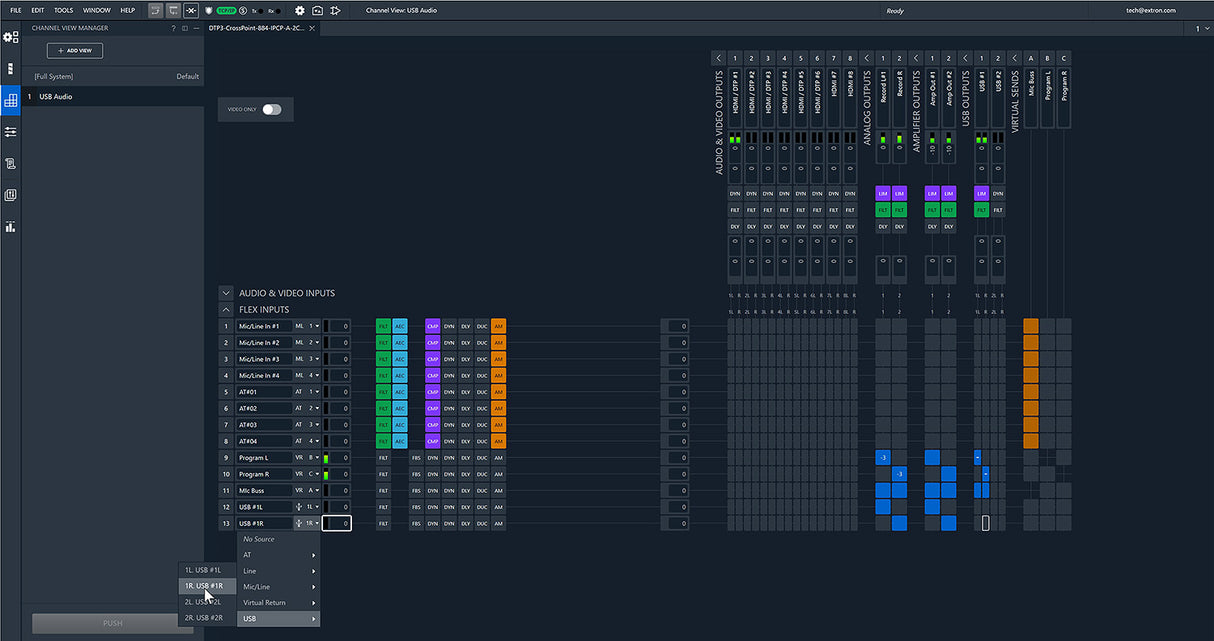

Via front panel, Ethernet, USB, or RS-232 using Extron PCS software.
