Extron DTP3 CrossPoint 884 IPCP A LL Control Processor and Amplifier, LL UI Upgrade

Product Overview

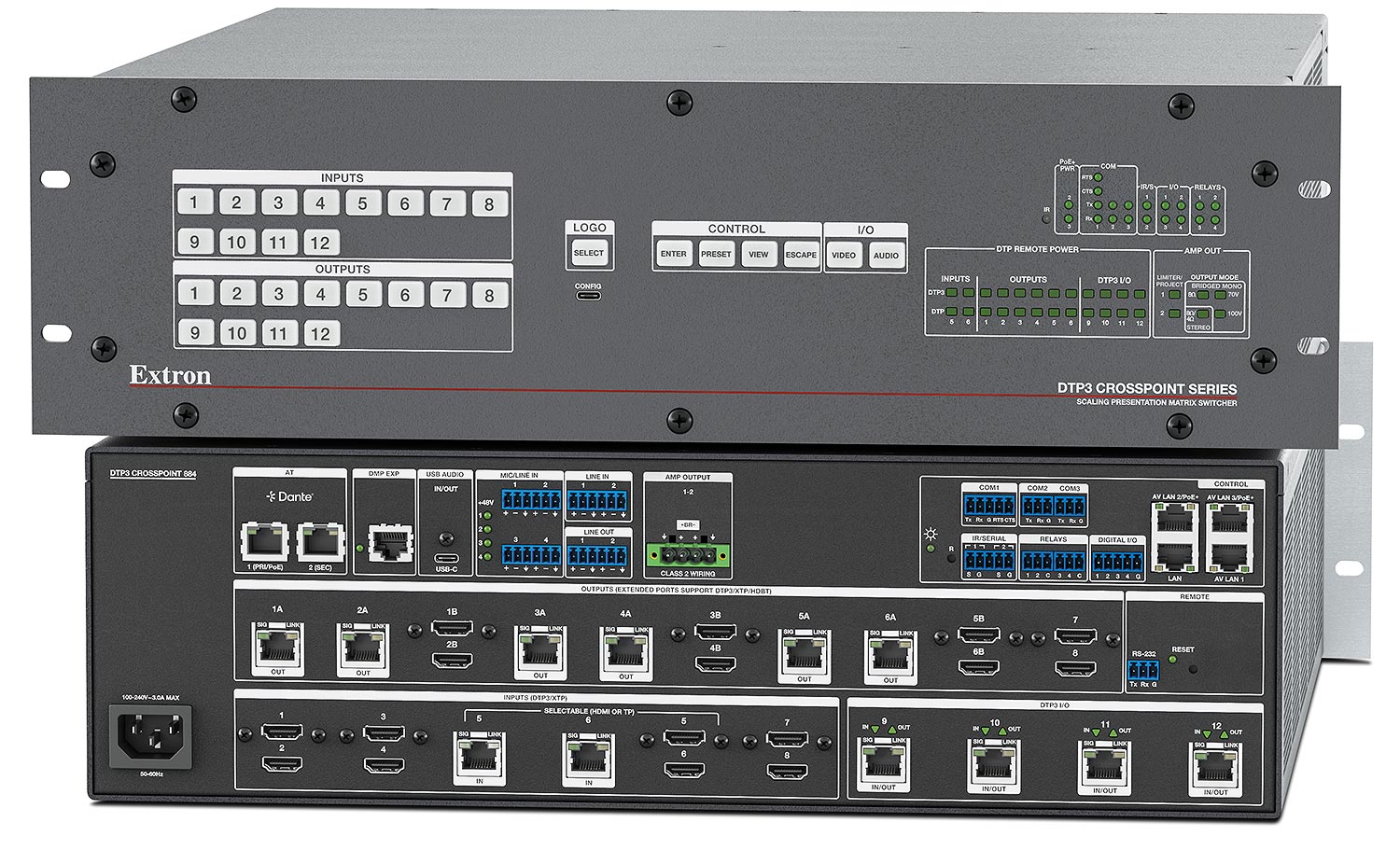

The Extron DTP3 CrossPoint 884 IPCP A LL is the full-featured configuration of the configurable 884 matrix platform — combining the 200W Class D power amplifier, IPCP Pro xi control processor, and pre-installed LinkLicense User Interfaces upgrade with the core 4K/60 matrix switching, DTP3 signal extension, ProDSP with AEC, and Dante audio networking of the 884 family. The pre-installed LinkLicense UI enables any mobile device or computer on the network to serve as the AV system control touchpanel without additional per-user licensing. Available at Creation Networks.

Product Description

The DTP3 CrossPoint 884 IPCP A LL adds the pre-installed Extron LinkLicense User Interfaces upgrade to the IPCP A platform, making mobile device and computer-based AV control available immediately upon deployment without additional licensing steps. The configurable 8x12 to 12x8 matrix uses four reversible DTP3 I/O ports; all outputs use the Vector 4K engine for 4K/60 at 4:4:4 with HDR10, HLG, and Dolby Vision. DTP3 outputs extend uncompressed 4K/60 over shielded CAT 6A to 330 feet. ProDSP provides 32/64-bit floating point processing with four-channel AEC and built-in Dante AES67 networking. The integrated 200W Class D amplifier supports stereo 100W per channel at 4 or 8 ohms, or bridged mono 200W at 8 ohm, 70V, or 100V. The IPCP Pro xi control processor includes an isolated AV LAN switch and full complement of control ports. Available at Creation Networks.

Key Features

• Configurable 8x12 to 12x8 Matrix — Four reversible DTP3 I/O ports set the matrix size; adapts to diverse room configurations without hardware changes.
• LinkLicense User Interfaces Upgrade — Pre-Installed — Enables mobile device and computer AV control via Extron TouchLink immediately upon deployment; per-system licensing, no per-user fees.
• 4K/60 4:4:4 with HDR on All Outputs — Vector 4K scaling engine on every output; supports 4K/60 at full 4:4:4, HDR10, HLG, and Dolby Vision.
• DTP3 Extension to 330 Feet over CAT 6A — Uncompressed 4K/60 video, audio, and RS-232 up to 330 feet over shielded CAT 6A.
• Integrated 200W Class D Power Amplifier — Stereo 100W/channel at 4Ω or 8Ω; bridged mono 200W at 8Ω, 70V, or 100V — single chassis covers direct speaker and distributed 70V/100V systems.
• Integrated IPCP Pro xi Control Processor — Programmable AV system control with isolated AV LAN switch, serial ports, digital I/O, relays, and IR.
• Three-Port Isolated AV LAN Switch — Isolates AV control traffic from the corporate network while enabling Extron PCS and DSP Configurator access.

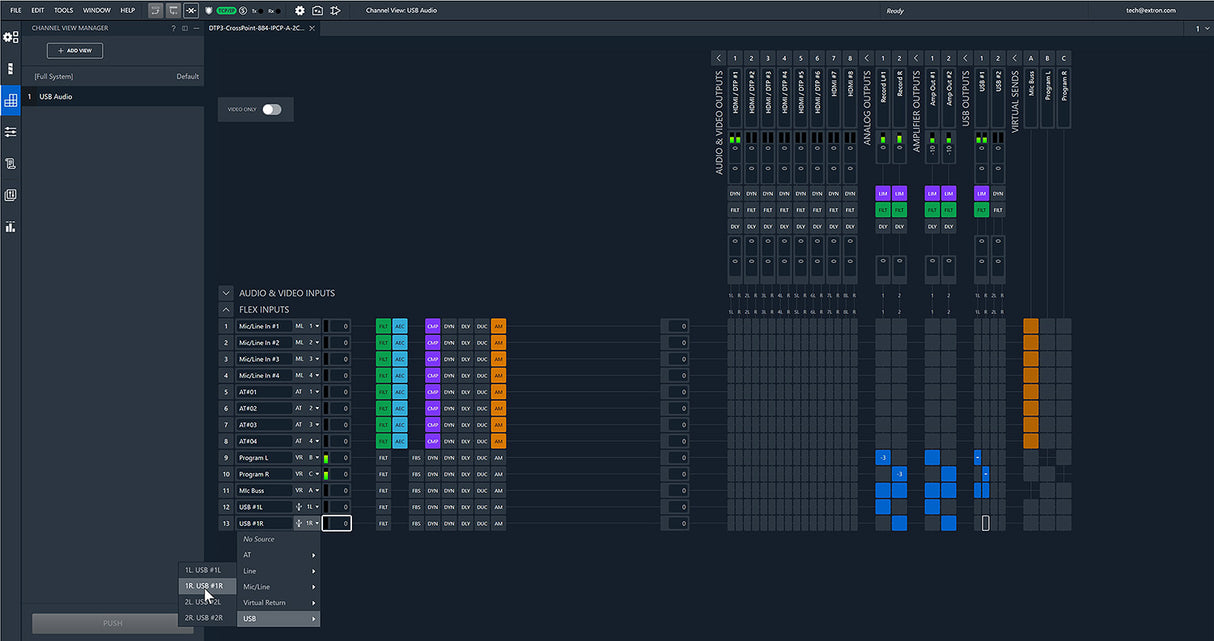

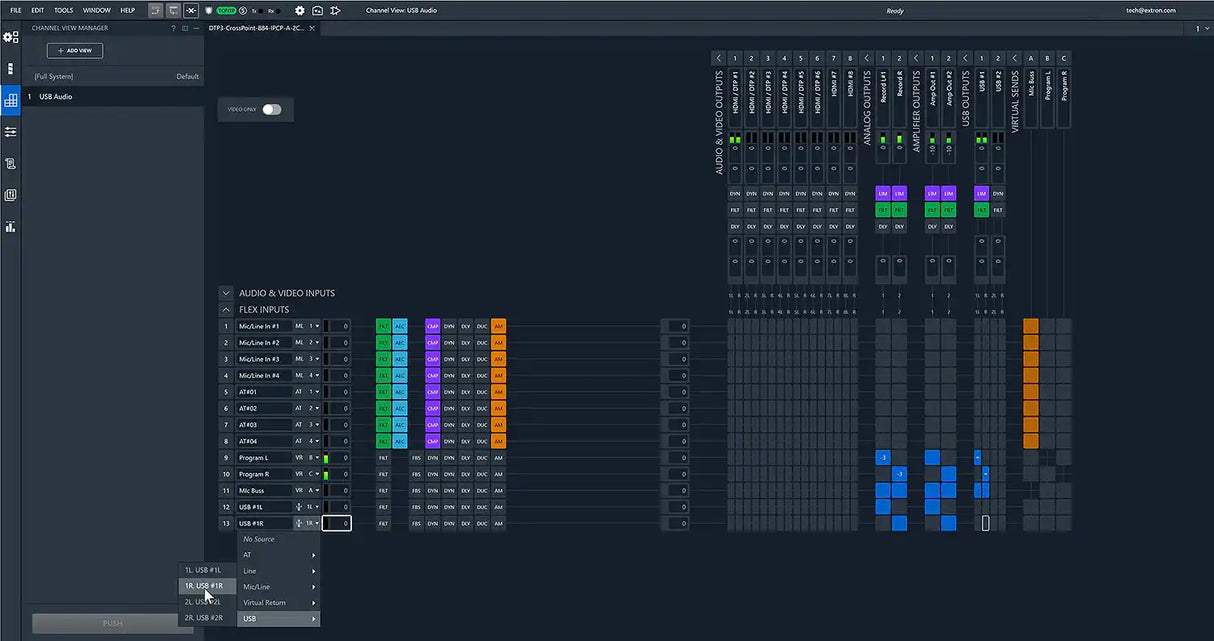

• ProDSP with Four-Channel AEC and Dante — 32/64-bit floating point DSP, AEC, automixer, and built-in Dante AES67 for broadcast-grade audio integration.
• HDMI 2.0b with HDCP 2.3 — 18 Gbps, Deep Color, HDR, and full content protection compliance.
• Seamless Switching and Logo Keying — Selectable transitions and graphic overlays on all scaled outputs.
• Extron Everlast Internal Power Supply — Universal power; 7-year warranty.

Technical Specifications

Typical Application

The DTP3 CrossPoint 884 IPCP A LL is specified for large conference centers, command centers, university lecture halls, and public venue AV systems requiring configurable 4K/60 matrix switching, Dante audio, high-power multi-mode amplification, programmable AV control, and BYOD mobile device control from a single 3U device. The pre-installed LinkLicense UI makes it well-suited for enterprise and higher education environments where BYOD control is a standard requirement and per-user licensing is not viable.

Spec Sheet PDF Download

View the Extron DTP3 CrossPoint 884 Product Page for Spec Sheet (PDF)
