Extron DTP3 CrossPoint 622 IPCP A SL 4K/60 Presentation Matrix Switcher Control Processor, Amplifier and ShareLink

Product Overview

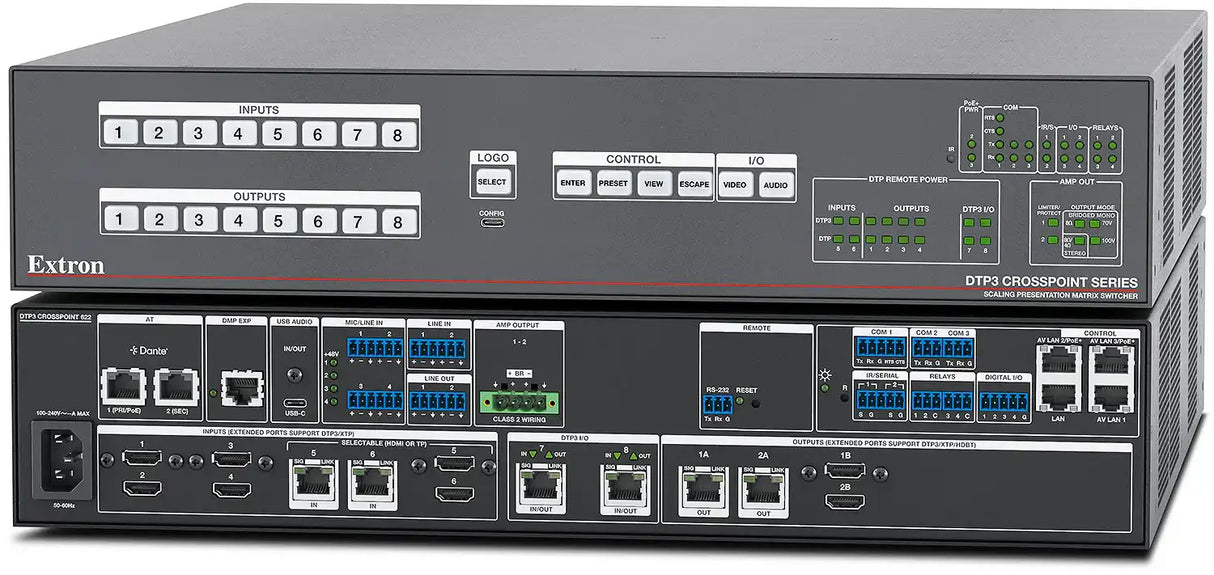

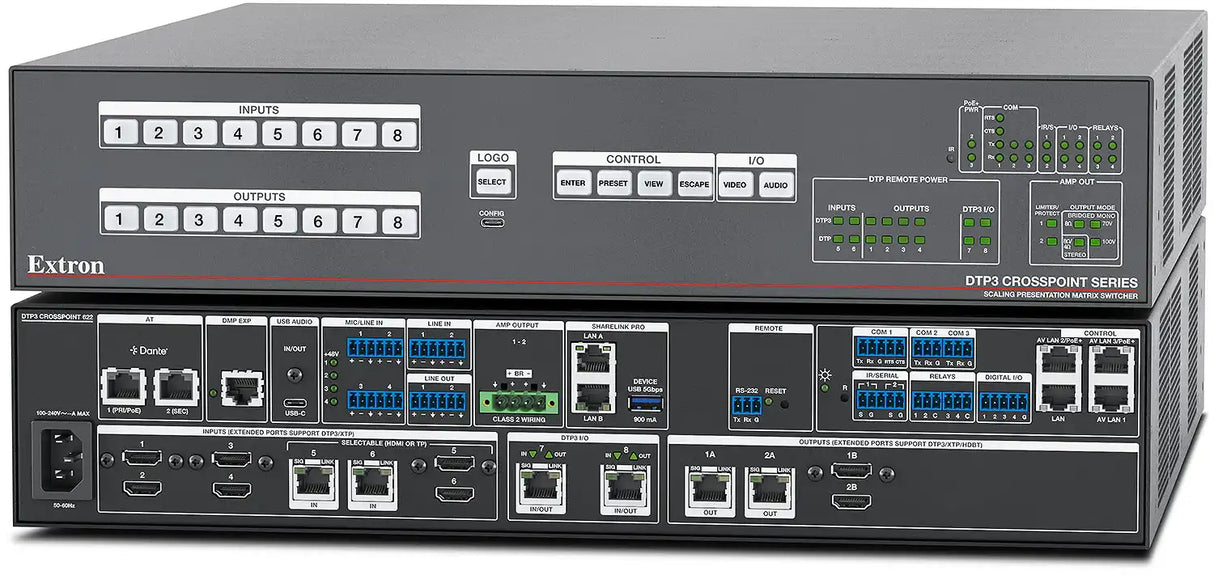

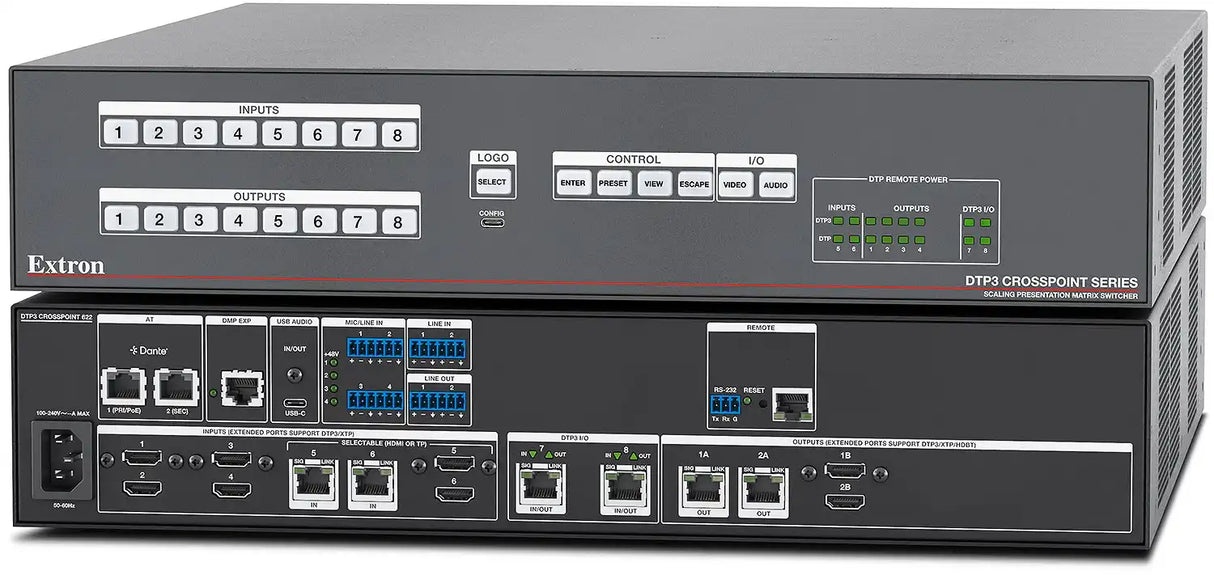

The Extron DTP3 CrossPoint 622 IPCP A SL is a configurable 4K/60 presentation matrix switcher that combines a control processor, 200W Class D amplifier, Dante audio networking, and the Extron ShareLink Pro wireless presentation system in a single 2U rack enclosure. It accepts up to eight inputs — four HDMI and four selectable HDMI or DTP3 — and delivers to two HDMI and two DTP3 outputs, with two reversible I/O ports that scale the matrix from 6x4 to 8x2. The SL designation indicates that the ShareLink Pro wireless content sharing gateway is included in the chassis, eliminating the need for a separate wireless presentation device.

Product Description

The DTP3 CrossPoint 622 IPCP A SL integrates the Extron ShareLink Pro wireless presentation system directly into the switcher, allowing up to four simultaneous wireless content streams from laptops, mobile devices, and room cameras. ShareLink Pro supports Miracast, WebShare browser-based sharing, and ConferenceShare for Microsoft Teams and Zoom — participants can share content wirelessly to the room display from any device without a cable or app installation. A moderator mode allows the room host to control which streams are displayed. All wireless content is encrypted with 128-bit AES to protect sensitive information in corporate and government environments.

The integrated IPCP Pro 360MQ xi control processor (2 GB RAM, 8 GB flash) manages room automation, scheduling, and device control within the same chassis. A 3-port AV LAN switch with PoE+ powers and connects touch panels and networked room devices without a separate switch. All inputs and outputs support 4K/60 4:4:4 video, with Extron Vector 4K scaling and logo keying on every output.

The ProDSP 64-bit audio processor provides eight channels of acoustic echo cancellation, supporting conferencing use cases where the room display and speakers are also used for far-end audio. Four mic/line inputs with 48V phantom power connect wired condenser microphones directly. The 200W Class D amplifier drives stereo 8Ω loads at 100W per channel or a bridged mono 70V/100V distributed system at 200W. Dante 32x32 with AES67 enables IP audio routing, and a USB-C audio interface brings laptop audio into the DSP chain.

DTP3 ports extend video, audio, and RS-232 up to 330 feet over shielded CAT 6A. HDCP 2.3 is supported on all HDMI connections. Serial, relay, and digital I/O ports handle legacy device and automation integration.

Key Features

• ShareLink Pro wireless presentation built in: Up to 4 simultaneous streams; supports Miracast, WebShare, and ConferenceShare for Teams and Zoom.
• 128-bit AES encryption: Secures all wireless content sharing for corporate and sensitive environments.
• Moderator and collaboration modes: Room host can manage which wireless streams appear on the display.
• Configurable 6x4 to 8x2 matrix: Four HDMI inputs plus four selectable HDMI/DTP3 inputs; two HDMI and two DTP3 outputs; two reversible I/O ports.
• 4K/60 4:4:4 throughout: All inputs and outputs carry full 4K/60 with HDR and Deep Color.
• Vector 4K scaling on all outputs: Independent per-output scaling with logo keying.
• DTP3 extension up to 330 ft: Extends HDMI, audio, and RS-232 over shielded CAT 6A — no separate extenders needed.
• IPCP Pro 360MQ xi control processor: 2 GB RAM, 8 GB flash; full room control and automation within the chassis.
• 200W Class D amplifier: Stereo 100W/ch into 8Ω or bridged mono 200W at 8Ω, 70V, or 100V.
• 64-bit ProDSP with 8-channel AEC: Acoustic echo cancellation, EQ, compression, and delay for conferencing and reinforcement.
• 4 mic/line inputs with 48V phantom power: Direct wired condenser microphone connection.
• Dante 32x32 with AES67: IP audio networking for facility-wide audio routing.
• USB-C audio interface: Laptop audio into the DSP without a separate adapter.
• 3-port AV LAN switch with PoE+: Onboard network switching for touch panels and room devices.
• HDCP 2.3 compliant: Full support for encrypted 4K content on all HDMI connections.

Technical Specifications

Typical Application

The DTP3 CrossPoint 622 IPCP A SL is ideal for BYOD-heavy conference rooms where users routinely need to share content wirelessly from personal laptops or mobile devices. In a typical deployment, wired inputs handle the videoconference codec and a permanently installed PC, while the ShareLink Pro handles all wireless sharing — participants open a browser or use Miracast to share without any app or dongle. The moderator at the head of the table controls which streams appear on the room display and on a DTP3-extended screen at the other end of the room. The 70V amplifier output drives ceiling speakers for conferencing audio, and the IPCP Pro 360MQ xi controls display power, shading, and room lighting through a wall-mount touch panel.

Spec Sheet PDF Download

Download the Extron DTP3 CrossPoint 622 Spec Sheet (PDF)
