Extron DTP3 CrossPoint 622 IPCP A 4K/60 Presentation Matrix Switcher Control Processor and Amplifier

Product Overview

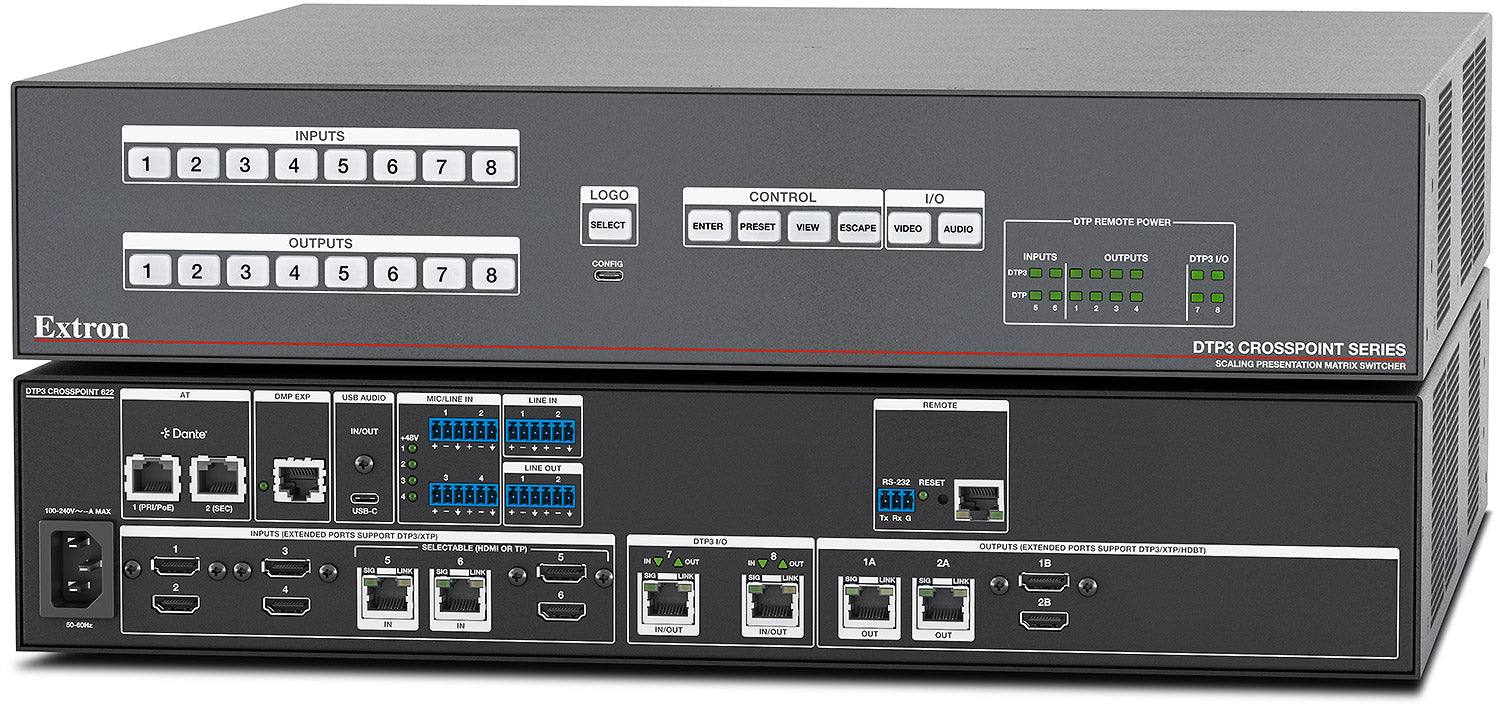

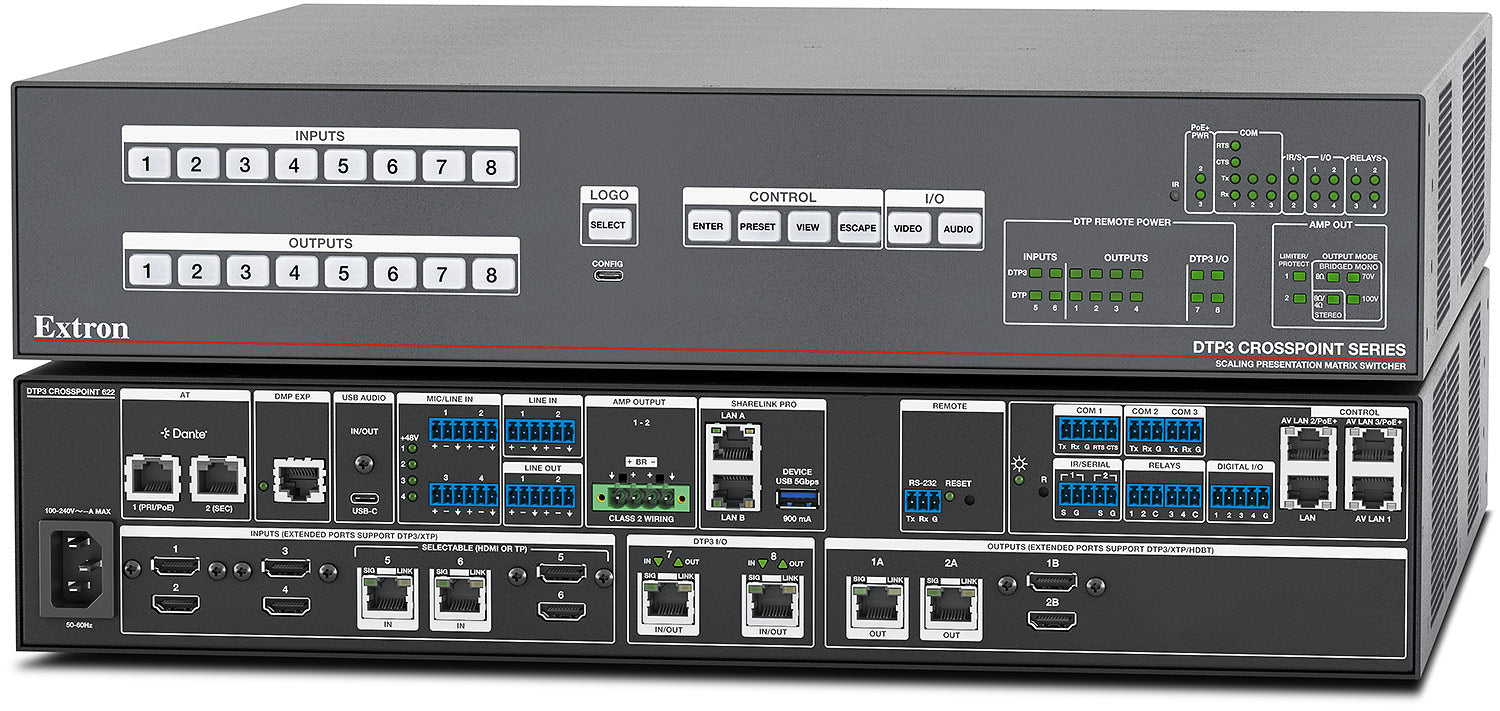

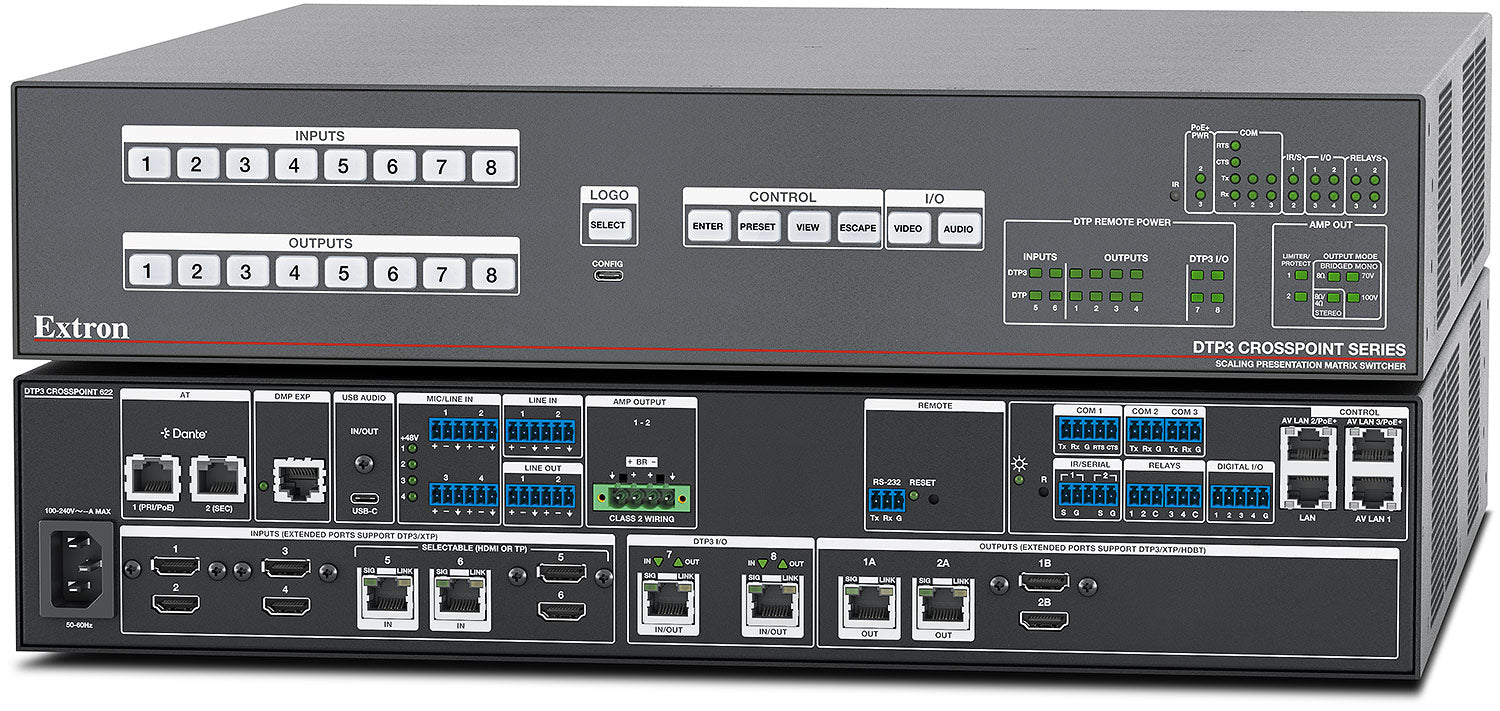

The Extron DTP3 CrossPoint 622 IPCP A is a configurable 4K/60 presentation matrix switcher that integrates a control processor, a 200W Class D amplifier, and Dante audio networking into a single 2U rack enclosure. Designed for large conference rooms, lecture halls, and multi-display AV environments, it accepts up to eight inputs — four HDMI and four selectable HDMI or DTP3 — and delivers to two HDMI and two DTP3 outputs, with two reversible I/O ports that allow the matrix to scale from 6x4 to 8x2. DTP3 ports extend video, audio, and RS-232 up to 330 feet over shielded CAT 6A cable, eliminating the need for separate signal extension equipment.

Product Description

At the core of the DTP3 CrossPoint 622 IPCP A is the Extron IPCP Pro 360MQ xi control processor, which features 2 GB RAM and 8 GB of onboard flash storage and manages all system automation, scheduling, and device control from within the same chassis. A built-in 3-port AV LAN switch with PoE+ powers and connects room touch panels, occupancy sensors, and networked AV devices without requiring a separate network switch in the rack.

All inputs and outputs support resolutions up to 4K/60 4:4:4, and every output is independently driven by Extron Vector 4K scaling with logo keying, ensuring consistent image quality regardless of source resolution. The integrated ProDSP 64-bit audio digital signal processor provides eight channels of acoustic echo cancellation (AEC), enabling clean conferencing audio in rooms where the display is also used as a speakerphone source. Four microphone/line inputs with 48V phantom power allow direct connection of wired condenser microphones without a separate preamp or mixer.

The 200W Class D amplifier operates in stereo mode at 100W per channel into 8Ω loads, or in bridged mono mode at 200W into 8Ω, 70V, or 100V distributed speaker lines — making it suitable for both low-impedance near-field speakers and commercial 70V/100V ceiling speaker systems. Dante 32x32 audio networking with AES67 compatibility allows the switcher to share audio across an IP network with other Dante-enabled devices. A USB-C audio interface enables laptop audio to be brought into the DSP signal chain without a separate USB audio adapter.

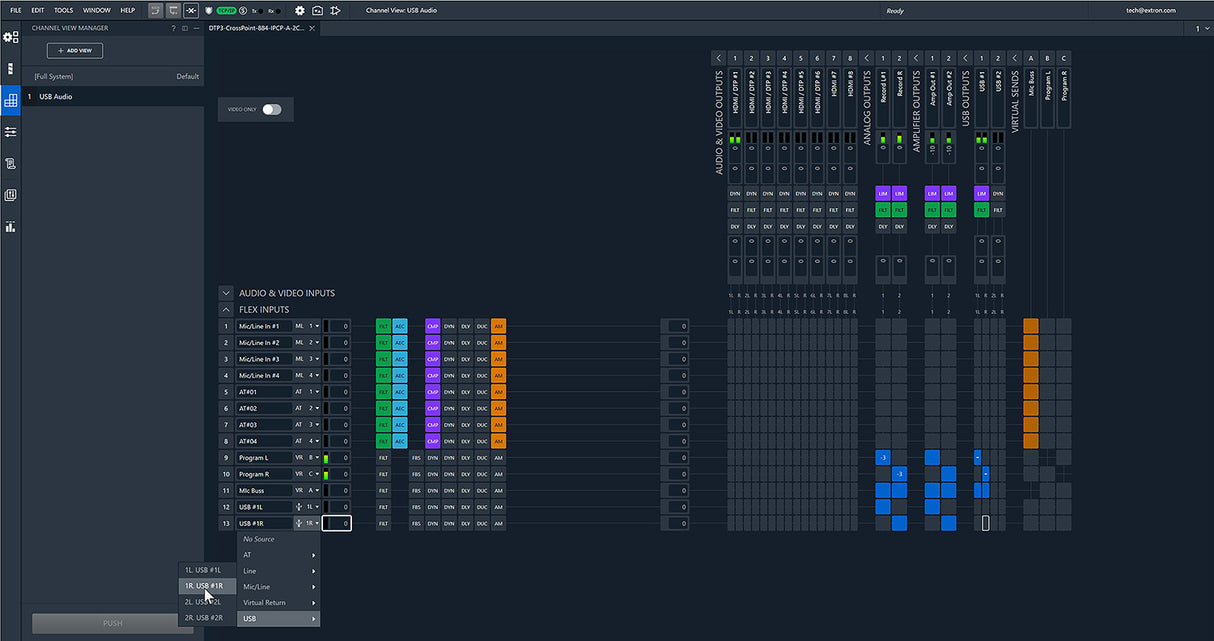

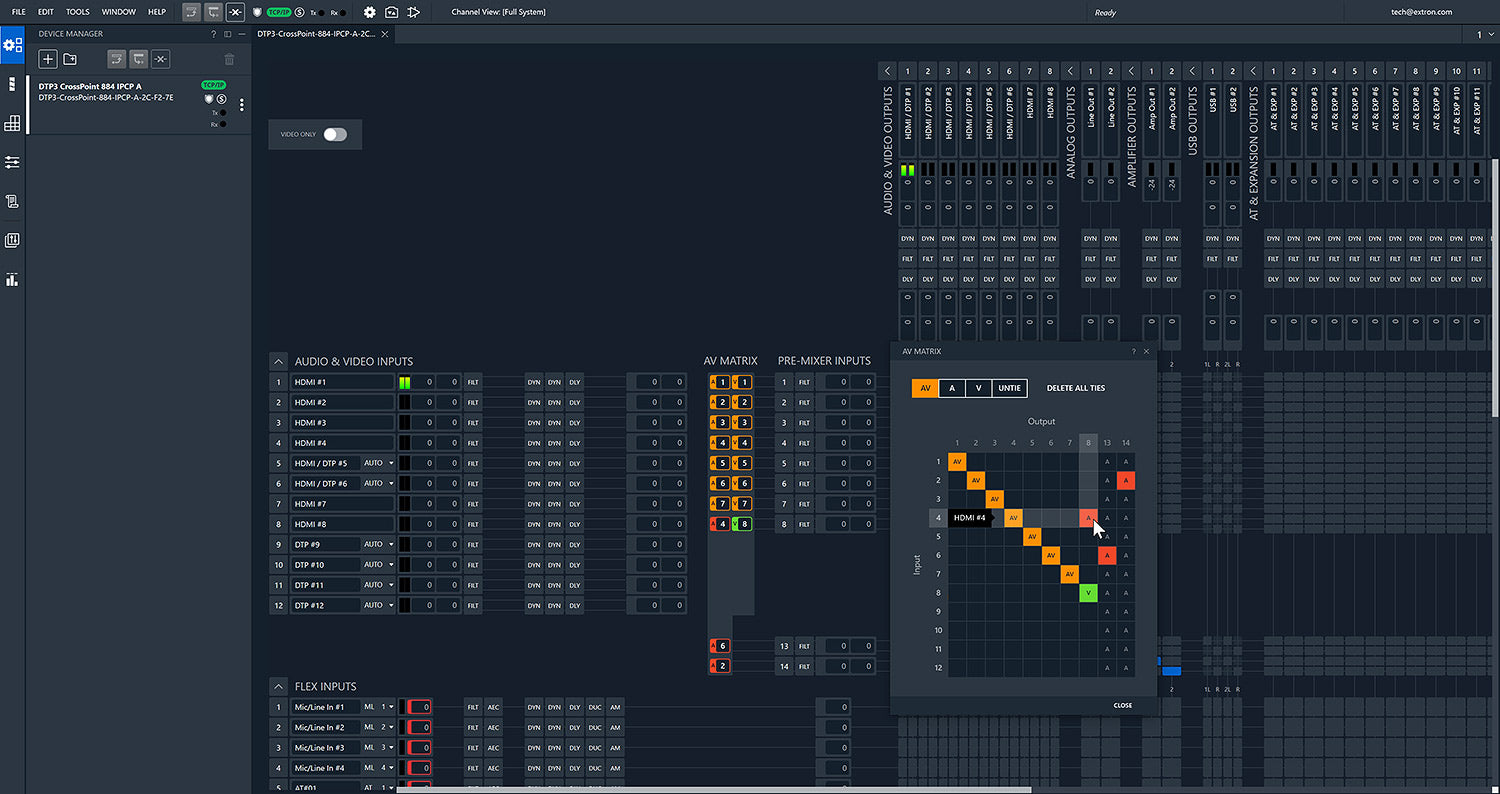

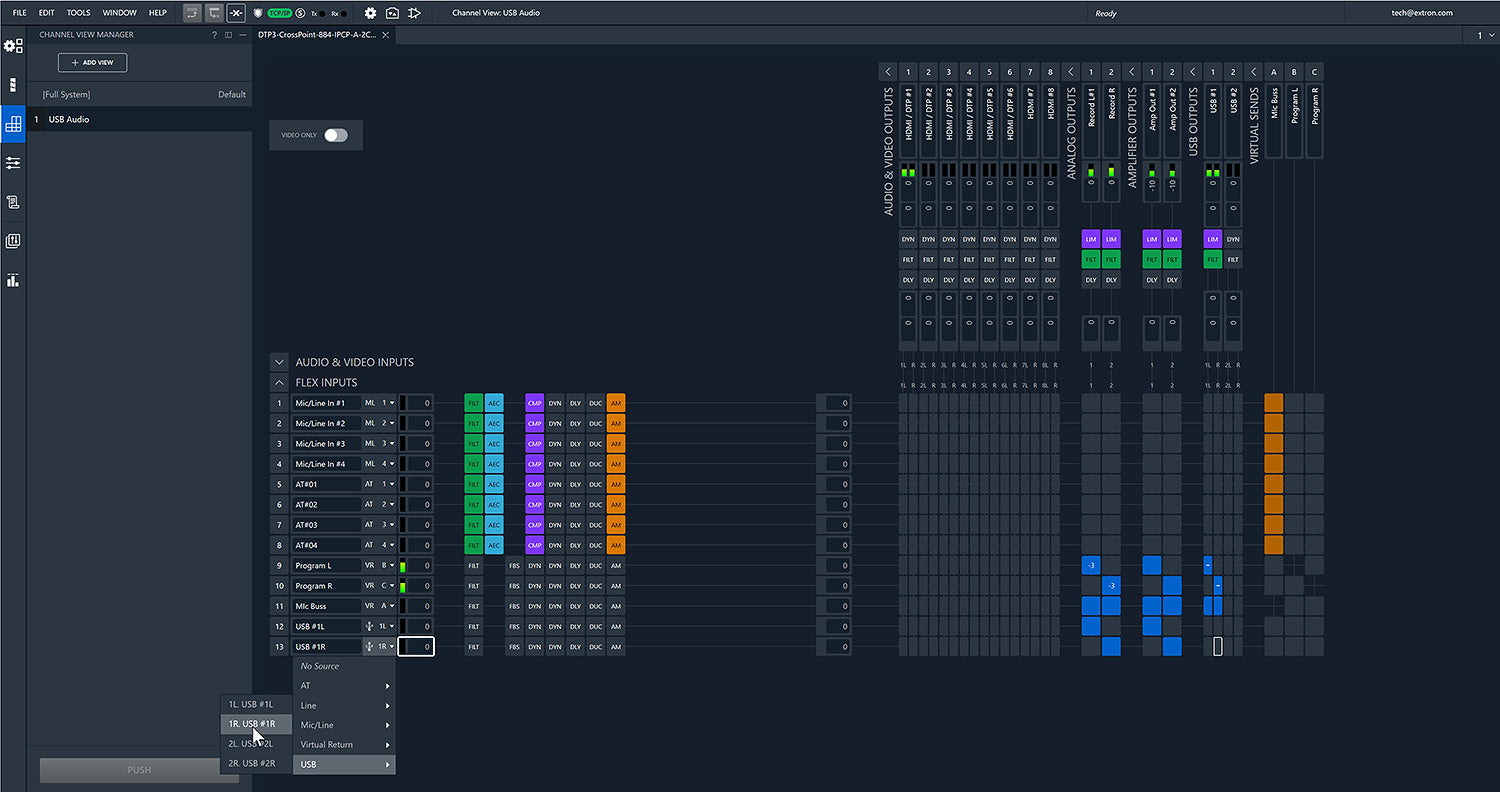

HDCP 2.3 support on all HDMI inputs and outputs ensures compatibility with 4K UHD content from Blu-ray players, streaming devices, and protected media sources. The DTP3 CrossPoint 622 IPCP A is programmed using Extron Control Software Suite and integrates natively with Extron TouchLink Pro touch panels, room scheduling systems, and IP Link Pro network control devices.

Key Features

• Configurable 6x4 to 8x2 matrix: Four HDMI inputs plus four selectable HDMI/DTP3 inputs; two HDMI and two DTP3 outputs; two reversible I/O ports for flexible topology.
• 4K/60 4:4:4 signal support: All inputs and outputs carry full 4K/60 with 4:4:4 chroma, HDR, and Deep Color throughout the signal path.
• Vector 4K scaling on all outputs: Independent per-output scaling with logo keying ensures clean image delivery to displays of any resolution.
• DTP3 extension up to 330 ft: Extends HDMI, audio, and RS-232 over a single shielded CAT 6A cable — no baluns, no separate extenders required.
• IPCP Pro 360MQ xi control processor: 2 GB RAM, 8 GB flash; handles all room control, scheduling, and device automation from within the chassis.
• 200W Class D amplifier: Stereo 100W/ch into 8Ω or bridged mono 200W at 8Ω, 70V, or 100V — supports near-field and distributed speaker systems.
• 64-bit ProDSP with 8-channel AEC: Full-featured audio DSP with acoustic echo cancellation, EQ, compression, and delay for conferencing and reinforcement.
• 4 mic/line inputs with 48V phantom power: Direct connection for wired condenser microphones without external preamps.
• Dante 32x32 with AES67: IP audio networking for routing audio across facilities and integrating with third-party Dante devices.
• USB-C audio interface: Connects laptop audio directly into the DSP, eliminating the need for a separate USB audio adapter.
• 3-port AV LAN switch with PoE+: Powers and connects touch panels and networked room devices without an external network switch.
• HDCP 2.3 compliant: Handles encrypted 4K content from streaming devices, Blu-ray players, and protected media sources.
• Serial, relay, and digital I/O control ports: Built-in control ports for legacy device integration and room automation triggers.
• Native Extron control integration: Works directly with TouchLink Pro panels, IP Link Pro devices, and Extron room scheduling without third-party middleware.

Technical Specifications

Typical Application

The DTP3 CrossPoint 622 IPCP A is well suited for large conference rooms and boardrooms where a single rack unit must handle matrix switching, display driving, microphone mixing, conferencing audio, speaker amplification, and room control. A typical deployment connects a laptop, videoconference codec, and wireless presentation receiver to HDMI inputs, routes signals to a room display and a DTP3-extended overflow monitor in an adjacent area, and drives a pair of ceiling speakers through the 70V amplifier output. The IPCP Pro 360MQ xi controls the room display, motorized shades, and lighting via serial and relay ports, while a TouchLink Pro panel provides one-touch meeting start. Dante audio links the switcher to a digital ceiling mic array in a larger auditorium configuration.

Spec Sheet PDF Download

Download the Extron DTP3 CrossPoint 622 Spec Sheet (PDF)
