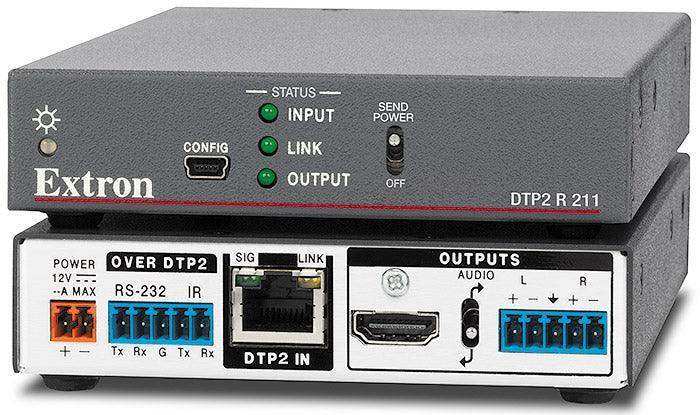

Extron DTP2 R 211 4K/60 HDMI DTP2 Receiver with Audio De-Embedding

The Extron DTP2 R 211 is a long-distance digital twisted pair receiver that receives HDMI, analog audio, and bidirectional RS-232 and IR control signals up to 330 feet (100 meters) over shielded CATx cable from Extron DTP2-enabled products. Supporting 4K/60 at 4:4:4 chroma sampling and HDCP 2.3, with stereo audio de-embedding and remote power capability, it is designed for discreet placement behind flat-panel displays, in lecterns, and in equipment racks as part of a commercial DTP2 AV distribution system.

Product Overview

The Extron DTP2 R 211 is a 4K/60 HDMI DTP2 receiver for commercial AV installations requiring long-distance signal extension over shielded CATx infrastructure. It receives HDMI video at resolutions up to 4K/60 at 4:4:4 from any DTP2-enabled Extron product — including the DTP CrossPoint matrix switchers and the IN1808 presentation switcher — across runs up to 330 feet (100 m). The stereo audio output is selectable between de-embedded digital audio or pass-through analog, delivered on a captive screw connector without a separate cable run. The quarter rack width, 1-inch high metal enclosure and remote power capability from a DTP2-enabled source make it practical for behind-display and lectern installations where space and cabling are constrained.

Product Description

The DTP2 R 211 is the display-end component in an Extron DTP2 signal extension system, receiving the full HDMI 2.0b signal — including HDR, Deep Color up to 12-bit, HD lossless audio formats, and CEC pass-through — over a single shielded twisted pair cable run. HDCP 2.3 compliance maintains content protection interoperability with all earlier HDCP versions, and HDCP Visual Confirmation outputs a full-screen green signal if protected content is received by a non-compliant display. EDID Minder continuously maintains DDC communication between the source and display across the extension link to prevent signal handshake failures on power-up or input switch. Bidirectional RS-232 and IR pass-through allow a control system to reach and operate display devices over the same cable, eliminating a separate control cable run. The DTP2 R 211 can be remotely powered by a DTP2-enabled source product over the twisted pair connection, and it can also be configured to power a connected DTP2 transmitter — allowing both endpoints to share a single power supply. Extron recommends XTP DTP 24 shielded twisted pair cable, certified to 475 MHz and engineered for DTP signal integrity. A front panel USB port provides access for configuration and firmware updates. Available at Creation Networks.

Key Features

• 330-Foot (100 m) HDMI Extension over Shielded CATx — Receives HDMI video, analog audio, and bidirectional RS-232/IR control signals over a single shielded CATx cable run for economical long-distance AV distribution.
• 4K/60 at 4:4:4 Support — Supports 4K/60 at full 4:4:4 chroma sampling when paired with a matching DTP2-enabled source product for maximum image fidelity in 4K commercial installations.
• Stereo Audio De-Embedding — The captive screw stereo audio output is selectable between de-embedded digital audio or pass-through analog from a DTP-enabled product, eliminating a separate audio cable run.
• HDCP 2.3 Compliant — Ensures display of content-protected 4K video and maintains backward interoperability with earlier HDCP versions for reliable encrypted content distribution.
• HDR and Deep Color Support — Full HDMI 2.0b compliance delivers HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats for high-performance display installations.
• Remote Power Capability — Can be powered remotely over the twisted pair connection by a DTP2-enabled product, and can be configured to supply power to a connected DTP2 transmitter for shared single-supply installations.
• Bidirectional RS-232 and IR Pass-Through — Transmits control signals alongside the video signal, allowing a control system to operate remote displays without additional cabling.
• EDID Minder — Continuously maintains DDC communication between source and display across the DTP2 link to prevent signal handshake failures at power-up or input change.
• HDCP Visual Confirmation — Outputs a full-screen green signal to non-HDCP-compliant displays when encrypted content is received, providing immediate on-screen verification of content protection status.
• Quarter Rack Width, 1-Inch High Metal Enclosure — Low-profile design supports discreet behind-display, lectern, or rack installation in commercial AV deployments.
• Front Panel USB Configuration Port — Provides convenient access for device information retrieval and firmware updates during installation and service.
• JITC Certified — Completed interoperability and information assurance testing for government and mission-critical commercial AV environments.
• LockIt HDMI Cable Lacing Brackets Included — Secures HDMI connector at the output to prevent accidental disconnection in permanent installations.
