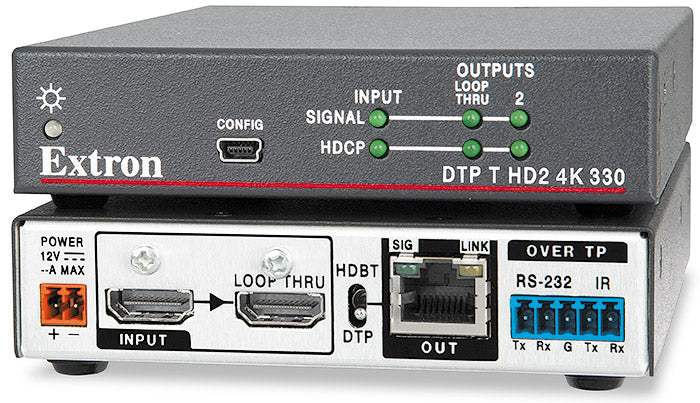

Extron DTP T HD2 4K 330 HDMI Tx - 330 feet (100 m)

The Extron DTP T HD2 4K 330 is a long distance transmitter for sending HDMI with embedded audio, and bidirectional RS‑232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable to Extron DTP^® 330-enabled products. It provides one HDMI input with loop-through to support local monitoring of digital video, and one DTP output. The DTP T HD2 4K 330 supports video signals at resolutions up to 4K. It offers many integrator-friendly features such as EDID Minder^®, Key Minder^®, bidirectional RS‑232 and IR pass-through for remote AV device control, and compatibility with HDBaseT-enabled devices. The compact enclosure size and remote power capability make the DTP T HD2 4K 330 ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.

The HDCP-compliant DTP T HD2 4K 330 enables the reliable transmission of HDMI signals, supporting Deep Color up to 12‑bit, and embedded HD lossless audio formats. The DTP T HD2 4K 330 supports simultaneous transmission of bidirectional RS‑232 and IR signals from a control system for AV device control. For added installation flexibility, the transmitter can be remotely powered over the shielded twisted pair cable by a DTP 330-enabled product. This simplifies installation and allows both devices to share one power supply.

To enhance and simplify integration of sources and displays, and to help ensure optimal system performance, the DTP T HD2 4K 330 features two Extron-exclusive technologies: EDID Minder and Key Minder. EDID Minder manages EDID communication between the display devices and input source to ensure that the correct video formats are displayed reliably. For HDMI signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure the simultaneous distribution of source content to all displays. The DTP T HD2 4K 330 also automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.

The DTP output can be configured for compatibility with HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS‑232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable.

The DTP T HD2 4K 330 provides automatic input cable equalization up to 100 feet (30 meters) at 1920x1200 with 8‑bit color on Extron HDMI Pro Series cables. Input cable equalization restores and reshapes incoming HDMI signals, reducing the need for additional signal conditioning equipment by compensating for weak source signals or signal loss from a long input cable.

The DTP T HD2 4K 330 can be integrated with an Extron DTP CrossPoint^® Presentation Matrix Switcher, or other DTP 330-enabled products to support sources at remote locations. The transmitter is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low profile design of the DTP T HD2 4K 330 allows for discreet placement in lecterns and beneath tables.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Features

• Transmits HDMI plus control up to 330 feet (100 meters) over a shielded CATx cable — The DTP T HD2 4K 330 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Inputs: One HDMI with buffered input loop-through
• Output: One DTP^® 330 twisted pair output on RJ‑45
• Buffered HDMI input loop-through — The DTP T HD2 4K 330 features an active local HDMI output for local monitor support or system expansion.
• Supports computer and video resolutions up to 4K — Supports 4K/60 4:2:0 and 4K/30 4:4:4, maintaining superior image quality at the highest resolutions.
• Remote power capability — For simplified installation, the transmitter can be remotely powered by a DTP 330-enabled product over the twisted pair connection.
• Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CATx shielded twisted pair cable — The DTP T HD2 4K 330 fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
• Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• DTP output is compatible with HDBaseT-enabled devices — The DTP output can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals to an HDBaseT-enabled display.
• Supports multiple embedded audio formats — The DTP T HD2 4K 330 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Bidirectional RS‑232 and IR pass-through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
• Key Minder^® continuously verifies HDCP compliance — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to enable simultaneous distribution of a single source signal to two or more displays.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs or USB, providing valuable feedback to a system operator or helpdesk support staff.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.
• Automatic color bit depth management — The DTP T HD2 4K 330 automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.
• Automatic input cable equalization to 100 feet (30 meters) at 1920x1200 with 8‑bit color when used with Extron HDMI Pro cables — Cable input equalization optimizes signal performance for all HDMI signals, helping to ensure pristine image quality throughout DTP Systems. 4K and 2560x1600 @ 60 Hz resolutions are equalized to 50 feet (15 meters).
• Provides +5 VDC, 250 mA power on the local HDMI output for external peripheral devices
• Compatible with all DTP 330 Series receivers and DTP 330-enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP 330‑enabled products to meet application requirements.
• Front panel USB configuration port — Enables easy configuration without having to access the rear panel.
• LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ‑45 signal and link LED indicators for DTP port — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• Rack-mountable 1" (2.5 cm) high, quarter rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• External Extron Everlast™ power supply included, replacement part #70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

DTP T HD2 4K 330
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8 bits per color
Signal Type	HDMI 1.4, HDCP 1.4
Max. video data rate	10.2 Gbps (3.4 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock	300 MHz
Resolution range	Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling (*Reduced blanking)
Color bit depth	8, 10, or 12 bits — subject to the maximum data rate limit
Formats	RGB and YCbCr digital video
Standard	DVI 1.0, HDMI, HDCP, CEA-861E
Video input
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Number/signal type	1 single link HDMI (or DVI-D*)
Connector	1 female 19-pin HDMI type A
Input cable length	Up to 50' (15 m) with 225 MHz signal, 100' (30 m) with 165 MHz signal
Video output
Number/signal type	1 single link HDMI (Loop Thru) 1 DTP 330 (Output)
Interconnection between transmitter and receiver
Connector	1 RJ-45 jack
Termination standard	TIA/EIA T568B
Signal transmission distance
1080p @ 60 Hz	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
2560x1600 @ 60 Hz	Up to 330' (100 m) using STP cable or XTP DTP 24 cable
4K/UHD @ 30 and 60 Hz	Up to 330' (100 m) using STP cable or XTP DTP 24 cable
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair)
NOTE     Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance.
NOTE     Output mode signaling: DTP:             HDMI with embedded audio, analog audio, RS-232 and IR, and remote power HDBaseT:   HDMI with embedded audio plus RS-232 and IR
Control/remote
USB control port	1 front panel female mini USB B
USB standards	USB 2.0, low speed
Program control	Extron Simple Instruction Set (SIS™), Extron Product Configuration Software (PCS)
Communications — external device (RS-232/IR over TP)
NOTE     Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the DTP T HD2 4K series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any DTP T HD2 4K control port to the "Over TP" ports.
Serial control port	RS-232 via (1) 3.5 mm, 5-pole captive screw connector (connector is shared with IR control ports)
Baud rate and protocol	300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity
Serial control pin configuration	Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd
IR pass-through control port	(1) 3.5 mm, 5-pole captive screw connector (connector is shared with RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR control pin configuration	3 = Gnd, 4 = IR Tx, 5 = IR Rx
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	5.9 watts
Device and power supply	7.4 watts
Remote power budget	12 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	19.0 BTU/hr
Device and power supply	23.9 BTU/hr
Rack mount	Yes
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 6.0" D (1" high, 1/4 rack wide) 2.5 cm H x 10.9 cm W x 15.2 cm D (depth excludes connectors)
Product weight	0.5 lb (0.3 kg)
Shipping weight	1.0 lb (0.5 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE**, C-tick, FCC Class A**, ICES, VCCI
NOTE     **CE and FCC testing is conducted with STP cable.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(5383-D7)
