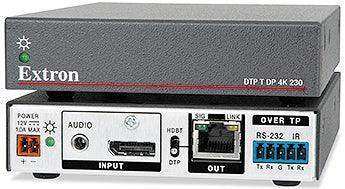

Extron DTP T DP 4K 230 DTP Transmitter for DisplayPort

The Extron DTP T DP 4K 230 is a DisplayPort transmitter for sending DisplayPort video, analog audio, and bidirectional RS-232 and IR control signals up to 230 feet (70 meters) over shielded CATx cable to Extron DTP-enabled products. Supporting resolutions up to 4K including 2560x1600, with HDBaseT output compatibility and remote power capability, it is designed for discreet placement in lecterns, beneath conference tables, and in AV furniture where bringing DisplayPort sources into a DTP distribution system is required.

Product Overview

The Extron DTP T DP 4K 230 is a compact DisplayPort DTP transmitter for commercial AV installations that need to incorporate DisplayPort sources into an Extron DTP signal extension and distribution system. It accepts a single DisplayPort input at resolutions up to 4K/60 4:2:0 or 4K/30 4:4:4, plus an independent 3.5mm stereo analog audio input, and transmits both signals up to 230 feet (70 m) over shielded CATx cable without a separate audio cable run. The DTP output is compatible with Extron DTP 230 Series receivers, DTP-enabled matrix switchers, and HDBaseT-enabled displays, making this transmitter a flexible addition to a wide range of commercial DTP systems. The 1-inch high, quarter rack width enclosure and remote power capability from a DTP-enabled source support clean, cable-efficient installation in lecterns, desks, and AV furniture.

Product Description

The DTP T DP 4K 230 provides a practical solution for integrators working with DTP-based AV systems who need to integrate DisplayPort sources — such as laptop connections at a conference table or lectern — without running a dedicated HDMI cable back to the equipment rack. DisplayPort Single Stream Transport (SST) at up to 10.8 Gbps handles 4K/60 at 4:2:0 and 4K/30 at 4:4:4, as well as computer resolutions up to 2560x1600 for wide-format display applications. An independent 3.5mm stereo mini jack accepts analog audio for simultaneous transmission over the same shielded twisted pair cable, eliminating a separate audio run from the source location. Bidirectional RS-232 and IR pass-through allow a control system to reach and operate remote display devices or source equipment through the same cable. The DTP output is configured to send video, embedded audio, and control to HDBaseT-enabled displays, allowing this transmitter to feed a broad range of display types in addition to dedicated Extron DTP receivers. Remote power from a DTP-enabled product eliminates the need for a local power supply at the table or lectern installation point. EDID and HDCP are actively buffered to maintain continuous communication between the DisplayPort source and the connected display. Available at Creation Networks.

Key Features

• 230-Foot (70 m) DisplayPort Extension over Shielded CATx — Transmits DisplayPort video, analog audio, and bidirectional RS-232/IR control over a single shielded CATx cable to Extron DTP-enabled products for economical, cable-efficient AV distribution.
• 4K Resolution Support — Supports 4K/60 at 4:2:0 and 4K/30 at 4:4:4, as well as computer resolutions up to 2560x1600 for high-resolution presentation and digital signage applications.
• DisplayPort SST at up to 10.8 Gbps — Handles DisplayPort Single Stream Transport data rates for full-bandwidth 4K source signal transmission over the DTP infrastructure.
• Analog Stereo Audio Input — Accepts a 3.5mm stereo mini jack audio signal for simultaneous transmission over the same twisted pair cable; audio is transmitted independently without being embedded on the video signal.
• HDBaseT-Compatible DTP Output — The DTP output can be configured to deliver video, embedded audio, RS-232, and IR to HDBaseT-enabled displays, extending compatibility beyond dedicated Extron DTP receivers.
• Remote Power Capability — Can be powered remotely by a DTP-enabled product over the twisted pair connection, eliminating the need for a local power supply at the table or lectern installation point.
• Bidirectional RS-232 and IR Pass-Through — Transmits control signals alongside video and audio for remote AV device operation without additional cabling.
• EDID and HDCP Pass-Through — Actively buffers DDC channels to maintain continuous EDID and HDCP communication between the DisplayPort source and the connected display.
• Compatible with DTP 230 Series Receivers and DTP-Enabled Products — Supports mixing and matching with Extron wallplate and desktop receivers and DTP matrix switchers to meet varied installation requirements.
• Quarter Rack Width, 1-Inch High Metal Enclosure — Low-profile form factor supports discreet installation in lecterns, beneath conference tables, and in AV furniture.
• JITC Certified — Completed interoperability and information assurance testing for government and mission-critical commercial AV environments.
• Extron Everlast Power Supply Included — External power supply (part #70-1174-01) provides worldwide power compatibility with high reliability and low power consumption; covered by 7-year warranty.
