Extron DTP CrossPoint 84 4K IPCP Q MA 70, 100 Watt 70 V Mono Amp, AV LAN, 8x4 Seamless 4K Scaling Presentation Matrix Switcher

The Extron DTP CrossPoint 84 4K IPCP Q MA 70 is an 8x4 seamless 4K presentation matrix switcher with integrated DTP signal extension, ProDSP 64-bit audio processing, a 100W Class D mono amplifier at 70V, and an IPCP Pro 355MQ xi quad-core control processor in a single 2U rack-mount enclosure. It is designed for AV integrators deploying complete conference room, multipurpose space, and divisible room AV systems where separate switcher, DSP, amplifier, and control processor devices would otherwise occupy multiple rack units.

Product Overview

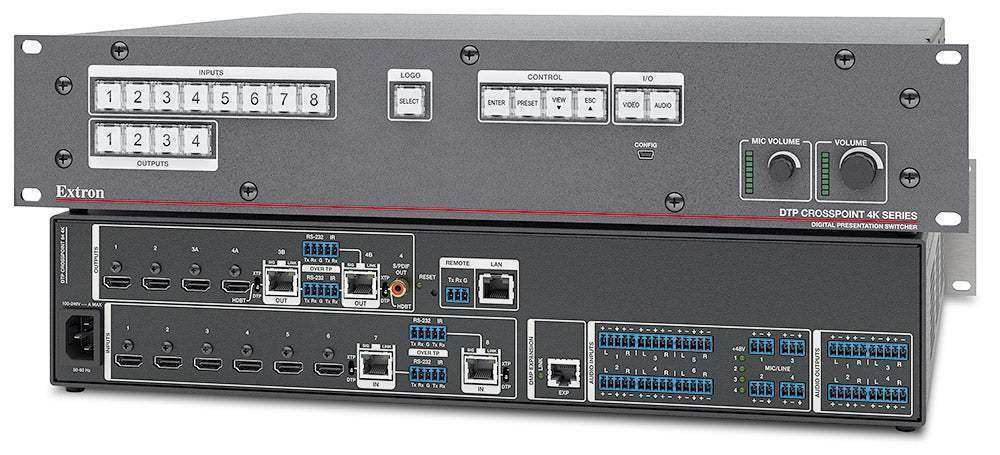

The Extron DTP CrossPoint 84 4K IPCP Q MA 70 is an 8x4 4K seamless presentation matrix switcher that consolidates switching, DTP signal extension, ProDSP audio processing, Class D amplification, and an integrated IPCP Pro xi control processor into a single 2U commercial AV enclosure. Six HDMI and two DTP twisted pair inputs route to two HDMI and two independently scaled DTP outputs at resolutions up to 4K/60, with the Vector 4K scaling engine providing seamless transitions and per-output resolution control. DTP outputs extend 4K video, audio, and bidirectional RS-232/IR control up to 330 feet (100 m) over shielded CATx cable to DTP 230/330 Series endpoints, XTP CrossPoint matrix switchers, and HDBaseT-enabled displays. This is the 60-1515-93 configuration: 100W mono 70V Class D amplifier with the IPCP Pro 355MQ xi quad-core control processor and three-port isolated AV LAN switch, available at Creation Networks.

Product Description

The DTP CrossPoint 84 4K IPCP Q MA 70 is configured for integrators who need a single-enclosure solution for 4K switching, long-distance signal extension, conferencing DSP, sound reinforcement, and AV control in corporate conference rooms, government meeting rooms, divisible spaces, and multi-display presentation environments. The 8x4 matrix routes any of the six HDMI or two DTP inputs to any of the two HDMI or two scaled DTP outputs independently, with DTP outputs driving compatible endpoints up to 330 feet over Extron XTP DTP 24 shielded CATx cable or any shielded twisted pair. The Vector 4K scaling engine handles precision upscaling and downscaling at each DTP output with selectable seamless transitions — freeze/cut, freeze/fade, cut-through-black, and fade-through-black — and per-output resolution selection from 640x480 to 4K/60. ProDSP delivers the same 64-bit floating-point audio signal processing found in the Extron DMP series, including four-channel AEC, an eight-group automixer, mic/line mixing with 48V phantom power across four inputs, ducking, EQ, delay, feedback suppression, and 32 configurable presets managed in DSP Configurator software. The integrated 100W mono Class D amplifier at 70V uses Extron CDRS ripple suppression technology for clean sound reinforcement from a ceiling speaker distribution system without a separate amplifier in the rack. The IPCP Pro 355MQ xi built-in control processor provides quad-core performance with 2 GB RAM, 8 GB Flash, a three-port isolated AV LAN switch, two RS-232 ports, one RS-232/422/485 port, four digital I/O, four relays, two IR ports, and one eBUS port — covering full AV control system requirements in a mid-size deployment. The DTP CrossPoint 84 4K is JITC certified and available as a DoDIN APL approved product for government and mission-critical AV environments; browse the full Extron lineup at Creation Networks.

Key Features

• 8x4 Matrix Switching: 6 HDMI + 2 DTP Inputs, 2 HDMI + 2 DTP Outputs — Routes any source to any display independently, supporting multi-display corporate and presentation room configurations with full crosspoint flexibility.
• Vector 4K Seamless Scaling Engine — Extron-exclusive 30-bit precision scaling with seamless switching transitions at each independently scaled DTP output; supports output resolutions from 640x480 to 4K/60.
• DTP Extension to 330 Feet (100 m) over Shielded CATx — Transmits 4K video, embedded audio, and bidirectional RS-232/IR to DTP 230/330 Series endpoints or XTP CrossPoint matrix switchers without a separate transmitter device at the rack.
• HDBaseT-Compatible DTP Outputs — DTP outputs can be configured to drive HDBaseT-enabled displays directly for digital video, audio, RS-232, and IR delivery without a dedicated receiver unit at the display end.
• ProDSP 64-Bit Floating Point Audio Processing — Full-featured DSP equivalent to the Extron DMP series: mic/line mixing, EQ, delay, feedback suppression, ducking, group masters, soft limits, and 32 presets managed in DSP Configurator software.
• Four-Channel Acoustic Echo Cancellation (AEC) — Independent AEC on four channels eliminates loudspeaker-to-microphone feedback for clean two-way audio in conferencing and hybrid learning environments.
• Eight-Group Automixer with Gated and Gain-Sharing Modes — Manages multiple microphone inputs automatically, reducing ambient noise pickup and operator intervention during live meetings and presentations.
• Four Mic/Line Inputs with 48V Phantom Power — Accepts condenser microphones and line-level sources for complete conference room audio integration without a separate mic preamp or mixer stage.
• Integrated 100W Class D Mono Amplifier at 70V — Drives 70V ceiling speaker systems using Extron CDRS ripple suppression technology for clean output without a separate rack-mount amplifier.
• IPCP Pro 355MQ xi Quad-Core Control Processor — Built-in processor with 2 GB RAM, 8 GB Flash, three-port isolated AV LAN switch, RS-232/422/485, digital I/O, relays, IR, and eBUS for complete AV system control.
• Integrated Three-Port AV LAN Switch — Isolates AV devices from the corporate network while enabling local control, monitoring, and Extron firmware updates over a dedicated AV LAN segment.
• HDCP 2.3 with Key Minder and SpeedSwitch Technology — Continuous HDCP authentication across all ports enables fast, reliable switching of encrypted 4K content without re-handshake delays.
• EDID Minder — Continuously manages EDID communication between all sources and displays to prevent signal handshake failures at power-up or source change.
• Digital Audio Expansion Port for DMP 128 Plus — Provides a 16x16 I/O channel transport interface to an Extron DMP 128 Plus Digital Matrix Processor for audio scalability in larger installations.
• DoDIN APL Approved and JITC Certified — Available as a DoD Information Network Approved Products List product; completed interoperability and information assurance testing for government deployments.
• Extron Everlast Internal Power Supply — Worldwide power compatibility with 7-year parts and labor warranty for long-term commercial AV installation confidence.

Technical Specifications

Typical Application

The Extron DTP CrossPoint 84 4K IPCP Q MA 70 is deployed in corporate conference rooms, government meeting facilities, divisible training rooms, and higher education lecture halls where 4K source switching, DTP signal extension, conferencing DSP, 70V sound reinforcement, and AV system control are required from a single 2U rack-mount device. AV integrators specify it in place of separate matrix switcher, DSP, amplifier, and control processor units. Government and DoD deployments benefit from DoDIN APL approval and JITC certification. Available at Creation Networks.

Spec Sheet PDF Download

Download the Extron DTP CrossPoint 84 4K Series Spec Sheet (PDF)
