Extron DTP CrossPoint 108 4K IPCP Q MA 70, LL UI Upgrade - 10x8 4K/60 HDMI to DTP Presentation Matrix Switcher

Product Description

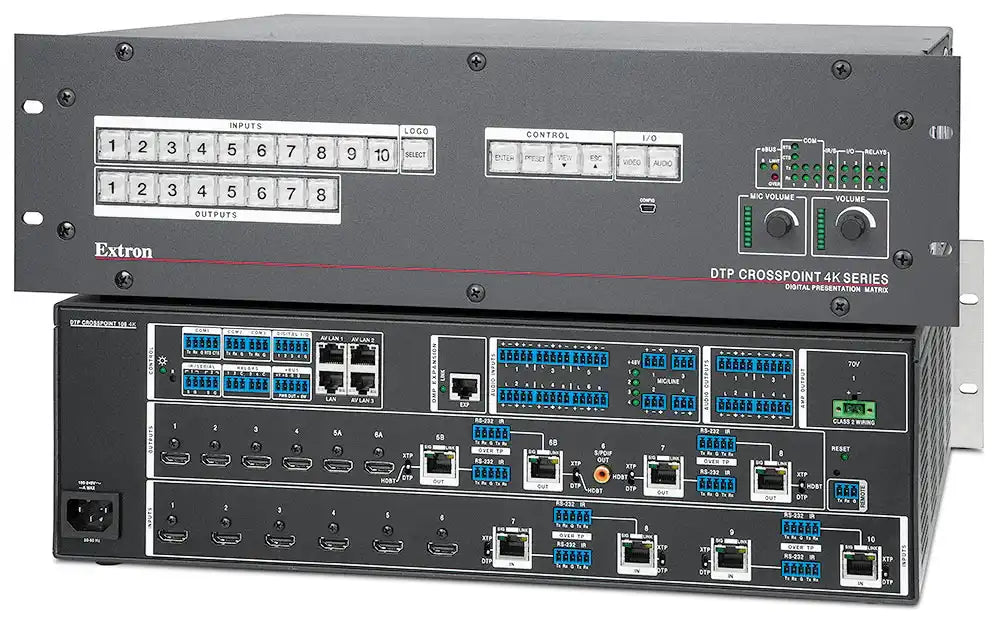

The Extron DTP CrossPoint 108 4K IPCP Q MA 70 is a 10x8 scaling presentation matrix switcher that integrates HDMI matrix switching, Vector 4K scaling, ProDSP audio processing, a 70-volt mono power amplifier, and a quad-core IP Link Pro control processor in one rack-mount chassis. It is built for commercial AV installations that distribute audio through 70-volt ceiling-speaker systems, which makes it well suited to conference rooms, training rooms, lecture halls, houses of worship, and multipurpose presentation spaces with distributed loudspeakers. The MA 70 configuration replaces the stereo amplifier found in SA models with a mono 70-volt amplifier sized for constant-voltage speaker lines.

All ten inputs and eight outputs support resolutions up to 4K, and the DTP matrix outputs use Extron's Vector 4K scaling technology for clean switching and scaled output across mixed display resolutions. Signal extension over shielded CATx cable lets integrators locate displays and projectors away from the rack when paired with compatible Extron DTP receivers. The built-in IP Link Pro xi quad-core control processor and dedicated AV LAN switch consolidate switching, scaling, audio processing, amplification, and AV control into a single unit, reducing rack hardware and wiring. This model includes the LinkLicense user interface upgrade, extending the on-board user interface capability of the control processor.

Key Features

• 10x8 Scaling Matrix — Routes up to ten HDMI sources to eight outputs with independent scaling, supporting large conference and presentation environments from a single chassis.
• Vector 4K Scaling — Extron Vector 4K scaling technology delivers clean switching and scaled output up to 4K so mixed-resolution displays and projectors all receive an optimized signal.
• Integrated 70V Mono Amplifier — The MA 70 configuration includes a mono 70-volt power amplifier designed to drive distributed constant-voltage ceiling-speaker systems directly from the switcher.
• ProDSP Audio Processing with AEC — On-board ProDSP signal processing with acoustic echo cancellation conditions program and conferencing audio for clear sound in collaborative spaces.
• IP Link Pro Control Processor — A built-in IP Link Pro xi quad-core control processor with a dedicated three-port AV LAN switch and standard Ethernet port manages the system and integrates with the wider AV control network.
• DTP CATx Signal Extension — DTP outputs extend video and audio over shielded CATx cable to remote displays when paired with compatible Extron DTP receivers, simplifying long cable runs.
• LinkLicense UI Upgrade Included — The included LinkLicense user interface upgrade extends the control processor's on-board user interface capabilities for custom control deployments.
• Rack-Mount Enclosure — The unit installs in a standard 19-inch equipment rack, consolidating switching, scaling, audio, amplification, and control into one rack space.

Technical Specifications

Frequently Asked Questions

What is the difference between the MA 70 and the SA configuration?

The MA 70 configuration includes a mono 70-volt amplifier for distributed constant-voltage ceiling-speaker systems, while the SA configuration includes a stereo amplifier for direct-drive room speakers. Creation Networks also stocks the comparable DTP CrossPoint 108 4K IPCP Q SA with LL UI upgrade and the DTP CrossPoint 108 4K IPCP Q MA 70 without the LL UI upgrade so you can match amplifier type and licensing to your project.

What does the MA 70 amplifier drive?

The integrated mono 70-volt amplifier is intended for 70V distributed audio systems, the constant-voltage ceiling-speaker approach common in commercial rooms with many speakers spread across a space. For direct 8-ohm stereo speakers, choose the SA configuration instead.

How far can displays be located from the switcher?

DTP outputs extend video and audio over shielded CATx cable to compatible Extron DTP receivers, allowing displays and projectors to be installed away from the equipment rack. Confirm the supported distance for your target resolution against the Extron specifications for the DTP receiver you deploy.

Does it integrate with third-party AV control systems?

Yes. The built-in IP Link Pro xi control processor, dedicated AV LAN switch, and standard Ethernet port allow the unit to operate as the system controller or to integrate into an existing AV control network over IP.

Is this unit rack-mountable?

Yes. It installs in a standard 19-inch equipment rack as a 3U device, consolidating switching, scaling, audio processing, amplification, and control into a single rack location.

What warranty and support apply?

This is genuine Extron commercial AV hardware backed by Extron's manufacturer warranty and technical support. Contact Creation Networks for warranty terms, lead times, and AV integration assistance, and browse the full Extron collection for compatible receivers and accessories.
