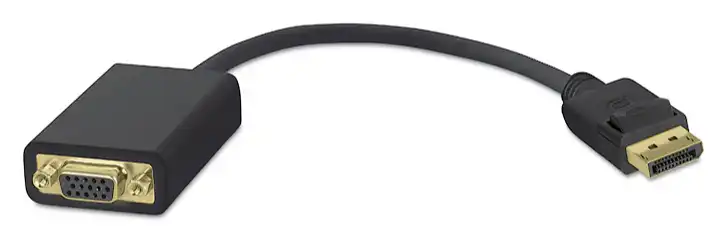

Extron DPM-VGAF DisplayPort Male to VGA Female Active Adapter Cable
The Extron DPM-VGAF is an active adapter cable that converts digital DisplayPort signals to analog VGA, enabling modern DisplayPort-equipped sources such as laptops, desktops, and media players to connect directly to legacy VGA displays, projectors, switchers, or other analog video inputs. Featuring integrated active signal conversion circuitry, it reliably transforms digital DisplayPort video into high-quality analog RGBHV VGA signals while passing EDID information from the VGA display to the DisplayPort source for automatic resolution detection and optimal output settings. This ensures seamless compatibility and performance in mixed digital-analog AV environments, including classrooms, conference rooms, training facilities, control systems, and installations where existing VGA infrastructure remains in use.
The adapter supports common resolutions up to 1920x1200 and 1080p, includes plug-and-play operation with power drawn from the DisplayPort source device—no external supply required—and provides gold-plated contacts for durable, low-resistance connections. Its compact design and unidirectional conversion make it an efficient bridging solution for integrators transitioning systems from analog to digital or maintaining hybrid setups without additional converters or complex configurations.
Features Chart
| Feature | Benefit |
|---|---|
| Active DisplayPort to VGA Conversion | Converts digital DP signals to analog VGA reliably |
| EDID Pass-Through | Enables source to detect display capabilities for correct resolution |
| Supports Resolutions up to 1920x1200 | Handles common HD and WUXGA formats for clear analog output |
| Gold-Plated Contacts | Ensures corrosion resistance and consistent long-term performance |
| Source-Powered Operation | Eliminates need for external power adapters |
| Plug-and-Play Design | Simplifies setup in new or legacy AV systems |
| Unidirectional Signal Flow | Optimized for DisplayPort source to VGA display applications |
| Compact Adapter Format | Minimizes clutter in rack, desktop, or furniture-integrated installations |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | DisplayPort Male (latching) |
| Connector B | VGA Female (15-pin HD) |
| Cable Type | Active adapter cable (DP to VGA) |
| Maximum Resolution | 1920 x 1200 @ 60 Hz; 1080p @ 60 Hz |
| Signal Conversion | Digital DisplayPort to analog RGBHV |
| EDID Support | Full pass-through from VGA display to DP source |
| Power Requirement | Drawn from DisplayPort source (no external power) |
| Applications | Connecting DP sources to VGA displays/projectors |
| Compatibility | Dual-mode DisplayPort sources; VGA analog inputs |
Compare Chart
| Aspect | Extron DPM-VGAF | Extron DPM-HDF 4K PLUS | StarTech DP to VGA Active Adapter |
|---|---|---|---|
| Conversion Type | Active DP to VGA (analog) | Active DP to HDMI (digital) | Active DP to VGA |
| Max Resolution | 1920x1200 / 1080p | 4K/60 @ 4:4:4 | 1920x1200 typical |
| EDID Pass-Through | Yes | Yes | Yes |
| Power Requirement | From source device | From source device | From source or external |
| Connector B | VGA Female | HDMI Female | VGA Male typical |
| Primary Use | Legacy VGA integration | Modern HDMI connectivity | General DP to VGA bridging |
| Gold-Plated Contacts | Yes | Yes | Yes in premium models |
| Length Options | Short adapter | 6" to 6' variants | Varies, often 6-12" |
FAQ
- What is the main purpose of the DPM-VGAF adapter? It actively converts DisplayPort digital video signals to analog VGA, allowing connection of modern DP sources to legacy VGA displays or projectors.
- What resolutions does this adapter support? It supports up to 1920x1200 @ 60 Hz and 1080p @ 60 Hz, suitable for most common HD and widescreen VGA applications.
- Does it require external power? No, the active circuitry is powered directly by the connected DisplayPort source device.
- How does EDID function work with this cable? EDID is passed from the VGA display to the DisplayPort source, enabling automatic selection of compatible resolution and refresh rate.
- Is this adapter suitable for high-resolution 4K sources? No, it is designed for analog VGA outputs up to 1920x1200; for 4K or higher digital signals, use HDMI or DisplayPort solutions.
- Can it be used bidirectionally? No, it is unidirectional, converting only from DisplayPort source to VGA display.
