Extron DPM-HDF 4K PLUS DisplayPort M-HDMI F Active Adapter

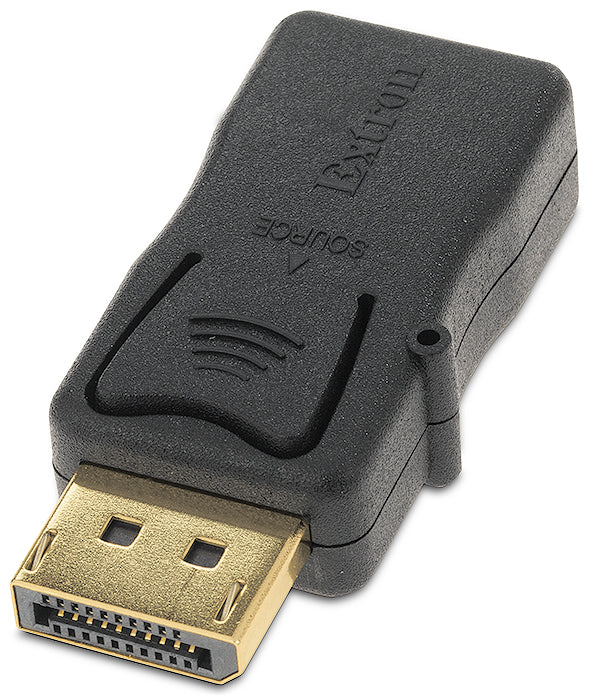

The Extron DPM-HDF 4K PLUS is an active DisplayPort to HDMI adapter for signals up to 4K/60 @ 4:4:4. Active circuitry converts DisplayPort packetized signals to TMDS for connection to HDMI devices. It features DisplayPort male and HDMI female connectors with gold-plated contacts and is powered by the connected DisplayPort source device. EDID, HDCP, and audio information are passed through between source and display. The DPM-HDF 4K PLUS is ideal for connecting DisplayPort-equipped sources to HDMI displays or other sink devices.
Features
- Provides connectivity between DisplayPort sources and HDMI displays and peripherals
- Provides active conversion of DisplayPort signals to HDMI
- Supports resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps
- Complies with VESA Interoperability Guidelines
- HDCP compliant
- Passes EDID information from HDMI display to the source
- Supports 8-channel LPCM and HBR audio
- Compatible with DisplayPort and Dual-Mode DisplayPort sources
- Latching DisplayPort connector
- Gold-plated contacts

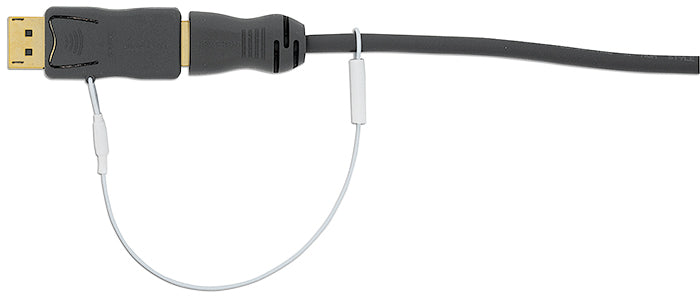

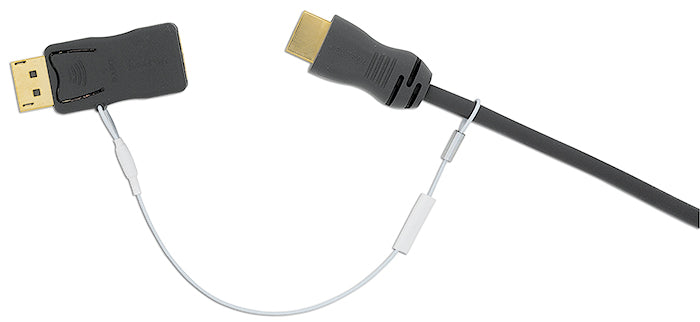

- Molded loop for use with optional LockIt Cable Adapter Tether
- LockIt Cable Adapter Tether available for secure attachment between adapter and cable, part #101-021-10
| DPM-HDF 4K PLUS Series | |||
 specification |
|||
|---|---|---|---|
|
|||
| |
24 Hz - 240 Hz for resolutions up to 32.4 Gbps | ||
| |
4:4:4, 4:2:2, or 4:2:0 | ||
| |
8, 10, or 12 bits per color | ||
| |
DisplayPort 1.2, HDMI 2.0b; HDCP 1.4 and 2.3 | ||
| |
18 Gbps (6.0 Gbps per color) | ||
| Performance/electrical | |||
| |
18 Gbps (6.0 Gbps per lane) | ||
| |
600 Mhz | ||
| |
Up to 1920x1200 or 1080p @ 60 Hz, 12-bit color 4K (4096x2160 @ 60 Hz 4:4:4) UHD (3840x2160 @ 60 Hz 4:4:4) |
||
| |
RGB and YCbCR digital video | ||
| |
DisplayPort 1.2, HDMI 2.0b, HDCP 1.4 and 2.2 | ||
| Cable - Electrical (DPM-HDF/0.5 4K PLUS and DPM-HDF/6 4K PLUS) | |||
| |
30 V | ||
| |
507 mW | ||
| |
100 ohms ±10 ohms | ||
| |
At 100-450 Mhz: <5 dB per 3 m At 0.45-1 GHz: <7.7 dB per 3 m At 1-2 GHz: <12.6 dB per 3 m At 2-3 GHz: <17.5 dB per 3 m At 3-4 GHz: <22.4 dB per 3 m At 4-5 GHz: <27.3 dB per 3 m At 5-7 GHz: <37.1 dB per 3 m |
||
| |
|||
| |
≤50 ps per 2 m | ||
| |
≤4 ns per 2 m | ||
| Adapter Physical Characteristics | |||
| |
|||
| |
|||
| |
1 DisplayPort | ||
| |
Male latching DisplayPort | ||
| |
|||
| |
1 HDMI | ||
| |
Female HDMI type A | ||
| |
Gold plated | ||
| Cable Physical Characteristics | |||
| |
|||
| |
|||
| |
1 DisplayPort | ||
| |
Male latching DisplayPort | ||
| |
|||
| |
1 HDMI | ||
| |
Female HDMI type A | ||
| |
Gold plated | ||
| |
|||
| |
Tinned copper | ||
| |
Tinned copper | ||
| |
Braid, tinned copper | ||
| |
PVC | ||
| |
28 AWG | ||
| |
30 AWG | ||
| |
|||
| |
|||
| |
0.30" (7.6 mm ±0.15 mm) | ||
| |
3.0" (76 mm) | ||
| |
6" long | ||
| |
|||
| |
0.30" (7.6 mm ±0.15 mm) | ||
| |
3.0" (76 mm) | ||
| |
6' long | ||
| General — physical characteristics | |||
| |
0.1 lbs (<0.1 kg) | ||
| |
c-UL, UL CL2, CSA FT-1 | ||
| |
|||
| |
Minimum: -25 °C Maximum: 75 °C |
||
| |
Maximum: 80 °C | ||
| |
Maximum: 80 °C | ||
| |
3 years | ||
|
|||
|
|||
| (6197-D3) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 26-712-01 | 1.0" (2.5 cm) | 6.0" (15.2 cm) | 9.0" (22.9 cm) | 0.04 lbs (0.02 kg) |
