Extron DMP 64 Plus C V 6x4 Digital Matrix Processor w/ AEC and VoIP
Product Overview

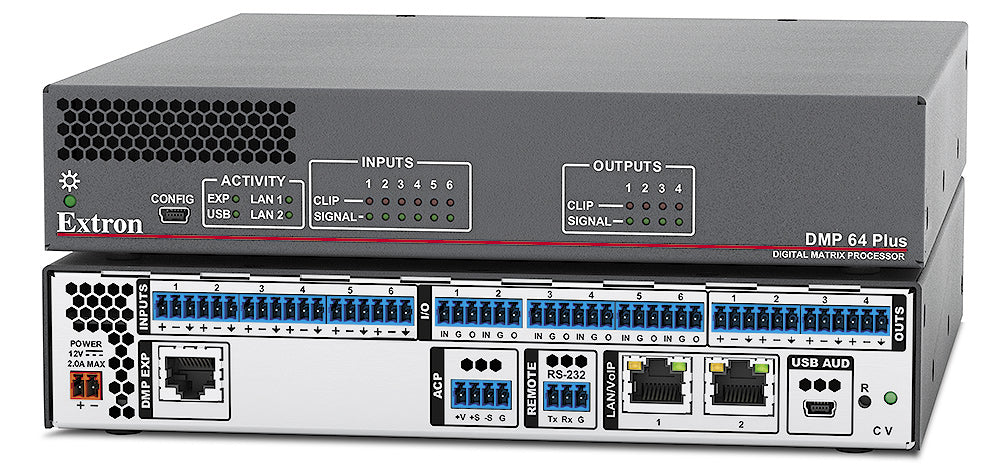

The Extron DMP 64 Plus C V is a compact 6x4 digital matrix processor with six DSP input channels including AEC, a flexible mix matrix, up to eight VoIP lines (SIP 2.0), a USB audio interface, an ACP bus for audio control panels, an expansion port, eight audio file players, and configurable macros — in a 1U half-rack enclosure. Available at Creation Networks.
Product Description
The DMP 64 Plus C V is a compact alternative to the DMP 128 Plus for smaller room installations requiring 6x4 analog I/O, six-channel AEC, VoIP integration, and flexible USB audio networking without a full-rack processor. The six input channels each include Extron AEC with advanced convergence for conferencing applications. Up to eight SIP 2.0 VoIP lines can be configured as individual extensions or as a VoIP farm for multi-room use. The flexible mix matrix routes analog, USB, VoIP, expansion bus, and virtual bus signals. The ACP bus connects Extron audio control panels; the expansion port links to a DTP CrossPoint or second DMP for I/O expansion. Eight audio file players support announcements and background music. Certified for Microsoft Teams Rooms and Zoom Rooms, and verified with Logitech RoomMate. Available at Creation Networks.
Key Features
- 6x4 ProDSP Digital Matrix Processor — Six mic/line inputs, four line outputs; 64-bit floating point DSP; 24-bit/48 kHz conversion; comprehensive processing blocks.
- Six-Channel AEC — Extron acoustic echo cancellation per input channel; advanced convergence algorithms for double-talk and wireless microphone scenarios; selectable noise cancellation.
- VoIP — Up to 8 Independent Lines (SIP 2.0) — Supports generic SIP 2.0 connectivity for room POTS/VoIP phone integration; configurable as individual extensions or a multi-room VoIP farm.
- Microsoft Teams Rooms and Zoom Rooms Certified — Verified with Logitech RoomMate for UC-integrated room deployments.
- USB Audio Interface — Bidirectional digital audio connection to soft-codec computers; configurable 0x8, 2x6, 4x4, 6x2, or 8x0 channel assignments.
- ACP Bus for Audio Control Panels — Local volume and mute control via Extron audio control panels without separate control system programming.
- Expansion Port — Bidirectional 16x16 digital audio transport to a DTP CrossPoint or another DMP over shielded CAT 6.
- Eight Audio File Players — Background music, announcements, and chime files played directly from the processor.
- Configurable Macros — Multi-step operations triggered from a single control event.
- 48V Phantom Power — Selectable per input for condenser microphone use.
- Compact 1U Half-Rack Enclosure — 1.7" H x 8.7" W x 9.5" D; half-rack width; credenza or under-table installation.
Technical Specifications
| DMP 64 Plus C V — Technical Specifications (SKU 60-1824-01) | |
|---|---|
| Analog I/O | 6 mic/line inputs; 4 line outputs; balanced/unbalanced; 3.5 mm captive screw |
| AEC | 6 independent channels; >200 ms tail length; up to 60 dB/sec convergence; up to 20 dB noise cancellation |
| VoIP | Up to 8 SIP 2.0 lines; wideband codec support; 1 RJ-45 port |
| USB audio | Bidirectional; configurable 0x8 to 8x0 channel assignments; USB 2.0 mini-B |
| Expansion port | 16 Rx / 16 Tx channels; 24-bit/48 kHz; shielded CAT 6 up to 10 m |
| File players | 8 audio file players |
| ACP bus | Audio control panel bus; supports up to 8 panels |
| DSP engine | ProDSP 64-bit floating point; 24-bit/48 kHz; frequency response 20 Hz–20 kHz ±0.2 dB |
| Certifications | Microsoft Teams Rooms Certified; Zoom Rooms Certified; Logitech RoomMate Verified |
| Control | Ethernet (RJ-45); RS-232; front-panel USB mini-B; ACP bus; digital I/O |
| Power | External Extron Everlast; 100–240 VAC; 15.6 W device |
| Enclosure | 1U, half rack; 1.7" H x 8.7" W x 9.5" D (4.3 x 22.1 x 24.1 cm); 2.35 lbs (1.07 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The DMP 64 Plus C V is deployed in smaller conference rooms and huddle spaces where six-channel AEC, VoIP integration, flexible 6x4 audio routing, and UC platform certification are priorities for a credenza-based or under-table AV system.
