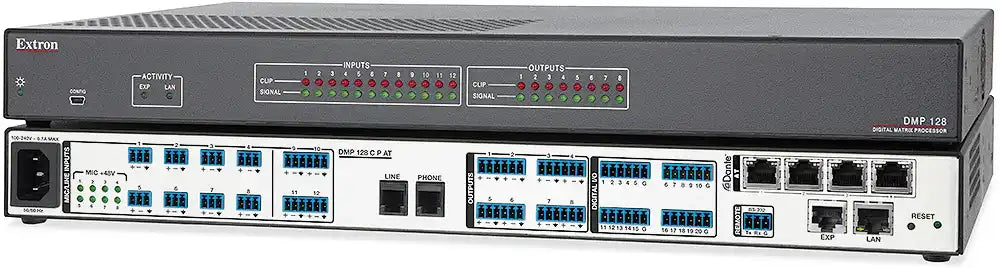

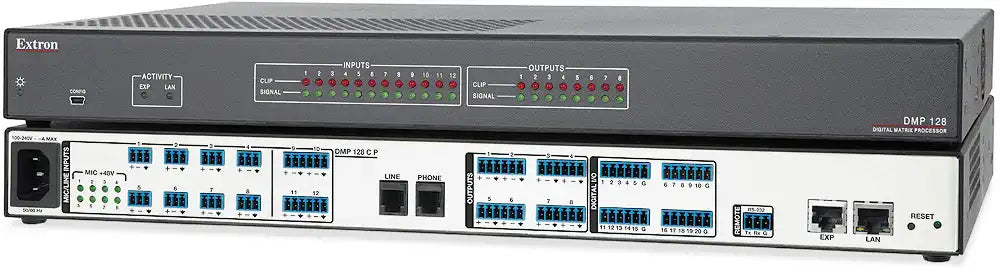

Extron DMP 128 C P - 12x8 ProDSP Processor with AEC and POTS

Product Description

The Extron DMP 128 C P ProDSP processor is a 12x8 digital matrix processor with eight independent channels of high-performance Acoustic Echo Cancellation and an integrated POTS analog telephone interface, engineered for audio conferencing and sound system management in commercial AV environments. Built on Extron ProDSP 64-bit floating point technology with 24-bit, 48 kHz audio conversion, this DSP processor combines 12 mic/line inputs, eight line outputs, an eight-group automixer, and comprehensive per-channel signal processing in a single 1U enclosure. It is well suited to boardrooms, courtrooms, council chambers, lecture halls, and conference facilities that require clear, echo-free conferencing audio and flexible signal routing.

The eight channels of AEC deliver convergence up to 60 dB/sec with selectable noise cancellation up to 20 dB, keeping far-end participants free of echo and background noise during teleconferences. The built-in POTS interface initiates and receives calls over a standard analog telephone line, allowing legacy telephony to participate in modern conferencing systems, while a digital audio expansion port supports integration with computer-based and soft codec applications. Comprehensive DSP, including filtering, equalization, dynamics, delay, mixing, and gain control on every channel, gives integrators precise control over each signal in the room.

The DMP 128 C P is configured and monitored using Extron DSP Configurator software, which provides drag-and-drop signal flow design, real-time metering, and preset management, and it integrates with Extron control processors over Ethernet and RS-232 for unified room control. Commercial AV buyers building a complete control and audio system can pair this processor with an Extron control processor such as the Extron IPCP Pro 350 xi, and can browse related audio and control hardware in the Extron collection.

Key Features

• 12x8 ProDSP Matrix Processing — Twelve mic/line inputs and eight line outputs are processed by an Extron ProDSP 64-bit floating point engine for flexible routing and mixing.
• Eight Channels of Acoustic Echo Cancellation — The DMP 128 C P provides eight independent AEC channels with convergence up to 60 dB/sec and selectable noise cancellation up to 20 dB for clear conferencing audio.
• Integrated POTS Telephone Interface — A built-in analog telephone hybrid initiates and receives calls over the public switched telephone network for hybrid conferencing.
• Eight-Group Automixer — The integrated automixer function with eight groups manages multiple open microphones and reduces noise in multi-talker environments.
• Comprehensive Per-Channel DSP — Filtering, equalization, dynamics, delay, mixing, and gain control are available on every channel for precise audio tuning.
• Digital Audio Expansion Port — A digital audio expansion port supports integration with computer-based and soft codec conferencing applications.
• Ethernet and Serial Control — Ethernet and RS-232 control interfaces allow the processor to integrate with Extron control processors and third-party control systems.
• DSP Configurator Software — Extron DSP Configurator software provides drag-and-drop setup, real-time monitoring, and preset management for fast deployment.

Technical Specifications

Frequently Asked Questions

How many channels of AEC does the DMP 128 C P include?

The DMP 128 C P provides eight independent channels of high-performance Acoustic Echo Cancellation, with convergence up to 60 dB/sec and software-selectable noise cancellation up to 20 dB for clear teleconferencing audio.

What is the POTS interface used for?

The integrated POTS analog telephone hybrid lets the processor initiate and receive calls over a standard public switched telephone network line, allowing analog telephony to be combined with the room's conferencing audio.

What sampling rate and DSP engine does the processor use?

The DMP 128 C P uses an Extron ProDSP 64-bit floating point DSP engine with 24-bit, 48 kHz uncompressed audio and 24-bit, 48 kHz A/D and D/A conversion.

How is the DMP 128 C P configured?

It is configured and monitored with Extron DSP Configurator software, which offers drag-and-drop signal flow design, real-time metering, and preset management. Ethernet and RS-232 control allow integration with Extron control processors.

Can the DMP 128 C P integrate with an Extron control system?

Yes. Over Ethernet and RS-232, it integrates with Extron control processors such as the IPCP Pro 350 xi for unified room control. See related products in the Extron collection.

What applications is the DMP 128 C P designed for?

It is designed for commercial conferencing and sound reinforcement in boardrooms, courtrooms, council chambers, lecture halls, and conference facilities that require echo-free audio, flexible routing, and analog telephone integration.
