Extron DMP 128 12x8 ProDSP Processor

Product Overview

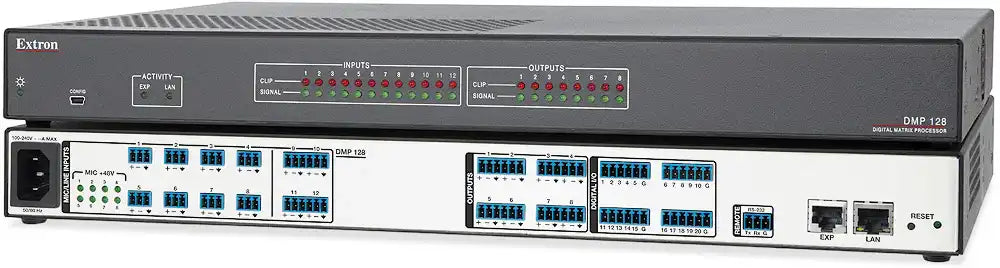

The Extron DMP 128 is a 12x8 ProDSP digital matrix processor featuring 64-bit floating point signal processing, automixing, an expansion port for linking two units, and optional AEC, Dante audio networking, and POTS analog telephone interfacing. Six models are available covering standard, AEC, AEC+POTS, and Dante-equipped variants. The DMP 128 is designed for boardrooms, conference centers, courtrooms, and presentation spaces requiring sophisticated audio routing and conferencing DSP in a 1U full-rack enclosure. Available at Creation Networks.

Product Description

The DMP 128 is the predecessor to the DMP 128 Plus and offers a proven 12x8 ProDSP platform with 12 mic/line inputs (8 with 48V phantom power) and 8 line outputs. The triple matrix design routes signals through an output matrix, a virtual bus matrix (8 virtual groups), and an expansion matrix connecting to a second DMP 128 or DTP CrossPoint via a 16x16 digital audio bus over shielded CAT 6. C models add 8-channel AEC with advanced convergence for double-talk and wireless microphone scenarios. C P models add POTS telephone interfacing with two RJ-11 ports. AT models add Dante audio networking (56 Rx / 24 Tx channels) and FlexInputs on inputs 1–8 to route Dante channels through full DSP processing including AEC. The automixer supports gated and gain sharing modes across up to 8 groups. DSP Configurator Software provides real-time metering, live configuration, and Building Blocks for fast setup. Available at Creation Networks.

Key Features

• 12x8 ProDSP 32/64-Bit Floating Point Processor — 12 mic/line inputs, 8 line outputs; 24-bit/48 kHz converters; comprehensive DSP tools including level, dynamics, EQ, filters, delay, ducking, loudness, and feedback suppression.
• Triple Matrix Design — Output matrix, 8 virtual buses, and expansion matrix for flexible routing, sub-mixing, and inter-unit signal transport.
• Expansion Port (16x16) — Links two DMP 128 units or a DTP CrossPoint matrix switcher via shielded CAT 6 for expanded I/O; 24-bit/48 kHz uncompressed.
• Automixer — 8 Groups — Gated and gain sharing modes; adjustable gating threshold, signal level reduction, and timing per channel for natural-sounding mic mix.
• 8-Channel AEC (C Models) — Advanced convergence for double-talk and wireless microphone scenarios; selectable noise cancellation up to 20 dB; >200 ms tail length.

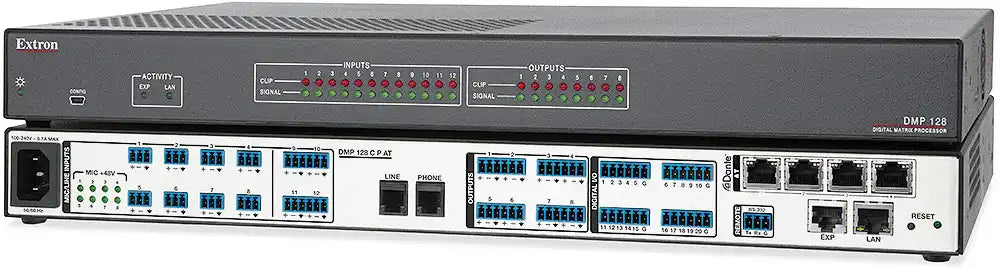

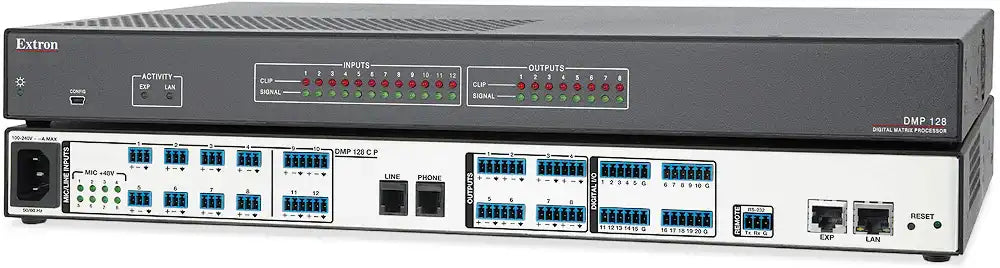

• POTS Telephone Interfacing (C P Models) — Two RJ-11 ports for POTS line and handset; PSTN and PBX compatible; dialer interface in DSP Configurator Software.

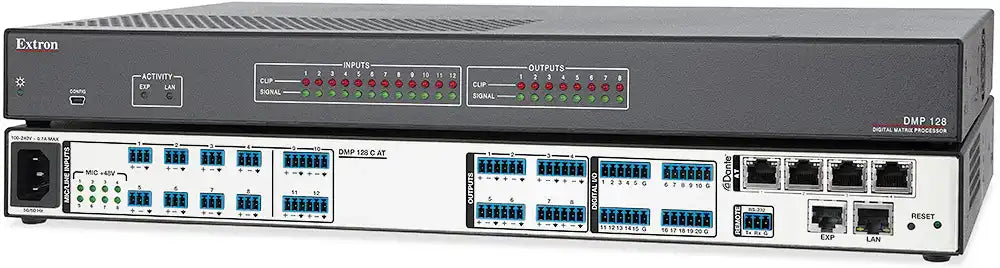

• Dante Audio Networking (AT Models) — 56 Rx / 24 Tx channels; AES67; 4-port Gigabit switch; deterministic latency 0.25–5.0 ms; FlexInputs on inputs 1–8.
• FlexInputs on AT Models — Route Dante channels in place of local mic/line inputs 1–8 for full DSP and AEC processing of remote sources.
• 48V Phantom Power — Selectable per input on inputs 1–8 for condenser microphone use.
• 20 Digital I/O Ports — Configurable for mic activation, muting, preset recall, and external triggering.

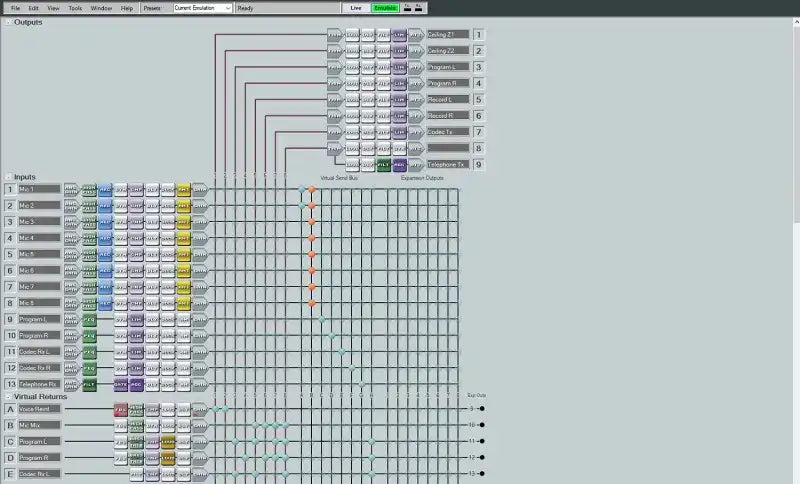

• DSP Configurator Software — Live and Emulate modes; real-time metering; Building Blocks; SpeedNav keyboard navigation; 32 presets; Device Manager for multi-unit management.
• 1U Full-Rack Enclosure — 1.7" H x 17.4" W x 9.5" D; internal Everlast power supply; 28 W.

Technical Specifications

Typical Application

The DMP 128 is deployed in boardrooms, conference centers, courtrooms, and training rooms requiring 12-input audio matrix processing with automixing, AEC conferencing, and optional POTS telephone or Dante audio networking in a single 1U full-rack processor.
