Extron DAC 102 Digital to Analog Audio Converter

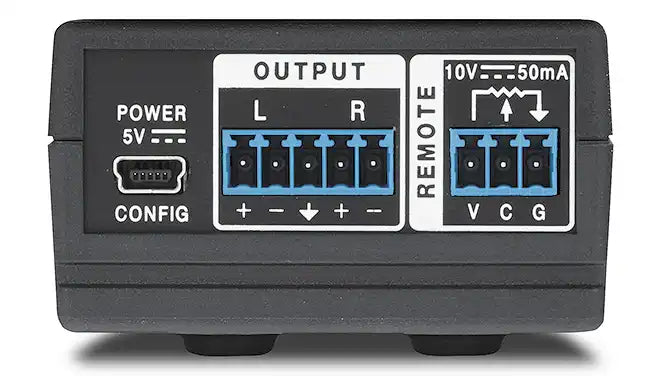

The Extron DAC 102 is a compact digital to analog audio converter that extracts embedded stereo audio from HDMI or DisplayPort sources and converts it to balanced/unbalanced analog stereo output. It accepts digital audio via HDMI or DisplayPort input (pass-through for video) and provides line-level analog stereo on captive screw terminals, with simultaneous 3.5 mm stereo mini output for convenience. This converter is ideal for integrating modern digital AV sources—such as laptops, media players, streaming devices, or switchers—into legacy analog audio systems, amplifiers, mixers, or DSPs in conference rooms, classrooms, boardrooms, training facilities, and control environments where analog audio distribution is required.
The DAC 102 supports HDMI 2.0 and DisplayPort 1.2 signals with resolutions up to 4K/60 Hz @ 4:4:4 (video pass-through only), embedded multi-channel audio extraction (downmixed to stereo), EDID management for reliable handshaking, and HDCP compliance for protected content. Its small form factor allows easy mounting behind displays or in racks, while captive screw terminals ensure secure, vibration-resistant connections in permanent installations.
Features Chart
| Feature | Benefit |
|---|---|
| HDMI/DisplayPort Input to Analog Stereo Output | Extracts and converts embedded digital audio to balanced/unbalanced analog |
| Video Pass-Through up to 4K/60 @ 4:4:4 | Maintains full digital video signal integrity to the display |
| Balanced/Unbalanced Analog Output | Flexible connection to professional or consumer audio equipment |
| EDID Management | Ensures proper source-display compatibility and resolution detection |
| HDCP Compliant | Supports protected digital content transmission |
| Captive Screw and 3.5 mm Outputs | Provides secure terminal block and convenient mini jack options |
| Compact, Low-Profile Design | Fits easily behind displays, in racks, or under tables |
| Plug-and-Play Operation | No external power or configuration required |
Specifications Table
| Specification | Details |
|---|---|
| Input Connectors | HDMI (Type A) or DisplayPort (via adapter) |
| Output Connectors | 3.5 mm captive screw (balanced stereo); 3.5 mm stereo mini (unbalanced) |
| Maximum Resolution (Pass-Through) | 4K/60 Hz @ 4:4:4 (video only) |
| Audio Formats | Embedded HDMI/DisplayPort audio (downmixed to stereo) |
| Audio Output Level | Line-level (+4 dBu balanced; -10 dBV unbalanced) |
| Frequency Response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.01% @ 1 kHz, nominal level |
| Power Requirement | None (passive) |
| Mounting | Compact enclosure with mounting options |
| Applications | Digital source to analog audio integration |
| Compatibility | HDMI/DisplayPort sources; analog audio destinations |
Compare Chart
| Aspect | Extron DAC 102 | Extron DAC 101 | Kramer 900xl Audio Extractor |
|---|---|---|---|
| Input | HDMI/DisplayPort | HDMI | HDMI |
| Audio Output | Balanced + unbalanced | Unbalanced only | Balanced/unbalanced variants |
| Video Pass-Through | Yes (4K/60 @ 4:4:4) | Yes (4K/30) | Yes (varies) |
| EDID Management | Yes | Yes | Yes |
| Power | Passive | Passive | Passive or active |
| Primary Use | Digital to analog audio bridge | Basic HDMI audio extraction | General audio extraction |
| Form Factor | Compact | Compact | Compact |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the main purpose of the DAC 102? It extracts embedded stereo audio from HDMI or DisplayPort sources and converts it to analog balanced/unbalanced output for legacy audio systems.
- Does it pass video through? Yes, it supports video pass-through up to 4K/60 Hz @ 4:4:4 to the connected display while extracting audio.
- What audio outputs are available? It provides both balanced stereo on captive screw terminals and unbalanced stereo on a 3.5 mm mini jack.
- Is external power required? No, the DAC 102 is fully passive and requires no power supply.
- Does it support HDCP? Yes, it is HDCP compliant for handling protected digital content.
- Can it be used in rack installations? Yes, its compact size and mounting options make it suitable for rack, under-table, or behind-display mounting in AV systems.
