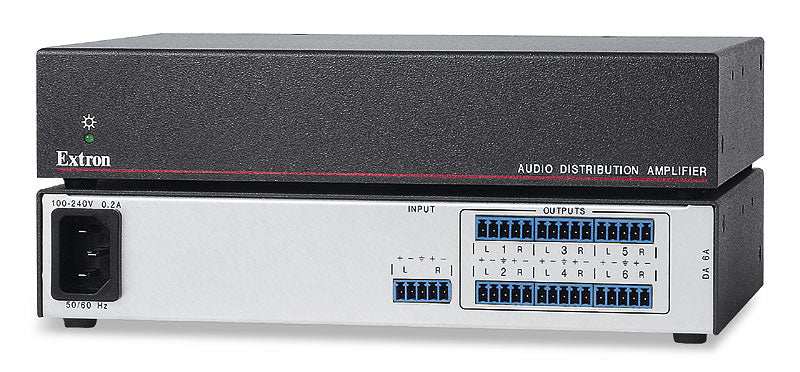

Extron DA 6A Six Output Stereo Audio
The Extron DA 6A is a high performance distribution amplifier for distributing stereo audio. It includes one input and six outputs on captive screw connectors for balanced/unbalanced stereo audio. Housed in a durable and compact half-rack metal enclosure, the DA 6A is designed for easy integration into both new and existing AV systems including boardrooms, training facilities, home theater, command and control center, and rental and staging environments.
Features
- Inputs: Captive screw connectors for balanced/unbalanced stereo audio
- Outputs: Captive screw connectors for balanced/unbalanced stereo audio
- Selectable 0 dB or +6 dB gain
- Rack-mountable 1U, half rack width metal enclosure
- Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
| DA 6A | |||
| Audio | |||
|---|---|---|---|
| |
Unity when internal jumpers are set to match output wiring. See the table below for other conditions. | ||
| |
 |
||
| |
20 Hz to 20 kHz, ±0.05 dB (with voltage reference @ 1 kHz) | ||
| |
0.03% @ 1 kHz at nominal level | ||
| |
>90 dB, unbalanced/balanced, at maximum output (unweighted) | ||
| |
>80 dB @ 1 kHz, >60 dB @ 20 kHz | ||
| |
>75 dB @ 20 Hz to 20 kHz | ||
| |
Up to 1000 feet with STP 22 cable | ||
| Audio input | |||
| |
1 stereo, balanced/unbalanced | ||
| |
(1) 3.5 mm captive screw connector, 5 pole | ||
| |
>18k ohms unbalanced, >24k ohms balanced, DC coupled | ||
| |
Compatible with +4 dBu (1.23 Vrms), 0 dBu (0.775 Vrms), -10 dBV (316 mVrms), -20 dBV (100 mVrms) | ||
| |
+24 dBu, (balanced) at 1%THD+N | ||
|
|||
| Audio output | |||
| |
6 stereo, balanced/unbalanced | ||
| |
(6) 3.5 mm captive screw connectors, 5 pole | ||
| |
50 ohms unbalanced, 100 ohms balanced | ||
| |
>+24 dBu, balanced at 1%THD+N | ||
| |
>+15 dBm, balanced at 1%THD+N | ||
| General | |||
| |
100 VAC to 240 VAC, 50-60 Hz, 8 watts, internal | ||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
|||
| |
Yes, with optional 1U deep rack shelf | ||
| |
Yes, with optional under-desk mounting kit or through-desk mounting kit | ||
| |
Metal | ||
| |
1.7" H x 8.7" W x 6.0" D (1U high, half rack wide) (4.3 cm H x 22.1 cm W x 15.2 cm D) (Depth excludes connectors.) |
||
| |
2 lbs (0.9 kg) | ||
| |
4 lbs (2 kg) | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
|||
| |
CE, c-UL, UL | ||
| |
CE, C-tick, FCC Class A, VCCI, ICES | ||
| |
30,000 hours | ||
| |
3 years parts and labor | ||
| |
7 years parts and labor | ||
|
|||
|
|||
| (5551-D8) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 60-692-20 | 3.63" (9.2 cm) | 13.0" (33.0 cm) | 17.19" (43.7 cm) | 2.6 lbs (1.18 kg) |
