Extron CTU RJ-45 Die

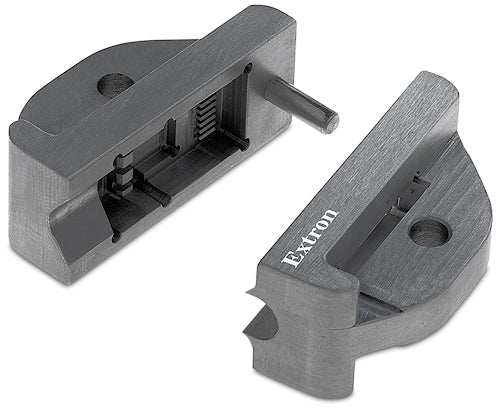

The Extron CTU RJ-45 Die is a precision-machined replacement crimp die set specifically for the Extron CTU 45 Universal RJ-45 Termination Tool. It enables accurate, consistent crimping of Extron XTP DTP 24 Plugs on XTP DTP 24 plenum and non-plenum shielded twisted pair cables, while also supporting other modular shielded or unshielded RJ-45 plug types. In a single cycle, the die simultaneously crimps the plug contact pins, metal strain relief, and grounding shield to create reliable, high-performance connections for digital twisted pair signals including video, audio, control, and power transmission in professional AV systems.
This user-replaceable die ensures long-term tool functionality for installers and technicians fabricating custom cables in classrooms, conference rooms, control rooms, and large-scale networked AV deployments. Its Extron-engineered design maintains signal integrity over extended distances when paired with compatible shielded cables and plugs.
Features Chart
| Feature | Benefit |
|---|---|
| Replacement die set for CTU 45 tool | Allows easy maintenance and continued use of the termination tool without replacement of the entire unit |
| Precision-machined Extron-engineered design | Delivers accurate, repeatable crimps for consistent high-quality terminations |
| One-step simultaneous crimping | Crimps contact pins, metal strain relief, and grounding shield in a single cycle for efficient, secure connections |
| Designed for XTP DTP 24 Plugs and cables | Optimizes performance with Extron shielded twisted pair systems for maximum distance and reliability |
| Compatible with shielded/unshielded RJ-45 plugs | Provides versatility for terminating various modular plugs in mixed AV and networking environments |
| Supports keyed and non-keyed plugs | Accommodates different plug configurations for broader application flexibility |
| User-replaceable component | Simplifies repairs and upgrades without needing a new tool frame |
| Enhances tool longevity | Extends the service life of the CTU 45 for ongoing professional use |
Specifications Table
| Specification | Details |
|---|---|
| Product Type | Universal RJ-45 replacement crimp die |
| Compatibility | Extron CTU 45 Universal RJ-45 Termination Tool; XTP DTP 24 plenum/non-plenum shielded twisted pair cables; XTP DTP 24 Plugs; other modular shielded/unshielded RJ-45 plugs (keyed/non-keyed) |
| Crimp Operation | Single-cycle simultaneous crimping of plug contacts, strain relief, and grounding shield |
| Die Construction | Precision-machined, Extron-engineered |
| Applications | Termination of digital twisted pair cables for AV signals (video, audio, control, power) |
| Mounting/Integration | Installs directly into CTU 45 tool frame (user-replaceable) |
| Warranty | Standard Extron warranty (typically 3 years parts and labor, as applicable to accessories) |
| Regulatory Compliance | RoHS compliant (typical for Extron connectivity products) |
Compare Chart
| Aspect | Extron CTU RJ-45 Die | Extron CTU RJ-45 II Die (Retired) | Generic RJ-45 Crimp Die (e.g., for Klein Tools) |
|---|---|---|---|
| Primary Compatibility | XTP DTP 24 shielded cables/plugs + other RJ-45 | XTP DTP 22 shielded cables/plugs | General CAT5e/CAT6 UTP/STP plugs |
| Crimp Action | Single-cycle pins/strain/shield | Single-cycle pins/strain/shield | Standard multi-position crimp |
| Tool Frame Required | CTU 45 | CTU 45 II | Varies by tool brand |
| Replaceable in Tool | Yes (user-replaceable) | Yes | Often fixed/non-replaceable |
| AV Optimization | High (Extron XTP/DTP systems) | High (Extron XTP/DTP systems) | General networking |
| Shielded Support | Full (optimized for shielded) | Full (for 22 AWG shielded) | Limited or none in basic dies |
| Keyed/Non-Keyed Support | Yes | Yes | Varies |
| Status | Active | Retired | Varies by manufacturer |
FAQ
- What tool does the CTU RJ-45 Die replace parts for? It is the replacement crimp die specifically for the Extron CTU 45 Universal RJ-45 Termination Tool.
- What plugs and cables is it designed to crimp? It is optimized for Extron XTP DTP 24 Plugs on XTP DTP 24 plenum and non-plenum shielded twisted pair cables, with compatibility for other shielded/unshielded RJ-45 plugs.
- How does the crimping work with this die? In one cycle, it simultaneously crimps the plug contact pins, metal strain relief, and grounding shield for a secure, integrated connection.
- Does it support keyed plugs? Yes, it is compatible with both keyed and non-keyed modular RJ-45 plugs for flexible use.
- Is the die user-replaceable? Yes, it installs directly into the CTU 45 tool frame for easy field replacement and tool maintenance.
- What makes this die suitable for professional AV work? Its precision-machined design ensures accurate, consistent crimps optimized for Extron digital twisted pair systems carrying high-bandwidth signals over distance.
