Extron CTU 45 Universal RJ-45 Termination Tool and Die

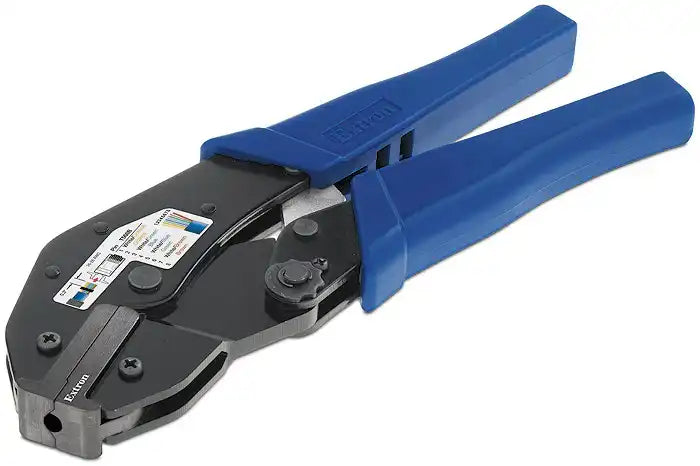

The Extron CTU 45 is a professional-grade crimp tool with an integrated precision-machined die for terminating Extron XTP DTP 24 plenum and non-plenum shielded twisted pair cables using XTP DTP 24 Plugs. It delivers accurate, consistent crimps by simultaneously securing the plug contact pins, metal strain relief, and grounding shield in a single cycle, ensuring reliable high-performance connections for digital twisted pair signals including video, audio, control, and power over distance. Ideal for AV integrators, installers, and technicians creating custom cables in classrooms, conference rooms, control rooms, and large-scale networked AV systems.
The rugged, lightweight ratchet-controlled frame requires minimal one-hand effort for complete crimps, while the user-replaceable die supports compatibility with other modular shielded or unshielded RJ-45 plugs, including keyed and non-keyed types. A color-coded wiring diagram label aids quick identification of correct pin assignments to reduce errors during termination.
Features Chart
| Feature | Benefit |
|---|---|
| Precision-machined Extron-engineered crimp die | Ensures accurate, consistent, and reliable terminations for optimal signal integrity |
| Single-cycle crimping of pins, strain relief, and shield | Simplifies process and creates secure, integrated connections in one operation |
| Designed specifically for XTP DTP 24 cables and plugs | Guarantees compatibility and maximum performance with Extron shielded twisted pair systems |
| Suitable for other shielded/unshielded RJ-45 plugs | Provides versatility for terminating various modular plugs in mixed environments |
| Compatible with keyed and non-keyed plugs | Accommodates different plug designs for broader application flexibility |
| Rugged, lightweight ratchet-controlled frame | Allows easy, one-hand operation with reduced fatigue during extended use |
| Color-coded wiring diagram label | Enables fast, error-free identification of TIA/EIA wiring schemes |
| User-replaceable die | Facilitates maintenance and adaptation to other RJ-45 termination needs |
Specifications Table
| Specification | Details |
|---|---|
| Tool Type | Universal RJ-45 crimp tool with integrated die |
| Primary Compatibility | Extron XTP DTP 24 plenum/non-plenum shielded twisted pair cables and XTP DTP 24 Plugs |
| Additional Compatibility | Other modular shielded/unshielded RJ-45 plugs (keyed/non-keyed) |
| Crimp Operation | Single-cycle simultaneous crimping of contacts, strain relief, and grounding shield |
| Frame Design | Ratchet-controlled, lightweight and rugged |
| Die Type | Precision-machined, user-replaceable |
| Wiring Aid | Color-coded wiring diagram label on tool |
| Applications | Termination of digital twisted pair and standard networking cables |
| Warranty | Standard Extron warranty (typically 3 years parts and labor) |
Compare Chart
| Aspect | Extron CTU 45 | Extron CTU 45 II | Klein Tools VDV226-110 RJ-45 Crimp Tool |
|---|---|---|---|
| Primary Cable Focus | XTP DTP 24 shielded | XTP DTP 22 shielded | General CAT5e/CAT6 UTP/STP |
| Crimp Action | Single-cycle pins/strain/shield | Single-cycle pins/strain/shield | Standard multi-position crimp |
| Die Replaceable | Yes | Yes | No (fixed positions) |
| Frame Type | Ratchet, lightweight | Ratchet, lightweight | Ratchet mechanism |
| One-Hand Operation | High (minimal effort) | High | Moderate |
| AV Optimization | High (Extron XTP/DTP systems) | High (Extron XTP/DTP systems) | General networking |
| Versatility | Shielded/unshielded RJ-45 | Shielded/unshielded RJ-45 | Primarily unshielded, some shielded |
| Wiring Guide | Color-coded label | Likely similar | Basic markings |
FAQ
- What cables and plugs is the CTU 45 designed for? It is optimized for Extron XTP DTP 24 plenum and non-plenum shielded twisted pair cables with matching XTP DTP 24 Plugs.
- Can it be used with non-Extron RJ-45 plugs? Yes, the replaceable die supports other modular shielded or unshielded RJ-45 plugs, including keyed and non-keyed types.
- How does the crimping process work? In one cycle, it simultaneously crimps the plug contacts, metal strain relief, and grounding shield for a secure connection.
- Is the tool easy to use for extended periods? The lightweight ratchet frame requires minimal one-hand effort, reducing fatigue during repeated terminations.
- What helps ensure correct wiring? A built-in color-coded wiring diagram label allows quick identification of the proper pin configuration.
- Is the die replaceable? Yes, the crimp die is user-replaceable for maintenance or switching to compatible dies for other plugs.
