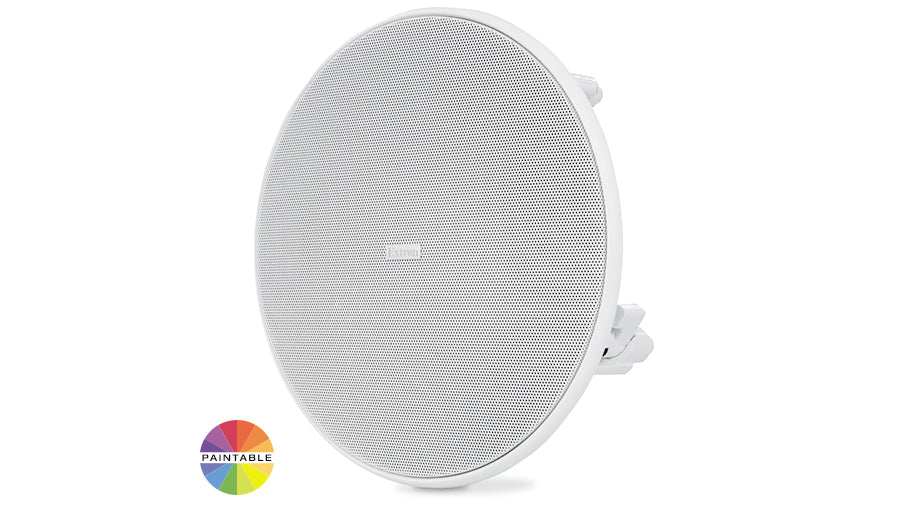

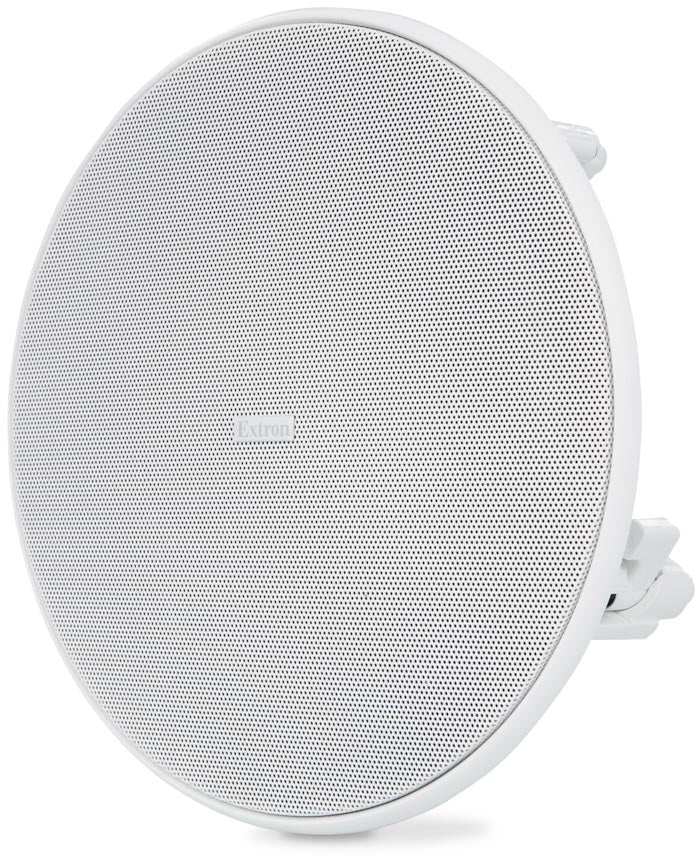

Extron CS 3T 3.5" Full-Range Ceiling Speaker with 70/100 V Transformer
Extron CS 3T 3.5" Full-Range Ceiling Speaker with 70/100 V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron CS 3T 3.5" Full-Range Ceiling Speaker with 70/100 V Tra...
The Extron CS 3T is a compact, plenum-rated ceiling speaker designed for clear speech reproduction and background music in low-volume distributed audio applications. Featuring a 3.5-inch (89 mm) full-range driver in a low-profile, metal back-can enclosure, it delivers intelligible audio with a frequency response of 120 Hz to 20 kHz and wide dispersion for consistent coverage. The integrated 70/100 V transformer provides multiple power taps up to 8 W, plus an 8-ohm bypass for low-impedance systems, making it compatible with Extron amplifiers or standard commercial audio setups.
The UL 2043 listed plenum-rated construction ensures compliance for air-handling spaces, while the magnetically attached paintable grille and included C-ring/tile support rails simplify secure installation in standard drop ceilings. Ideal for classrooms, conference rooms, hallways, open offices, retail spaces, and other environments requiring discreet, high-clarity paging or background audio with minimal visual impact.
Features Chart
| Feature | Benefit |
|---|---|
| 3.5" Full-Range Driver | Provides clear speech intelligibility and balanced background music |
| 70/100 V Transformer with 8-ohm Bypass | Flexible power distribution and direct low-impedance connection |
| Power Taps up to 8 W | Suitable for low- to medium-volume distributed audio applications |
| Plenum-Rated Metal Back Can | UL 2043 compliant for safe installation in air-handling spaces |
| Paintable Magnetic Grille | Allows color matching to ceiling and easy access for maintenance |
| C-Ring and Tile Support Rails | Simplifies secure mounting in standard drop ceilings |
| Wide Dispersion Pattern | Ensures even coverage with fewer speakers in open areas |
| Low-Profile Design | Minimal protrusion below ceiling for clean aesthetics |
Specifications Table
| Specification | Details |
|---|---|
| Driver Configuration | 3.5" (89 mm) full-range driver |
| Frequency Response | 120 Hz to 20 kHz, -10 dB |
| Power Handling | 8 W continuous pink noise (70/100 V taps); 8-ohm bypass |
| Transformer Taps | 70 V: 8, 4, 2, 1 W; 100 V: 8, 4, 2 W |
| Nominal Impedance | 8 ohms (bypass) |
| Sensitivity | 88 dB, 1 W/1 m |
| Enclosure Type | Plenum-rated metal back can, UL 2043 listed |
| Mounting | C-ring and tile support rails for drop ceilings |
| Grille | Paintable steel, magnetic attachment |
| Applications | Paging, background music in plenum ceiling spaces |
| Sold As | Single speaker (sold individually or in pairs) |
Compare Chart
| Aspect | Extron CS 3T | Extron CS 1226T Plus | JBL Control 12C/T |
|---|---|---|---|
| Driver Size | 3.5" full-range | 12" woofer + 1" tweeter | 3" full-range |
| Frequency Response | 120 Hz–20 kHz | 65 Hz–20 kHz | 95 Hz–18 kHz |
| Power Handling (70/100 V) | Up to 8 W | Up to 30 W | Up to 20 W |
| Plenum Rating | Yes (UL 2043) | Yes (UL 2043) | Yes |
| Mounting System | C-ring + tile rails | C-ring + tile rails | C-ring + tile rails |
| Primary Use | Paging/background music | Speech/music reproduction | Paging/background music |
| Grille | Paintable magnetic | Paintable magnetic | Paintable magnetic |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the CS 3T designed for? It provides clear paging and background music in low-volume distributed audio applications within plenum ceiling spaces.
- Is it plenum-rated? Yes, the metal back can is plenum-rated and UL 2043 listed for safe installation in air-handling spaces.
- What power options are available? It includes 70/100 V transformer taps up to 8 W and an 8-ohm bypass for direct low-impedance connection.
- How is it mounted? It uses a standard C-ring and tile support rails for secure installation in drop ceilings, with a magnetically attached paintable grille.
- Can it be used for music playback? Yes, while optimized for speech intelligibility, it supports background music with balanced frequency response.
- Can the grille be painted? Yes, the grille is paintable to match ceiling tiles for a seamless aesthetic integration.
