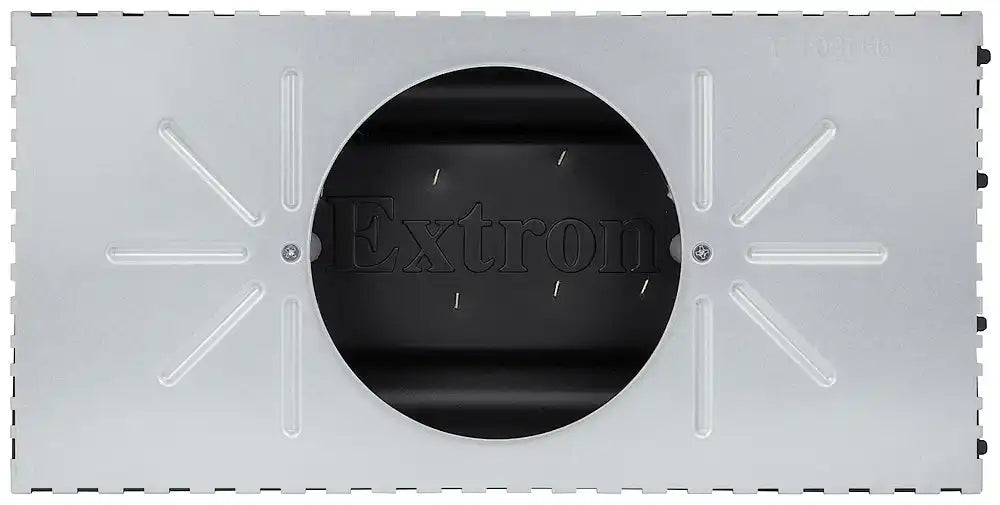

Extron CS 120P Plenum-Rated Ceiling Speaker Pair
The Extron CS 120P is a pair of plenum-rated ceiling speakers designed for high-quality distributed audio in professional AV installations. Each speaker features a 12-inch (305 mm) polypropylene cone woofer and a 1-inch (25 mm) dome tweeter in a low-profile, back-can enclosure, delivering clear speech intelligibility and balanced music reproduction with a frequency response of 65 Hz to 20 kHz. The plenum-rated metal back can and UL 2043 listed construction ensure compliance for use in air-handling spaces, making them suitable for classrooms, conference rooms, auditoriums, open offices, retail spaces, and other commercial environments requiring code-compliant ceiling audio.
With 70/100 V transformer taps (up to 30 W) and an 8-ohm bypass option, the speakers offer flexible power handling and impedance matching for integration with Extron amplifiers or standard commercial audio systems. The paintable, magnetically attached grille allows seamless aesthetic blending with ceilings, while the tile support rails and C-ring mounting system simplify secure installation in standard drop ceilings.
Features Chart
| Feature | Benefit |
|---|---|
| 12-inch Polypropylene Woofer + 1-inch Dome Tweeter | Provides clear speech and balanced music reproduction |
| Plenum-Rated Metal Back Can | UL 2043 compliant for safe installation in air-handling spaces |
| 70/100 V Transformer with 8-ohm Bypass | Flexible power distribution and direct low-impedance connection |
| Power Handling up to 30 W | Suitable for medium-volume distributed audio applications |
| Paintable, Magnetic Grille | Allows color matching to ceiling and easy access for maintenance |
| Tile Support Rails and C-Ring Mounting | Simplifies secure installation in standard drop ceilings |
| Low-Profile Design | Minimizes protrusion below ceiling for clean aesthetics |
| Sold as Pair | Consistent stereo or mono coverage in paired installations |
Specifications Table
| Specification | Details |
|---|---|
| Driver Configuration | 12" (305 mm) polypropylene cone woofer; 1" (25 mm) dome tweeter |
| Frequency Response | 65 Hz to 20 kHz, -10 dB |
| Power Handling | 30 W continuous pink noise (70/100 V taps); 8-ohm bypass |
| Transformer Taps | 70 V: 30, 15, 7.5, 3.7 W; 100 V: 30, 15, 7.5 W |
| Nominal Impedance | 8 ohms (bypass) |
| Sensitivity | 92 dB, 1 W/1 m |
| Enclosure Type | Plenum-rated metal back can, UL 2043 listed |
| Mounting | C-ring and tile support rails for drop ceilings |
| Grille | Paintable steel, magnetic attachment |
| Applications | Distributed audio in plenum ceiling spaces |
| Sold As | Pair (two speakers) |
Compare Chart
| Aspect | Extron CS 120P | Extron CS 3T | JBL Control 16C/T |
|---|---|---|---|
| Driver Size | 12" woofer + 1" tweeter | 3.5" full-range | 6.5" woofer + 0.75" tweeter |
| Frequency Response | 65 Hz–20 kHz | 120 Hz–20 kHz | 100 Hz–20 kHz |
| Power Handling (70/100 V) | Up to 30 W | Up to 8 W | Up to 30 W |
| Plenum Rating | Yes (UL 2043) | Yes | Yes |
| Mounting System | C-ring + tile rails | C-ring + tile rails | C-ring + tile rails |
| Primary Use | Medium-volume speech/music | Low-volume paging/background | General paging/background |
| Grille | Paintable magnetic | Paintable magnetic | Paintable magnetic |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the CS 120P designed for? It provides high-quality distributed audio in plenum ceiling spaces for speech intelligibility and music playback in commercial environments.
- Is it plenum-rated? Yes, the metal back can is plenum-rated and UL 2043 listed for safe installation in air-handling spaces.
- What power options are available? It includes 70/100 V transformer taps up to 30 W and an 8-ohm bypass for direct low-impedance connection.
- How is it mounted? It uses a standard C-ring and tile support rails for secure installation in drop ceilings, with a magnetically attached paintable grille.
- Does it support stereo applications? Sold as a pair, it is ideal for stereo or distributed mono coverage in classrooms, conference rooms, or open areas.
- Can the grille be painted? Yes, the grille is paintable to match ceiling tiles for a seamless aesthetic integration.
