Extron Zoom Room Training Room Bundle

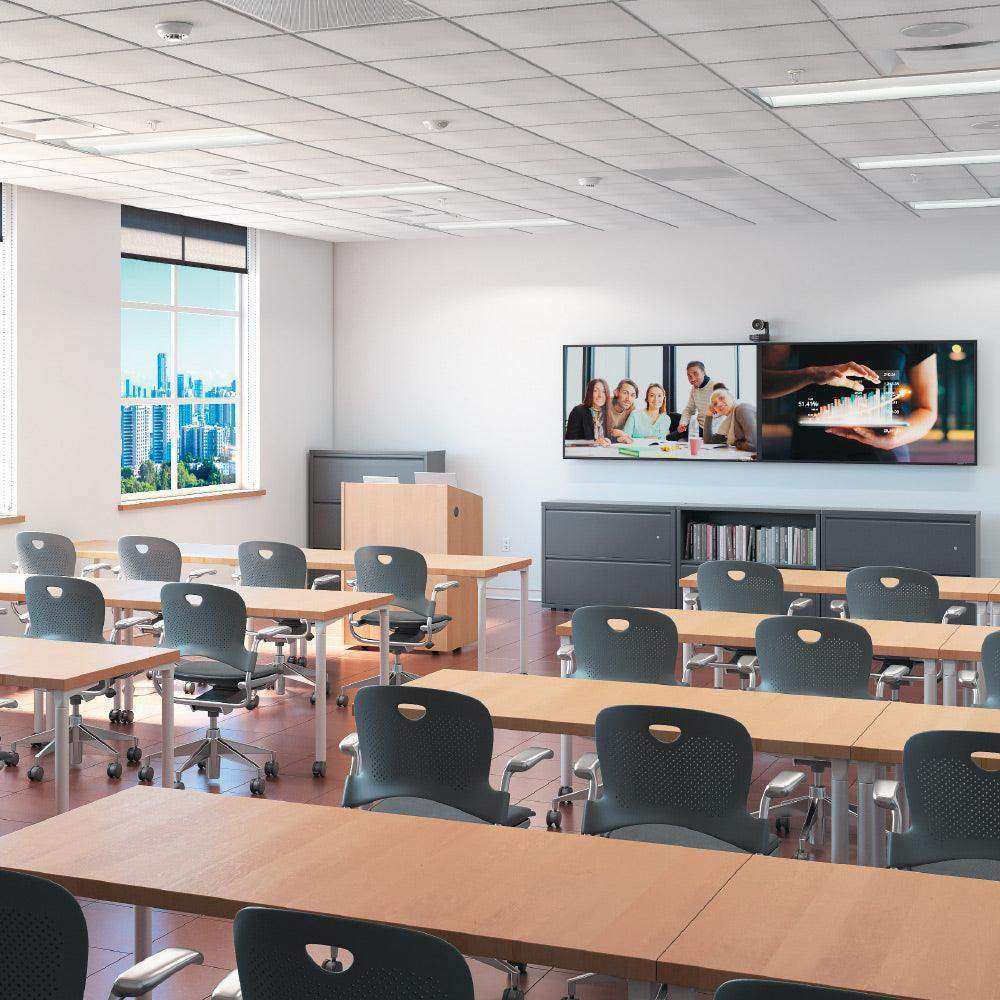

The Extron Zoom Rooms Training Room Bundle is a pre-engineered Zoom Rooms audio and video system for training rooms and corporate classrooms seating 18 or more participants. Built around the DMP 128 Plus C V AT 12x8 digital matrix processor with AEC, VoIP, and Dante AoIP, this bundle integrates four-channel amplification, three pairs of plenum-rated ceiling speakers, and dual Sennheiser TeamConnect Ceiling 2 beamforming microphone arrays to support hybrid learning and remote instruction in large-format training environments.

Product Overview

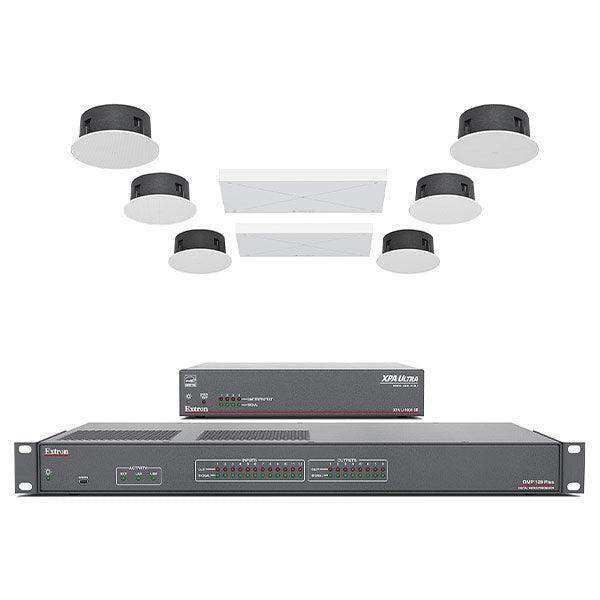

The Extron Zoom Rooms Training Room Bundle provides a verified Zoom Rooms audio system for training rooms accommodating 18 or more participants with dual-display configurations. The DMP 128 Plus C V AT — a 12x8 digital matrix processor with integrated acoustic echo cancellation, VoIP, and Dante Audio over IP — serves as the DSP core, supporting hybrid learning environments where in-room and remote participants require equal speech intelligibility. Three pairs of SF 3CT LP 3-inch plenum-rated ceiling speakers driven by the XPA U 1004 SB four-channel bridgeable amplifier deliver even audio coverage across a full training room footprint. Dual Sennheiser TeamConnect Ceiling 2 beamforming ceiling microphone arrays provide full-room voice pickup from any seat without floor or table-mounted microphones, making this system well-suited for active learning and interactive instructor-led training sessions.

Product Description

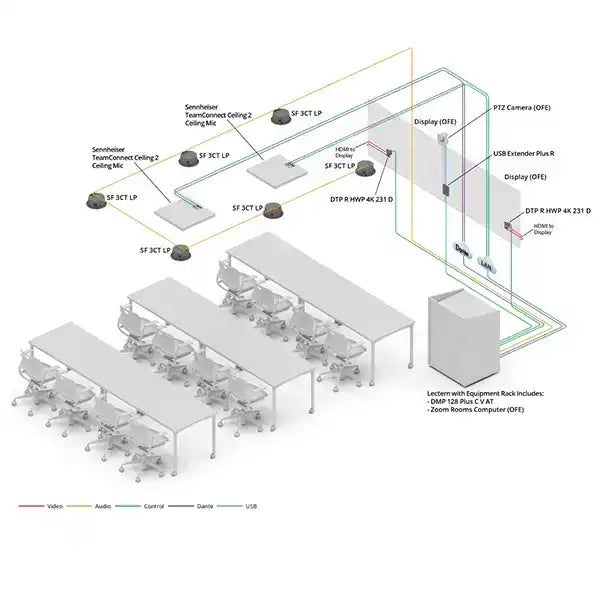

This training room AV system is configured for integrators deploying Zoom Rooms in corporate learning centers, higher education facilities, and government training rooms where participant count and room size exceed the range of standard conference room bundles. The DMP 128 Plus C V AT handles 12 inputs and 8 outputs with full DSP signal management, and its integrated AEC works in coordination with dual Sennheiser TeamConnect Ceiling 2 arrays to suppress echo across the extended room length for consistent two-way audio in hybrid Zoom Rooms sessions. Dante AoIP connectivity supports enterprise-level routing flexibility and compatibility with other networked AV devices throughout the facility. The XPA U 1004 SB four-channel bridgeable amplifier drives three ceiling speaker pairs in a flexible configuration to maintain even sound pressure levels across all seating positions. Each Sennheiser TeamConnect Ceiling 2 unit uses adaptive beamforming to independently track and isolate active speakers within its coverage zone, eliminating dead zones and removing the need for lavalier, boundary, or podium microphones in the training environment. Included 14 AWG plenum speaker cable and Cat-6 plenum network cabling support code-compliant installation in commercial air-handling spaces. A Zoom Rooms Computer with camera and control interface is required and sold separately; view the full bundle at Creation Networks.

Key Features

• DMP 128 Plus C V AT DSP — 12x8 digital matrix processor with integrated AEC, VoIP telephony, and Dante AoIP, providing comprehensive audio signal management for training room and large-format Zoom Rooms deployments.
• Dante Audio over IP — Enables facility-wide audio routing and multi-device compatibility across networked AV infrastructure without additional hardware.
• XPA U 1004 SB Four-Channel Bridgeable Amplifier — Drives three ceiling speaker pairs with flexible bridgeable output configuration for consistent audio coverage across a full training room seating area.
• Three Pairs of SF 3CT LP Plenum-Rated Ceiling Speakers — 3-inch full-range 70/100V ceiling speakers rated for plenum installation, providing even audio distribution across an extended seating footprint.
• Dual Sennheiser TeamConnect Ceiling 2 Beamforming Arrays — Two adaptive beamforming ceiling microphone arrays provide full-room voice pickup and ambient noise rejection without table or podium microphones.
• Acoustic Echo Cancellation (AEC) — Integrated in the DMP 128 Plus C V AT and coordinated with both microphone arrays to suppress echo across the full training room length for clean two-way audio.
• Dual-Display Zoom Rooms Configuration — Pre-engineered for dual-display Zoom Rooms setups appropriate for training rooms and hybrid learning environments with 18 or more participants.
• Plenum-Rated Cabling Included — 14 AWG plenum speaker cable and Cat-6 plenum network cable included for code-compliant commercial installation in plenum air spaces.
• 10-Port PoE Network Switch — Provides network connectivity and Power over Ethernet for Zoom Rooms and AV devices within the system.
• Extron-Certified Zoom Rooms Bundle — Pre-engineered and verified for Zoom Rooms deployment, reducing integration design time and commissioning risk for training room installations.
