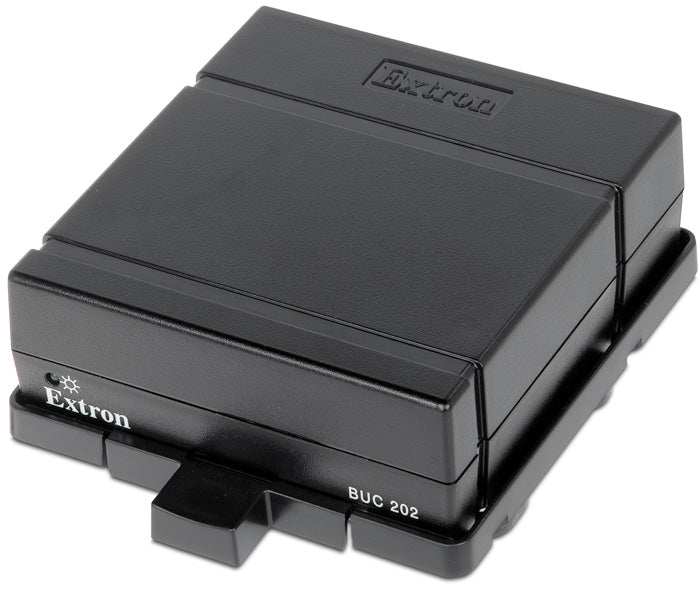

Extron BUC 202 Bidirectional RS-232 and IR Converter
The Extron BUC 202 is a compact bidirectional converter that translates RS-232 signals to IR control signals and vice versa, enabling seamless integration between RS-232 controlled devices and IR-controllable equipment in professional AV systems. It features a 3.5 mm captive screw connector for RS-232 (Tx/Rx/Gnd) on one side and a 3.5 mm stereo mini jack for IR output/input on the other, supporting bidirectional IR pass-through for two-way IR devices or unidirectional IR blasting. This makes it ideal for extending control in classrooms, conference rooms, boardrooms, auditoriums, and control centers where an RS-232 controller needs to command IR-based devices like projectors, displays, DVD players, or cameras, or where IR commands need to be converted to RS-232 for automation.
The converter operates passively with no external power required when used in typical unidirectional setups, though it draws minimal power from the RS-232 port when bidirectional IR is active. Its small form factor allows easy mounting behind equipment or in tight spaces, while the captive screw connector ensures secure, vibration-resistant RS-232 termination in permanent installations.
Features Chart
| Feature | Benefit |
|---|---|
| Bidirectional RS-232 to IR Conversion | Translates RS-232 commands to IR and IR feedback to RS-232 when supported |
| 3.5 mm Captive Screw RS-232 Connector | Secure, tool-free termination for reliable serial connections |
| 3.5 mm Stereo Mini IR Jack | Standard connection for IR emitters, blasters, or receivers |
| Passive Operation (Unidirectional) | No external power needed for basic RS-232 to IR conversion |
| Compact Design | Fits easily behind displays, in racks, or under tables |
| Plug-and-Play Simplicity | No configuration required for straightforward control bridging |
| Supports Bidirectional IR Devices | Enables two-way IR communication when used with compatible equipment |
| Professional AV Compatibility | Bridges RS-232 controllers to IR-based AV devices reliably |
Specifications Table
| Specification | Details |
|---|---|
| RS-232 Connector | 3.5 mm captive screw (Tx, Rx, Gnd) |
| IR Connector | 3.5 mm stereo mini jack |
| Signal Direction | Bidirectional (RS-232 ↔ IR) |
| Power Requirement | Passive (unidirectional); minimal draw from RS-232 (bidirectional) |
| Baud Rate Support | Up to 115.2 kbps (RS-232) |
| IR Carrier Frequency | 30 kHz to 60 kHz typical |
| Mounting | Compact enclosure with mounting options |
| Applications | RS-232 to IR control conversion in AV systems |
| Compatibility | RS-232 controllers; IR emitters/receivers and bidirectional IR devices |
Compare Chart
| Aspect | Extron BUC 202 | Extron MLC IR RS-232 Cable | Kramer IR/RS-232 Converter |
|---|---|---|---|
| Conversion Type | Bidirectional RS-232 ↔ IR | One-way RS-232 to IR extension | RS-232 to IR (unidirectional) |
| RS-232 Connector | 3.5 mm captive screw | Captive screw | DB-9 or captive screw |
| IR Connector | 3.5 mm stereo mini | 3.5 mm stereo mini | 3.5 mm mini |
| Power Requirement | Passive/minimal draw | Passive | Passive or powered |
| Bidirectional IR Support | Yes | Limited | Typically no |
| Primary Use | RS-232/IR bridging | Short MLC extension | General RS-232 to IR |
| Form Factor | Compact standalone | Cable assembly | Compact standalone |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the main purpose of the BUC 202? It converts RS-232 control signals to IR commands and vice versa, allowing RS-232 controllers to operate IR devices or IR feedback to reach RS-232 systems.
- Does it support bidirectional IR? Yes, it supports bidirectional IR pass-through for devices that provide IR feedback, in addition to standard unidirectional IR blasting.
- Is external power required? No, it operates passively for unidirectional RS-232 to IR conversion; minimal power may be drawn from the RS-232 port in bidirectional setups.
- What connectors are used? RS-232 uses a 3.5 mm captive screw connector (Tx, Rx, Gnd), and IR uses a standard 3.5 mm stereo mini jack for emitters or receivers.
- Can it be used with Extron controllers? Yes, it is optimized for use with Extron control systems that output RS-232 or require IR control bridging.
- What IR frequencies are supported? It handles common IR carrier frequencies from 30 kHz to 60 kHz for compatibility with most AV devices.
