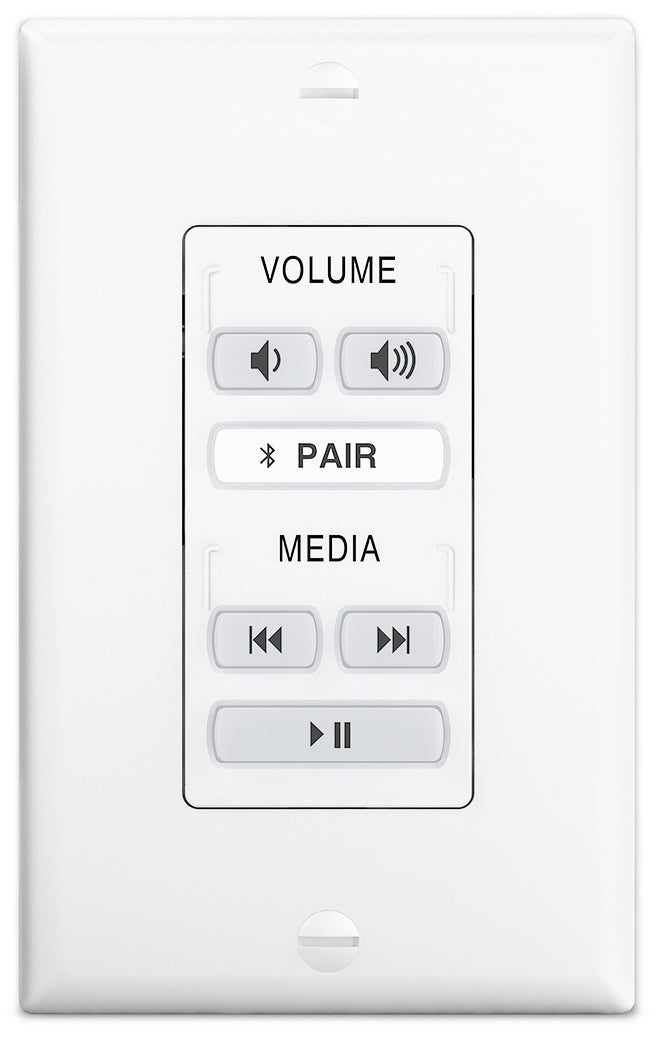

Extron BT 100 AT D – Bluetooth Dante Audio Interface Decorator Wallplate

Product Overview

BT 100 AT D, part number 60-1691-01. The Extron BT 100 AT D is a single-gang decorator-style Bluetooth Dante audio interface that brings a Bluetooth device onto a Dante audio system. It supports full duplex operation for call bridging, so a mobile phone can serve as the far-end connection in a conferencing system, and it also handles stereo program audio playback from any paired Bluetooth source. The interface is PoE powered and connects to any Dante-enabled processor over a standard local area network. Pairing, volume, and playback are controllable from the front panel, RS-232, or across the Dante network.

Product Description

Bringing a mobile phone into a room's audio system is a recurring requirement that rarely has a clean answer. Consumer Bluetooth receivers introduce an analog hop, a wall wart, and no control surface. The BT 100 AT D handles it as a network audio device: Bluetooth in, Dante out, with no analog stage between the phone and the DSP.

Full duplex operation is the important distinction. Program audio playback from a phone is straightforward, but call bridging requires audio to travel both directions with acceptable latency and echo behavior. The BT 100 AT D supports full duplex Bluetooth to Dante connectivity so a cell phone can act as the communication device in a conferencing system, with the room's microphones and loudspeakers on the other side of the DSP.

Installation is a single-gang decorator-style wallplate on PoE, so one Ethernet run supplies both power and audio transport. That removes the local power supply and the analog cable pair from the design entirely. The interface works with any Dante-enabled audio processor on a standard LAN, including the Extron DMP Plus Series AT models.

Control and monitoring are available three ways: from the front panel for the user, over RS-232 for a local control processor, and across the Dante network for remote configuration and monitoring. Configuration is also possible over USB-C at the panel. For AV teams managing a portfolio of rooms, that means pairing state and volume are visible and correctable without a truck roll.

Key Features

• Full duplex call bridging — Supports two-way Bluetooth to Dante audio so a mobile phone can act as the far-end device in a conferencing system.
• Stereo program playback — Plays stereo program audio from any paired Bluetooth device into the Dante system.
• PoE powered — One Ethernet run supplies power and audio transport, removing the local power supply from the design.
• Native Dante output — Connects to any Dante-enabled audio processor over a standard local area network with no analog stage.
• Front panel control — Pairing, volume, and playback media are controllable at the panel by the room user.
• RS-232 control — Integrates with a local control processor for room automation and preset recall.
• Dante network control — Remote configuration, control, and monitoring across the network for multi-room management.
• USB-C configuration — Configurable over USB-C at the panel for commissioning without network access.
• Single-gang decorator style — Fits standard decorator-style openings for a clean finish in furniture, lecterns, and walls.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• House of worship

Technical Specifications

Extron has not yet published a full specification table for this model. Contact Creation Networks for the current specification sheet before finalizing a design.

Specifications sourced from Extron product documentation.

Frequently Asked Questions

Does the BT 100 AT D support two-way conferencing audio, or only playback?

Both. It supports full duplex Bluetooth to Dante connectivity for call bridging, so a paired phone can serve as the communication device in a conferencing system, as well as one-way stereo program audio playback.

What DSP does it require?

Any Dante-enabled audio processor on a standard local area network, including Extron DMP Plus Series AT models. The interface does not include its own mixing or echo cancellation, so those functions live in the DSP.

How is it powered?

Through Power over Ethernet on the same cable that carries Dante audio. No separate power supply or local outlet is needed at the wallplate.

Can pairing be managed remotely?

Yes. Pairing, volume, and playback control are available at the front panel, over RS-232, and across the Dante network, so an AV team can manage state without visiting the room.

Does it support AES67?

It is a Dante device and connects to Dante-enabled processors. Confirm AES67 interoperability requirements against the specific DSP and network configuration for your deployment.

What is the availability?

Extron lists this model as shipping in October 2026. Contact us for current lead time and to reserve project quantities.

What warranty and support are included?

Extron provides a manufacturer warranty. Creation Networks coordinates warranty and RMA handling, and can support Dante network design questions for the deployment.
