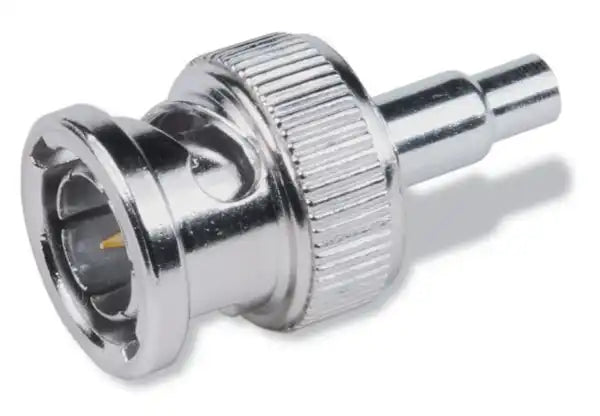

Extron BNC Male MHR Crimp Connectors Qty. 100
The Extron MHR Male Crimp Connectors are high-performance BNC crimp-style connectors designed for use with Extron MHR Mini High Resolution coaxial cable. They provide reliable, low-loss terminations for analog RGBHV, component video, S-video, and composite video signals in professional AV installations. The connectors feature a gold-plated center pin and crimp attachment for the shield, ensuring excellent signal integrity, minimal return loss, and durability in high-frequency applications up to 3 GHz.
Available in packages of 10 or bulk quantities, these male connectors are compatible with standard crimp tools and support cable diameters of approximately 0.240" to 0.265" OD. They are ideal for custom cable assemblies in classrooms, conference rooms, control rooms, and broadcast environments where precise video transmission over coaxial cable is required.
Features Chart
| Feature | Benefit |
|---|---|
| Gold-plated center pin | Ensures low contact resistance and superior signal conductivity for high-resolution video |
| Crimp-style shield attachment | Provides secure, gas-tight connection to cable shield for reduced interference |
| Designed for Extron MHR Mini High Resolution cable | Optimizes performance with matched cable impedance and minimal signal degradation |
| Supports frequencies up to 3 GHz | Handles high-bandwidth analog video signals including RGBHV and component |
| BNC male interface | Offers standard, reliable interconnection with professional AV equipment |
| Packaged in sets of 10 | Facilitates convenient stocking for installations, repairs, or cable fabrication |
| Compatible with standard crimp tools | Allows quick, field-terminable assembly without soldering |
| Durable construction | Withstands repeated connections in demanding AV environments |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | BNC male, crimp style |
| Center Pin | Gold-plated |
| Impedance | 75 ohms |
| Frequency Range | DC to 3 GHz |
| Cable Compatibility | Extron MHR Mini High Resolution coaxial cable (RG-59 style, ~0.240"-0.265" OD) |
| Termination Method | Crimp (center pin and shield) |
| Packaging | Packages of 10 connectors |
| Return Loss | Better than -20 dB typical (up to 3 GHz with MHR cable) |
| Insertion Loss | Low (matched to cable performance) |
| Regulatory Compliance | RoHS compliant |
Compare Chart
| Aspect | Extron MHR Male Crimp Connectors | Canare BNC Crimp Connectors | Belden BNC Crimp Connectors |
|---|---|---|---|
| Cable Optimized For | Extron MHR Mini HR cable | General RG-59/RG-6 | General RG-59/RG-6 |
| Impedance | 75 ohms | 75 ohms | 75 ohms |
| Frequency Range | Up to 3 GHz | Up to 3 GHz+ | Up to 3 GHz |
| Center Pin Plating | Gold | Gold | Gold or nickel variants |
| Crimp Style | Two-crimp (pin + shield) | Two-crimp | Two-crimp |
| Packaging | 10 per pack | Bulk or small packs | Bulk or kits |
| AV System Focus | High-resolution analog video | General broadcast/AV | General broadcast/AV |
| Return Loss Performance | Excellent with MHR cable | High | High |
FAQ
- What type of cable are these connectors designed for? They are specifically optimized for Extron MHR Mini High Resolution coaxial cable used in analog high-resolution video applications.
- What termination method do they use? They employ a crimp-style attachment for both the center pin and shield, requiring standard BNC crimp tools.
- What frequency range do they support? The connectors handle signals from DC up to 3 GHz, suitable for RGBHV, component, and other high-bandwidth analog video.
- How are they packaged? Connectors are sold in convenient packages of 10 for easy use in custom cable fabrication or field repairs.
- Do they require soldering? No, they are crimp-only connectors, eliminating the need for soldering and enabling faster, cleaner terminations.
- Are they compatible with other coaxial cables? While optimized for Extron MHR cable, they can be used with similar 75-ohm RG-59 style cables of appropriate diameter, though performance is best with matched MHR cable.
