Extron BB 1 Back Box for TLP Pro 320M, TLP Pro 520M, and TLC Pro 521M

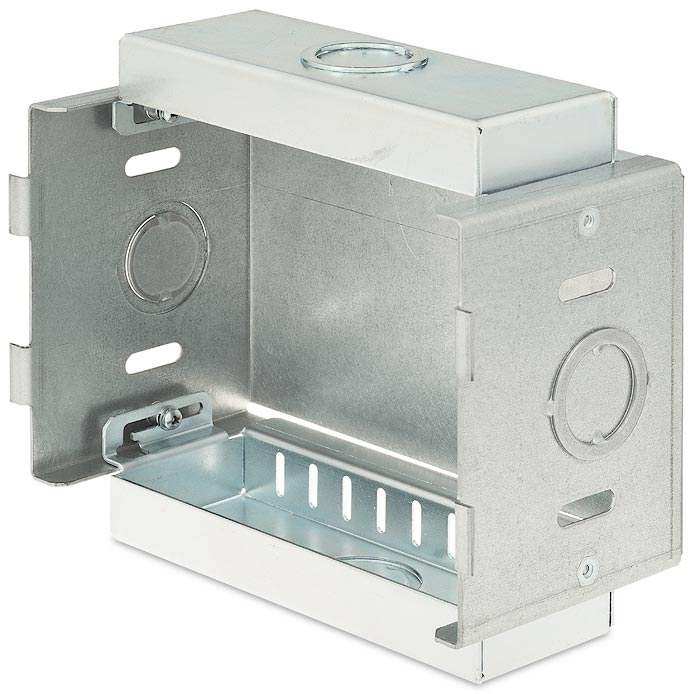

The BB 1 Back Box is designed to provide a recess-mounted steel enclosure for the Extron TLP Pro 320M, TLP Pro 520M, and TLC Pro 521M. It allows TouchLink Pro touchpanels and the TouchLink Pro controller to be mounted in retrofit or pre-construction applications where an in-wall installation is required. The BB 1 provides standard knockouts for fixed or flexible conduit.
Features
- For use with TLP Pro 320M, TLP Pro 520M, and TLC Pro 521M
- Recess-mounted steel enclosure for retrofit and pre-construction applications
- Standard knockouts provided for fixed or flexible conduit — Accommodates the necessary electrical wiring for an installed TouchLink touchpanel.
Specs
Also see our Specs in PDF format
| BB 1 | |||
| General | |||
|---|---|---|---|
| |
In-wall mounting | ||
| |
Steel | ||
| |
Unpainted, clear zinc coated for corrosion prevention | ||
| |
5.02" H x 5.98" W x 2.80" D 12.75 cm H x 15.18 cm W x 7.11 cm D |
||
| |
 |
||
| |
3.74" H x 5.60" W (9.49 cm H x 14.21 cm W) |
||
| |
4 per unit, 1/2" and 3/4" diameter | ||
| |
1 lb (0.45 kg) | ||
| |
2 lbs (1 kg) | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
|||
| |
CE, c-UL, UL | ||
| |
Complies with the appropriate requirements of RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (8.0-021814-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1007-01 | 3.5" (8.9 cm) | 5.25" (13.3 cm) | 7.25" (18.4 cm) | 1.3 lbs (0.59 kg) |
