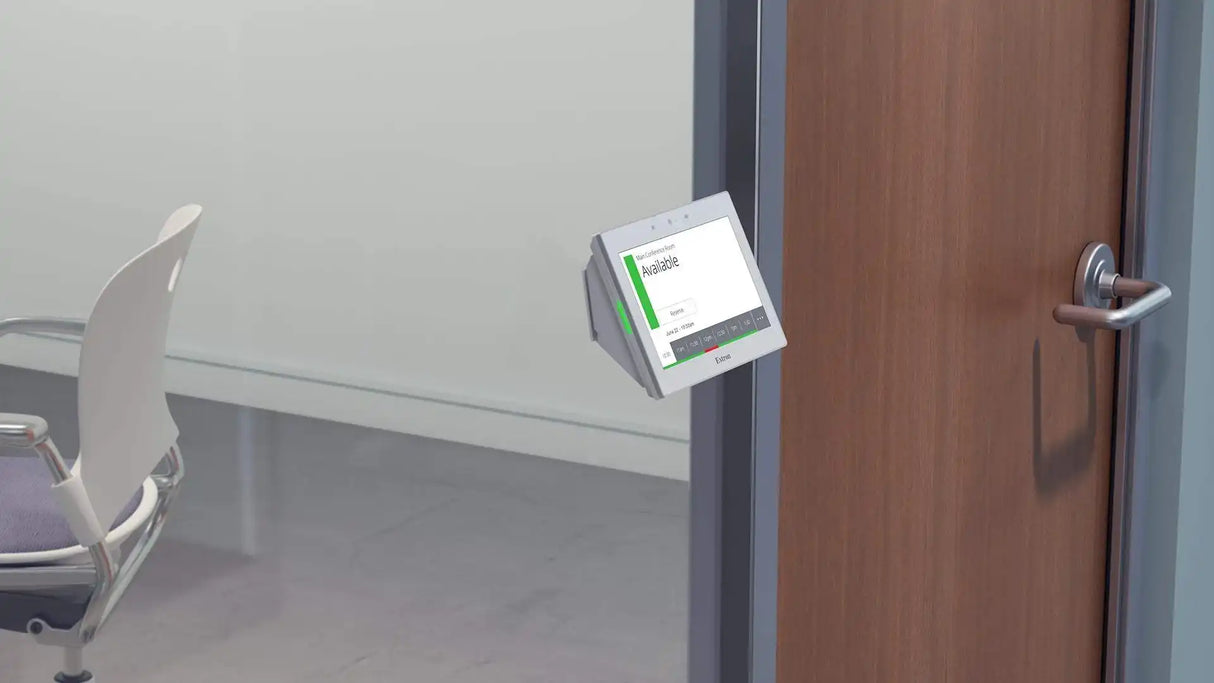

Extron Angle Mount Kits are specifically designed for our latest wall mount TouchLink Pro touchpanels, TLC Pro control systems, and TouchLink Scheduling panels. They make it easy to mount a touchpanel at the perfect viewing angle while also securing it on a wall or other flat surface, even glass. The low-profile design maintains the sleek, stylish appearance of the touchpanel. When using an Angle Mount Kit on glass, the included glass overlay provides a clean, discreet look when viewed from the back of the installation. These kits are available in black and white and include a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TouchLink Pro touchpanel, TLC Pro control system, and TouchLink Scheduling panel at a 25 degree angle on a wall or other flat surface, including glass
- Kit includes pre-adhered adhesive and paper template can be downloaded to simplify alignment and installation
- Angled to provide optimum viewing when mounted at ADA height
- Design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included
- Available in black and white
Specs
Also see our Specs in PDF format
| AMK Series | |||
| General | |||
|---|---|---|---|
| |
Mounts to glass, masonry, and other flat surfaces | ||
| |
 |
||
| |
|||
| |
3.42" H x 5.69" W x 1.67" D (87 mm H x 145 mm W x 42 mm D) |
||
| |
3.70" H x 5.93" W x 1.97" D (94 mm H x 151 mm W x 50 mm D) |
||
| |
3.70" H x 5.93" W x 1.97" D (94 mm H x 151 mm W x 50 mm D) |
||
| |
|||
| |
0.21 lbs (0.1 kg) | ||
| |
0.26 lbs (0.12 kg) | ||
| |
0.26 lbs (0.12 kg) | ||
| |
High impact thermoplastic | ||
| |
CE, RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (4545-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1244-12 | 2.63" (6.7 cm) | 6.75" (17.1 cm) | 5.75" (14.6 cm) | 0.65 lbs (0.29 kg) |
| 70-1244-13 | 2.63" (6.7 cm) | 6.75" (17.1 cm) | 5.75" (14.6 cm) | 0.65 lbs (0.29 kg) |
| 70-1244-22 | 3.75" (9.5 cm) | 5.5" (14.0 cm) | 7.5" (19.1 cm) | 0.75 lbs (0.34 kg) |
| 70-1244-23 | 3.75" (9.5 cm) | 5.5" (14.0 cm) | 7.5" (19.1 cm) | 0.75 lbs (0.34 kg) |
| 70-1244-32 | 3.0" (7.6 cm) | 8.0" (20.3 cm) | 11.0" (27.9 cm) | 0.9 lbs (0.41 kg) |
| 70-1244-33 | 3.0" (7.6 cm) | 8.0" (20.3 cm) | 11.0" (27.9 cm) | 0.9 lbs (0.41 kg) |
