Extron AMK 6 – Angle Mount Kit for TLP Pro 35 Touchpanels, For TLP Pro 1035M, White
Extron AMK 6 – Angle Mount Kit for TLP Pro 35 Touchpanels, For TLP Pro 1035M, White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AMK 6 – Angle Mount Kit for TLP Pro 35 Touchpanels, For TLP ...
Product Overview

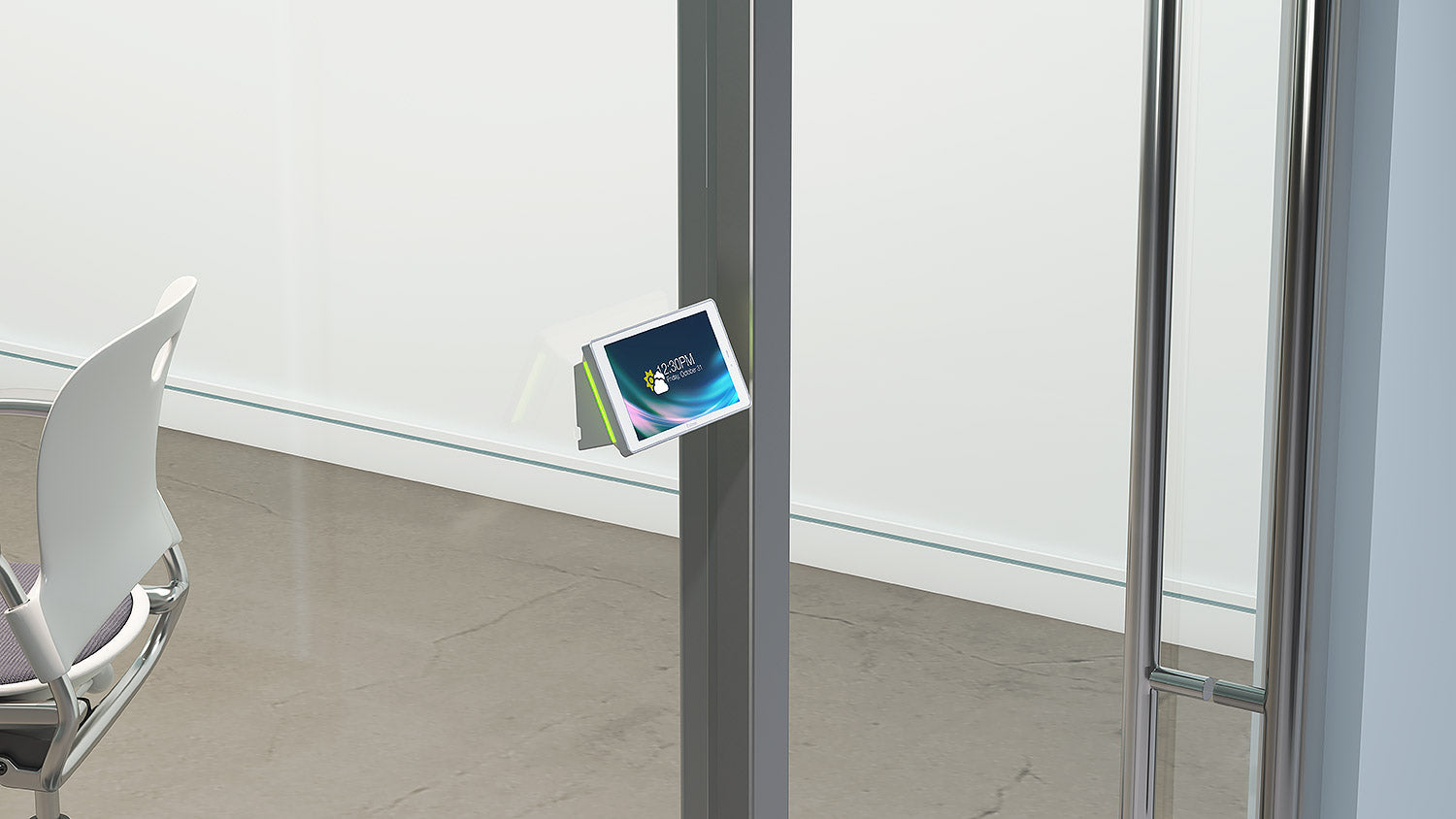

AMK 6 (For TLP Pro 1035M, White), part number 70-1332-33. The Extron AMK 35 Series angle mount kits hold a TLP Pro 535M, 835M, or 1035M touchpanel at a 25 degree angle on a wall, tabletop, or other flat surface, including glass. The angle is chosen to give optimum viewing when the panel is mounted at ADA height, where a flush vertical panel sits below comfortable eye line. Pre-adhered adhesive and a downloadable paper template simplify alignment and installation. A glass-adhered overlay keeps the inside face clean, and the panel's side LED indication remains visible.
Product Description
ADA mounting heights put a control panel lower than most standing users would choose. Flush against the wall at that height, the screen is legible but the viewing angle is poor and overhead lighting tends to reflect straight back at the user.
The AMK 35 Series fixes that with a 25 degree upward tilt. It is a small geometric change with a clear result: the panel faces the user rather than the floor, glare moves out of the sight line, and touch targets are easier to hit accurately.
The same kit works on a tabletop, which makes it useful beyond wall installations. In a boardroom or training room where a control panel sits on the table rather than the wall, the angle mount presents it correctly without custom millwork. Glass mounting is supported as well, with an included glass-adhered overlay that keeps the room-side face clean.
Installation uses pre-adhered adhesive with a downloadable paper template for alignment, which matters when a rollout covers dozens of rooms and every panel needs to land in the same place relative to the door. Knockouts handle discreet Ethernet pass-through. Six part numbers cover three panel sizes in black and white: AMK 4 for the TLP Pro 535M, AMK 5 for the 835M, and AMK 6 for the 1035M. For flush surface mounting without tilt, use the Extron SMK 35 Series.
Related products at Creation Networks: Extron TLP Pro 1035M touchpanel.
Key Features
- 25 degree viewing angle — Tilts the panel upward for optimum viewing when mounted at ADA-compliant height.
- Wall, tabletop, or glass — Mounts on a wall, tabletop, or other flat surface including glass, without cutting a back box.
- Pre-adhered adhesive — Factory-applied adhesive removes a field step and improves consistency across large rollouts.
- Alignment template — A downloadable paper template makes panel placement repeatable across many rooms.
- Glass-adhered overlay — Included overlay keeps the room-side face clean in glass-walled spaces.
- LED status remains visible — Panel side LED indication stays visible after mounting.
- Discreet cable pass-through — Knockouts route the Ethernet connection out of sight.
- Three sizes, two finishes — AMK 4 for the TLP Pro 535M, AMK 5 for the 835M, and AMK 6 for the 1035M, each in black or white.
Technical Specifications
| Specification | Detail |
|---|---|
| Extron part number | 70-1332-33 |
| Model | AMK 6 |
| Version | For TLP Pro 1035M, White |
| Availability | Shipping |
| Mount angle | 25 degrees |
| Mounting surfaces | Wall, tabletop, flat surface, or glass |
| Adhesive | Pre-adhered adhesive included |
| Cable pass-through | Knockouts included |
Specifications sourced from Extron product documentation.
