Extron AC+USB 314 US, Cord 2US AC, 1USBC, 1 USBA, 12A Brker, Integ PS, 2 Outl

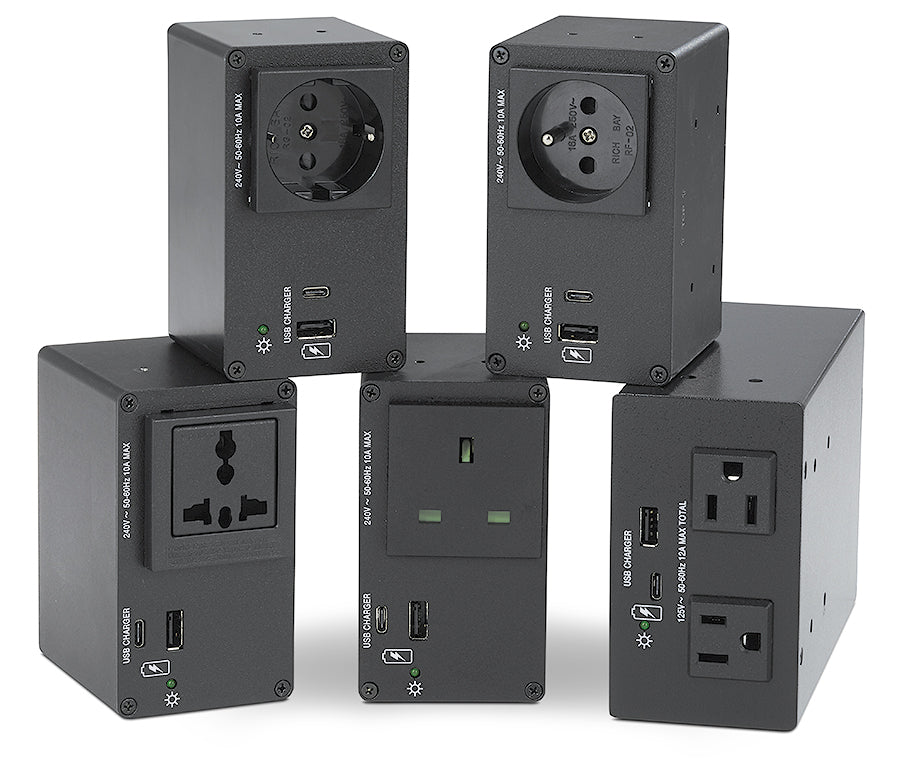

Extron AC+USB 300 Series Power Modules for Cable Cubby^® Series and select TouchLink^® enclosures are available with up to two unswitched AC power outlets plus USB‑C^® and USB Type‑A power outlets. They provide up to 55 watts of USB power for charging mobile devices, such as laptops, smartphones, and tablets. For convenient installation, AC+USB 314 US power modules feature an integrated Extron power supply. AC+USB 311 US power modules are UL/c-UL listed. Extron AC 100 Series Power Modules and AC+USB 200 Series Power Modules are also available for applications where USB‑C power outlets are not needed.

The AC+USB 314 US models feature a 12 A circuit breaker for current overload protection and are UL/c-ul listed and meet applicable safety standard when installed properly. Both US models two unswitched AC outlets, along with one USB-C power outlet and one USB Type-A power outlet. The cord model also features two 2’ US AC outlet cables underneath the module to power optional AV equipment and other devices. The USB-C outlet delivers up to 45 W and the USB Type-A outlet delivers up to 10 W, with a total power of 55 W. For convenient installation, AC+USB 314 US power modules feature an integrated Extron power supply. The AC+USB 314 US, Cord module is equipped with a 9.5' (2.90-meter) power cord and two 2’ US AC outlet cables on the bottom of the module to power optional devices. The AC+USB 314 US, Conduit module features a 6' (1.83-meter) length of 3/8" flexible conduit with a 6" (15-cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power.

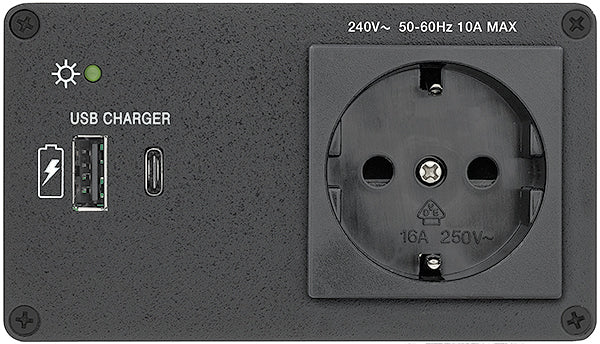

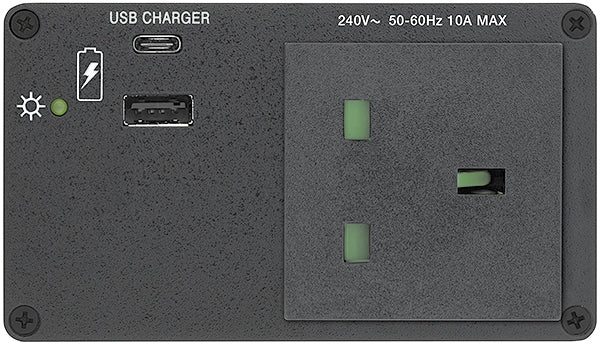

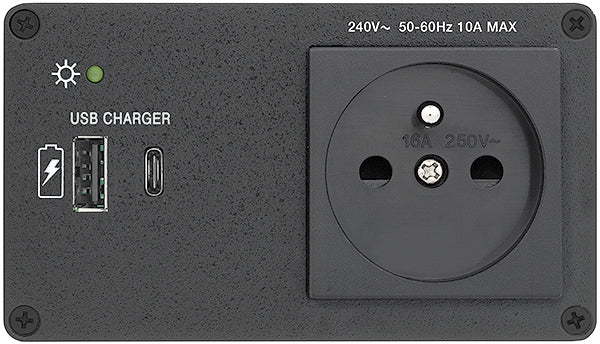

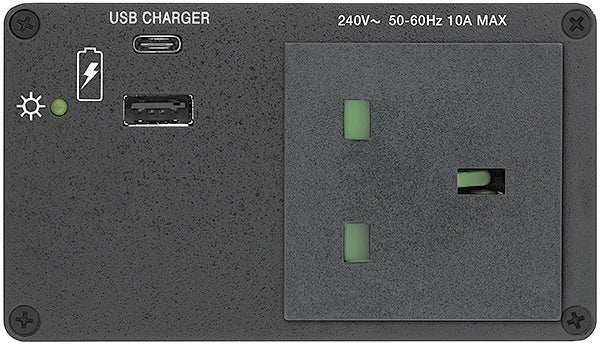

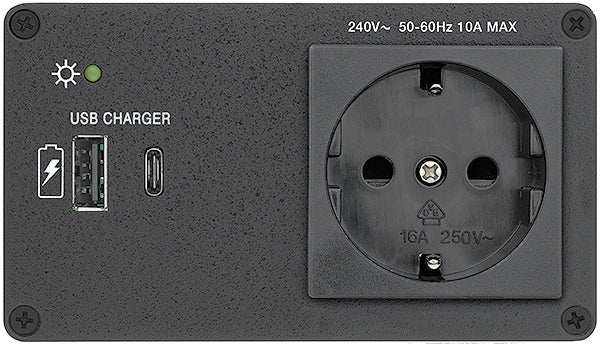

The AC+USB 311 non-US power modules feature one unswitched AC outlet and are equipped with an IEC power connector. The USB-C outlet delivers up to 45 W and the USB Type-A outlet delivers up to 10 W; with a combined shared power of 47.5 watts. The Multi-Region model accepts a variety of AC plug types. All AC+USB 311 non-US modules include an Extron external stand-alone power supply that meets the Level VI standard for energy efficiency and a ZipClip 200 Mounting Kit. ZipClip kits securely mount Extron power supplies onto most surfaces, including under tables and inside lecterns.

Features

• For use with Cable Cubby^® Series and select TouchLink^® enclosures
• AC power outlets available for US, Europe, and other major world markets
• Features USB‑C^® and USB Type‑A power outlets, as well as AC outlets
• US models provide a total of up to 55 watts of USB power — USB Type‑A outlet delivers up to 10 watts of power; USB‑C outlet delivers up to 45 watts of power.

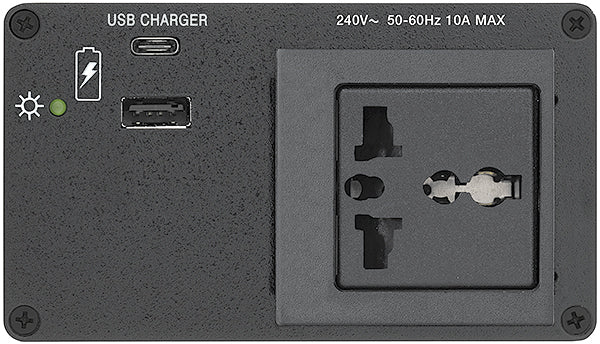

• Available multi-region AC outlet is compatible with a variety of AC plug types
• New US models feature a 12 A circuit breaker for current overload protection
• Non‑US modules provide up to 47.5 W of USB combined total power — USB‑C delivers up to 45 W and USB Type‑A delivers up to 10 W.

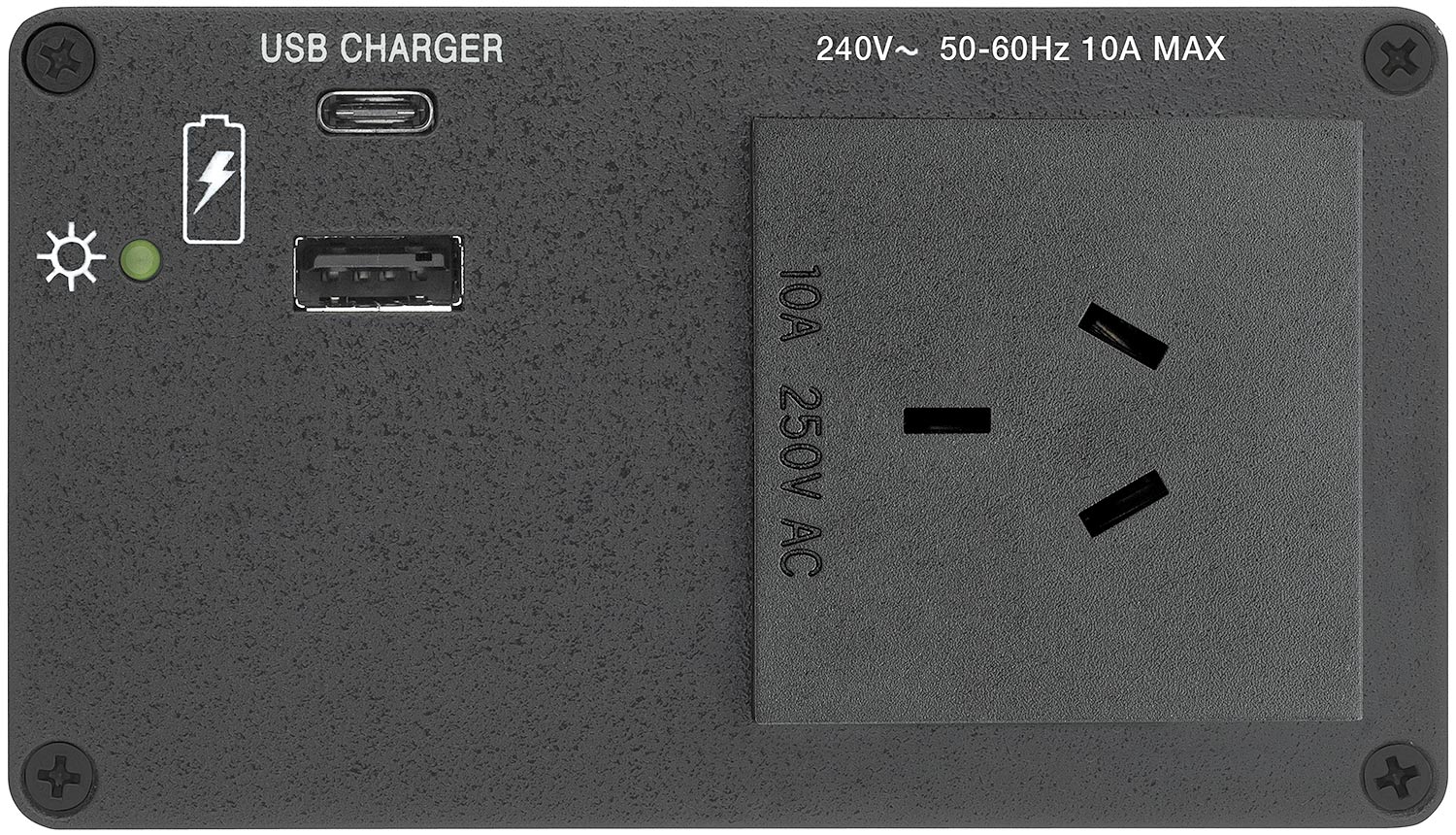

• New AUS model features one Australia AC, USB Type‑C, and USB‑A outlets
• US models feature an internal Extron Everlast™ power supply — Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
• Non‑US modules feature an external Everlast power supply included, replacement part # 70‑1246‑01 — Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs.
• Non‑US modules include a ZipClip 200 Mounting Kit to securely mount an Extron power supply onto most surfaces, including tables and lecterns

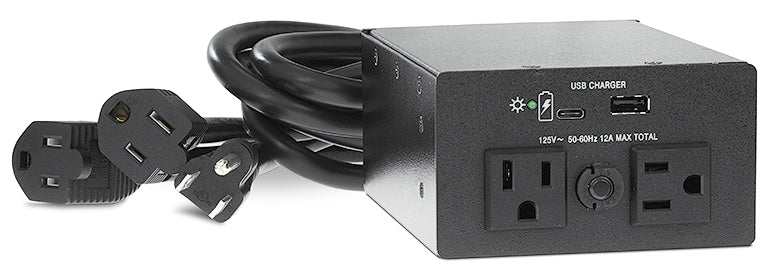

• New UL-listed US Cord model features an attached 9.5' (2.90 m) AC power cord and two 2’ US AC outlet cables at the bottom of the module to power optional AV devices; part # 60‑1891‑01

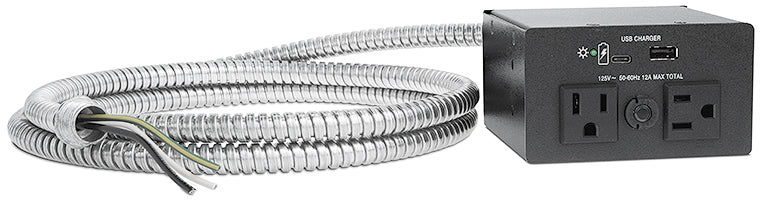

• UL‑listed US Conduit model features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable; part # 60‑1891‑20
• Non‑US power modules are CE compliant
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

AC+USB 300 Power Module Series for Cable Cubby Series
General
Power output
AC (US model)	125 VAC. 50-60 Hz, 12 A max total
AC (non-US models)	240 VAC, 50-60 Hz, 10 A max total
USB (US model)
Type C	5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3 A or 20 VDC @ up to 2.25 A. 45 watts max.
Type A	5 VDC @ up to 2 A, 10 watts max.
USB (non-US models)
Type C	5 VDC @ up to 3 A, 9 VDC @ up to  3A, 12VDC @ up to 3 A, 15 VDC @ up to 3 A, or 20 VDC @ up to 2.25 A.
Type A	5 VDC @ up to 2 A (5 VDC up to 0.5 A when USB Type C is in 15 VDC or 20 VDC profile) 47.5 total watts combined USB Type C and USB Type A

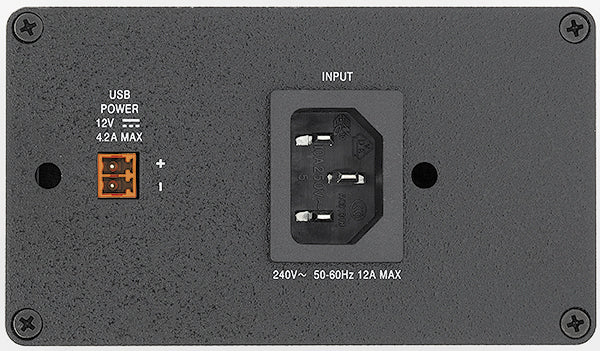

USB power supply (non-US models)	External Input: 100-240 VAC, 50-60Hz Output: 12 VDC, 4.2 A
USB power consumption
US model	63.7 watts
Non-US models
Device	50.9 watts
Device and power supply	55.4 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
USB thermal dissipation
US model
Device and internal power supply	29.6 BTU/hr
Non-US models
Device	11.4 BTU/hr
Device and power supply	27.0 BTU/hr
Mounting	Mountable into select Cable Cubby enclosures
Enclosure dimensions
US model	2.40" H x 4.20" W x 6.00" D (61 mm H x 107 mm W x 152 mm D) For US AC cord models: Allow an additional 1.00" (25 mm) depth to account for the attached AC power cord bend radius. For US AC conduit model: Allow an additional 5.00" (127 mm) depth to account for the attached flexible conduit bend radius.
Non-US AC module	2.40" H x 4.20" W x 2.99" D (61 mm H x 107 mm W x 76 mm D) For non-US AC cord models: Total allowable depth is dependent upon the detachable AC power cord being used. Cable bend radius can vary.
Material	Aluminum body
Product weight
US AC cord model	2.4 lbs (1.1 kg)
US AC conduit model	2.3 lbs (1.0 kg)
Non-US AC model	1.6 lbs (0.8 kg)
Regulatory compliance
US models	c-UL, UL
Environmental	CE in compliance with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     Specifications are subject to change without notice.
(5156-D3)
