Extron AC 100 Series Power Modules Power Modules for Cable Cubby Series and Select TouchLink Enclosures

Extron AC 100 Series Power Modules for Cable Cubby^® Series and select TouchLink^® enclosures are available with discrete AC power outlets for the US, Europe, and other major world markets. Most AC 100 Series power modules feature two unswitched AC power outlets. Extron AC+USB 200 Series Power Modules and AC+USB 300 Series Power Modules are also available for applications where AC and USB Type‑A and/or USB Type‑C^® power outlets are needed. AC 104 US power modules are UL/c-UL listed. The AC 102 JP is PSE certified for use in Japan.

The AC 104 US models feature a 12 A circuit breaker for current overload protection. AC 104 US, Cord model is equipped with an attached 9.5‑foot (2.9‑meter) AC power cord and two 2‑foot US AC outlet cables underneath the module to power optional AV equipment and other devices. AC 104 US, Conduit features a 6‑foot (1.83‑meter) length of 3/8‑inch flexible conduit with a 6‑inch (15.24‑cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power.

Features

• For use with Cable Cubby^® Series and select TouchLink^® enclosures
• AC power outlets available for US, Europe, and other major world markets
• Most versions feature two unswitched AC power outlets
• Available multi-region AC outlet is compatible with a variety of AC plug types
• New US models feature a 12 A circuit breaker for current overload protection and two 2’ US AC outlet cables on the bottom of the module to power optional AV devices
• UL/c-UL-listed US Cord model features an attached 9.5' (2.9 m) AC power cord; part # 60‑1889‑01

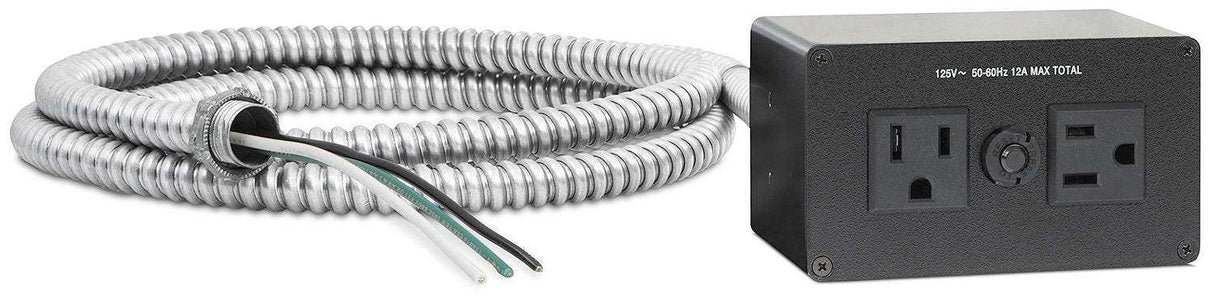

• UL/c-UL-listed US Conduit model features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable; part # 60‑1889‑20

Specs

Also see our  Specs in PDF format

AC 100 Power Module Series
General
Power output
US and JP models	125 VAC. 50-60 Hz, 12A max total
All other models	240 VAC, 50-60 Hz, 10A max total
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting	Mountable into Cable Cubby enclosures
Enclosure type	Cold-rolled steel (face panel), extruded aluminum (body)
Enclosure dimensions	2.40" H x 4.20" W x 2.99" D (61 mm H x 107 mm W x 76 mm D) For US and JP AC cord models: Allow an additional 2.50" (64 mm) depth to account for the attached AC power cord bend radius. For US AC conduit model: Allow an additional 5.00" (127 mm) depth to account for the attached flexible conduit bend radius. For all other models: Total allowable depth is dependent upon the detachable AC power cord being used. Cable bend radius can vary.
Product weight
US and JP AC cord models	1.7 lbs (0.8 kg)
US AC conduit model	1.6 lbs (0.7 kg)
All other models	0.8 lbs (0.4 kg)
Regulatory compliance	CE, NOM, RoHS, WEEE
US models	UL, c-UL
JP model	PSE
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
