Extron AAP1XLR1XLR One XLR 3-pin Female to Solder Cups, One XLR 3-pin Male to Solder Cups - Neutrik AAP Module Black
Extron AAP1XLR1XLR One XLR 3-pin Female to Solder Cups, One XLR 3-pin Male to Solder Cups - Neutrik AAP Module Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AAP1XLR1XLR One XLR 3-pin Female to Solder Cups, One XLR 3-p...

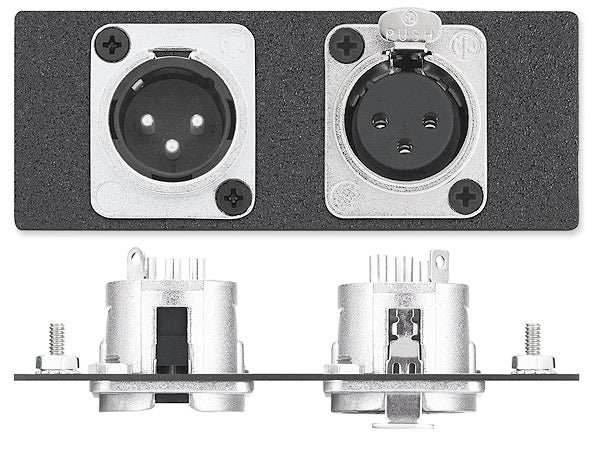

Extron AAP1XLR1XLR is a double-space AAP AV Connectivity Module featuring one Neutrik XLR 3-pin female connector and one Neutrik XLR 3-pin male connector, each with solder cup termination. This passive pass-through module provides professional balanced audio input and output points in architectural AV installations. The mountable metal plate construction ensures secure, durable integration for reliable signal routing without active processing or power requirements.
This module is ideal for conference rooms, classrooms, lecterns, podiums, table boxes, and wall-mounted setups requiring bidirectional XLR connectivity for microphones, mixers, amplifiers, powered speakers, or audio processors integrated with AV systems. It allows custom soldering of balanced audio cables on the rear for fixed installations, supporting clean input and output paths in Extron AAP-compatible frames, interfaces, and enclosures.
Features Chart
| Feature | Benefit |
|---|---|
| Double-space AAP form factor | Fits into Extron interfaces, AAP mounting frames, and compatible enclosures for professional layouts |
| Neutrik XLR 3-pin female connector | Provides standard balanced audio input for microphones or line-level sources |
| Neutrik XLR 3-pin male connector | Enables balanced audio output or interconnection to amplifiers and mixers |
| Solder cup termination (both) | Allows secure, custom cable soldering for permanent, high-reliability connections |
| Mountable metal plate | Delivers sturdy, vibration-resistant mounting and long-term durability in architectural settings |
| Pass-through design | Maintains audio signal integrity with no latency, power draw, or active components |
| AAP series compatibility | Integrates seamlessly with Extron's modular architectural connectivity ecosystem |
| Neutrik construction | Ensures high-contact reliability and robust performance in pro audio environments |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One XLR 3-pin Female (Neutrik) to Solder Cups; One XLR 3-pin Male (Neutrik) to Solder Cups |
| Form Factor | Double Space AAP module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | Balanced audio pass-through (input and output) |
| Size | Double Space |
Compare Chart
| Aspect | Extron AAP1XLR1XLR | Extron AAP1XLR | Extron 1XLR3PMTOSC |
|---|---|---|---|
| Connector Type | XLR 3-pin F + XLR 3-pin M to Solder Cups | XLR 3-pin Female to Solder Cups | XLR 3-pin Male to Solder Cups |
| Gender Configuration | One female + one male | Female only | Male only |
| Brand | Neutrik | Neutrik | Switchcraft |
| Form Factor | Double Space AAP | Double Space AAP | Double Space AAP |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | AAP frames/enclosures |
| Primary Use | Bidirectional balanced audio | Input-focused balanced audio | Output-focused balanced audio |
| Ideal For | Full audio I/O in one module | Microphone/line input | Line-level or amp connections |
FAQ
- What is the main purpose of this module? It provides both Neutrik XLR 3-pin female and male pass-through connectors with solder cup termination for balanced audio input and output in AV installations.
- Which mounting systems are compatible? It fits select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Why include both male and female XLR in one module? It enables bidirectional audio connectivity (input and output) in a single space, simplifying installations that require both directions.
- Does it require power or active components? No, it is a fully passive pass-through module with no electronics or power needs.
- What type of audio does it support? It handles balanced audio signals, suitable for professional microphones (female input), mixers, amplifiers, or line-level interconnections (male output).
- Is it suitable for professional AV environments? Yes, the Neutrik connectors, metal plate, and AAP design ensure durable, high-quality audio performance in conference rooms, classrooms, and architectural setups.
