Extron AAP1RJ45FPDBD One RJ-45 Female to Punch Down - CAT 5 AAP Module
Extron AAP1RJ45FPDBD One RJ-45 Female to Punch Down - CAT 5 AAP Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AAP1RJ45FPDBD One RJ-45 Female to Punch Down - CAT 5 AAP Module

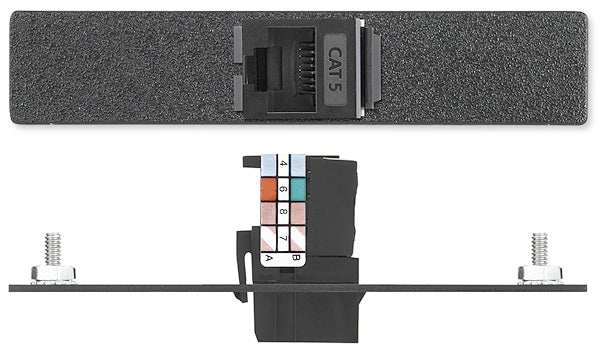

Extron AAP1RJ45FPDBD is a single-space AAP AV Connectivity Module with one RJ-45 female connector on the front linked to a rear punch down terminal block, rated for CAT 5 cabling. This passive installation module enables secure, permanent termination of network or data cables while offering an accessible RJ-45 jack for patch cords, devices, or extensions. The mountable metal plate construction provides durable, professional integration into architectural AV systems for organized and reliable connectivity.
This module suits conference rooms, classrooms, control rooms, lecterns, podiums, table boxes, and wall-mounted setups needing fixed Ethernet or data connections within AV infrastructure. It simplifies wiring for control networks, IP devices, AV over IP, or basic data drops by allowing punch-down termination of incoming cables and easy front access. Compatible with Extron AAP mounting frames, select interfaces, wall boxes, and furniture integrations, it supports modular systems as a passive pass-through solution that preserves CAT 5 signal integrity without power or active components.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space AAP form factor | Compact design fits neatly into Extron interfaces, AAP frames, and compatible enclosures |
| RJ-45 female front connector | Offers convenient access for RJ-45 patch cords, network devices, or extensions |
| Rear punch down terminal block | Enables secure, tool-based permanent termination of CAT 5 cabling for reliable fixed wiring |
| CAT 5 rated | Supports standard Ethernet or data cabling performance in AV control and connectivity applications |
| Mountable metal plate | Ensures sturdy, vibration-resistant mounting and long-term durability in architectural environments |
| Pass-through installation type | Maintains direct signal path with no latency, power requirements, or active processing |
| AAP series compatibility | Integrates seamlessly with Extron's modular AAP connectivity ecosystem for flexible deployments |
| Clean termination solution | Combines accessible front jack with hidden rear punch down for professional, tidy installations |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One RJ-45 Female (front) to Punch Down terminal block (rear) |
| Cable Category | CAT 5 |
| Form Factor | Single Space AAP module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | RJ-45 pass-through (Ethernet/data up to CAT 5) |
| Size | Single Space |
Compare Chart
| Aspect | Extron AAP1RJ45FPDBD | Extron IN9359 | Extron AAP1RJ45FFBD |
|---|---|---|---|
| Connector Type | RJ-45 Female to Punch Down | RJ-45 Female to Punch Down | RJ-45 Female to Female Barrel |
| Cable Support | CAT 5 | CAT 5 | CAT 5e |
| Form Factor | Single Space AAP | Single Space MAAP Mini | Single Space AAP |
| Mounting System | AAP frames/enclosures | MAAP frames/enclosures | AAP frames/enclosures |
| Termination Method | Punch down (rear) | Punch down (rear) | Barrel adapter |
| Primary Use | Fixed network termination | Compact fixed termination | Removable cable extension |
| Series/Form Factor Focus | Standard AAP | Compact MAAP Mini | Standard AAP |
| Ideal For | Permanent AV network drops | Space-limited installations | Flexible patch cord use |
FAQ
- What is the main purpose of this module? It provides an RJ-45 female jack with rear punch down terminals for terminating and extending CAT 5 network or data cables in professional AV setups.
- How does the punch down feature operate? The rear terminal block allows secure punch-down termination of incoming CAT 5 cabling, while the front RJ-45 connector accepts patch cords or devices.
- Which mounting systems support it? It installs into select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Does it require power or active electronics? No, it is a passive pass-through module with no power needs or signal processing.
- Why prefer punch down termination? It offers permanent, reliable wiring for fixed installations, reducing the risk of loose connections over time compared to barrel adapters.
- Is it appropriate for AV network integrations? Yes, tailored for CAT 5 Ethernet or control networks, making it suitable for incorporating data connectivity into conference room or classroom AV systems.
