Extron AAP1RJ45FFBCAT6LXCS One RJ-45 Female to Punch Down - CAT 6 AAP Module White
Extron AAP1RJ45FFBCAT6LXCS One RJ-45 Female to Punch Down - CAT 6 AAP Module White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AAP1RJ45FFBCAT6LXCS One RJ-45 Female to Punch Down - CAT 6 A...

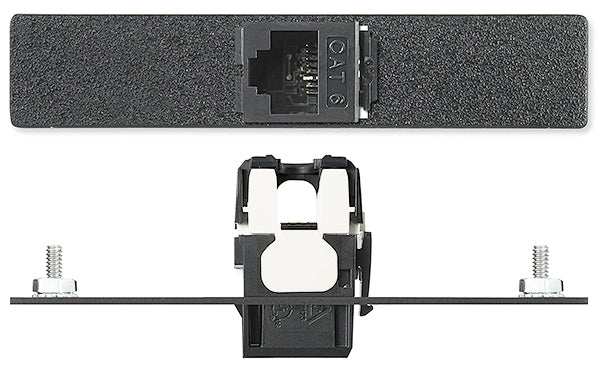

Extron AAP1RJ45FFBCAT6LXCS is a single-space AAP AV Connectivity Module with one RJ-45 female connector on the front connected to a rear punch down terminal block, rated for CAT 6 cabling. This passive installation module enables secure, permanent termination of high-performance network or data cables while providing an accessible RJ-45 jack for patch cords, devices, or extensions. The mountable metal plate construction ensures durable, professional integration into architectural AV systems for clean, organized connectivity.
This module is well-suited for conference rooms, classrooms, control rooms, lecterns, podiums, table boxes, and wall-mounted setups requiring fixed Gigabit Ethernet or data connections within AV infrastructure. It streamlines wiring for IP control networks, AV over IP applications, high-speed data drops, or networked peripherals by supporting punch-down termination of incoming CAT 6 cabling and convenient front access. Compatible with Extron AAP mounting frames, select interfaces, wall boxes, and furniture integrations, it serves as a passive pass-through solution that maintains CAT 6 signal integrity without power or active components.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space AAP form factor | Compact design fits neatly into Extron interfaces, AAP frames, and compatible enclosures |
| RJ-45 female front connector | Provides easy access for RJ-45 patch cords, network devices, or extensions |
| Rear punch down terminal block | Enables secure, tool-based permanent termination of CAT 6 cabling for reliable fixed wiring |
| CAT 6 rated | Supports Gigabit Ethernet with reduced crosstalk for high-performance AV network applications |
| Mountable metal plate | Delivers sturdy, vibration-resistant mounting and long-term durability in architectural settings |
| Pass-through installation type | Maintains direct signal path with no latency, power requirements, or active processing |
| AAP series compatibility | Integrates seamlessly with Extron's modular AAP connectivity ecosystem for flexible deployments |
| High-performance termination | Ensures reliable, future-ready network connectivity for modern AV systems |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One RJ-45 Female (front) to Punch Down terminal block (rear) |
| Cable Category | CAT 6 |
| Form Factor | Single Space AAP module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | RJ-45 pass-through (Ethernet/data up to CAT 6) |
| Size | Single Space |
Compare Chart
| Aspect | Extron AAP1RJ45FFBCAT6LXCS | Extron AAP1RJ45FPDBD | Extron IN9477 |
|---|---|---|---|
| Connector Type | RJ-45 Female to Punch Down | RJ-45 Female to Punch Down | RJ-45 Female to Punch Down |
| Cable Support | CAT 6 | CAT 5 | CAT 6 |
| Form Factor | Single Space AAP | Single Space AAP | Single Space MAAP Mini |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | MAAP frames/enclosures |
| Termination Method | Punch down (rear) | Punch down (rear) | Punch down (rear) |
| Primary Use | Fixed Gigabit network termination | Standard fixed termination | Compact fixed Gigabit termination |
| Performance Level | Gigabit+ with better crosstalk | Basic Ethernet | Gigabit+ |
| Ideal For | Permanent CAT 6 drops in AAP | General permanent drops | Space-limited CAT 6 installs |
FAQ
- What is the main purpose of this module? It provides an RJ-45 female jack with rear punch down terminals for terminating and extending CAT 6 network or data cables in professional AV installations.
- How does the punch down termination work? The rear terminal block allows secure punch-down of incoming CAT 6 cabling, while the front RJ-45 connector accepts patch cords or devices.
- Which mounting systems are compatible? It installs into select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Does it require power or active components? No, it is a passive pass-through module with no electronics or power needs.
- Why use CAT 6 in this module? CAT 6 delivers improved performance, reduced crosstalk, and support for higher data rates, optimal for Gigabit Ethernet and AV over IP requirements.
- Is it suitable for AV network integrations? Yes, the CAT 6 rating and fixed termination design make it reliable for incorporating high-speed data connectivity into conference room or classroom AV systems.
