Extron AAP SuperPlate HDMI, VGA, Audio, and USB 2 Type-A - White
Extron AAP SuperPlate HDMI, VGA, Audio, and USB 2 Type-A - White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.

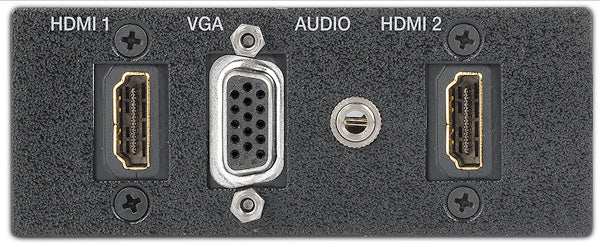

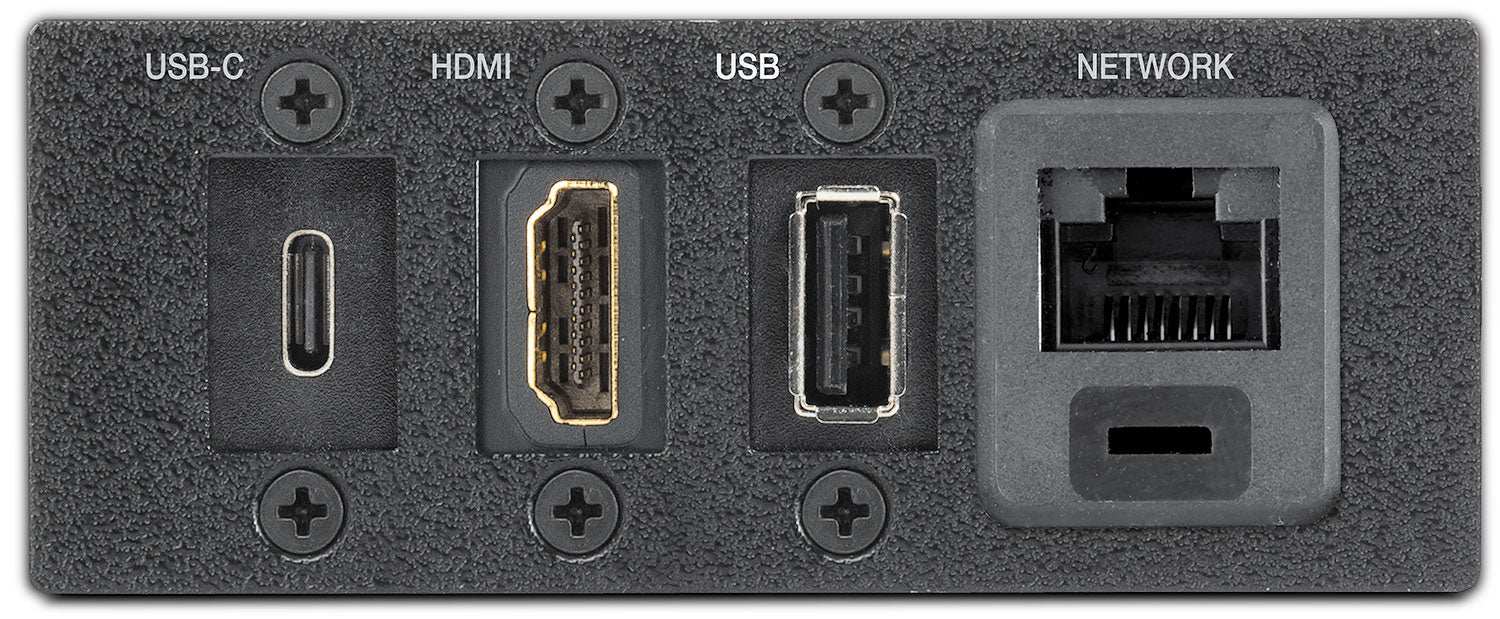

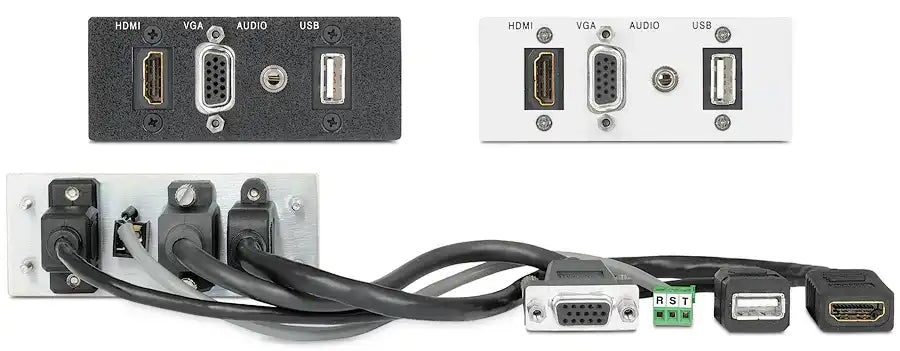

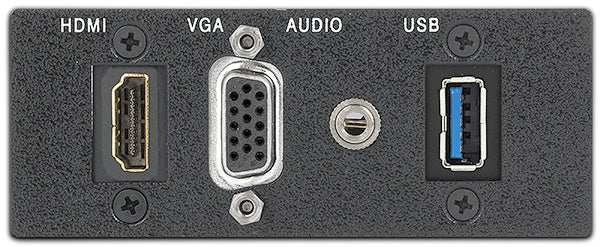

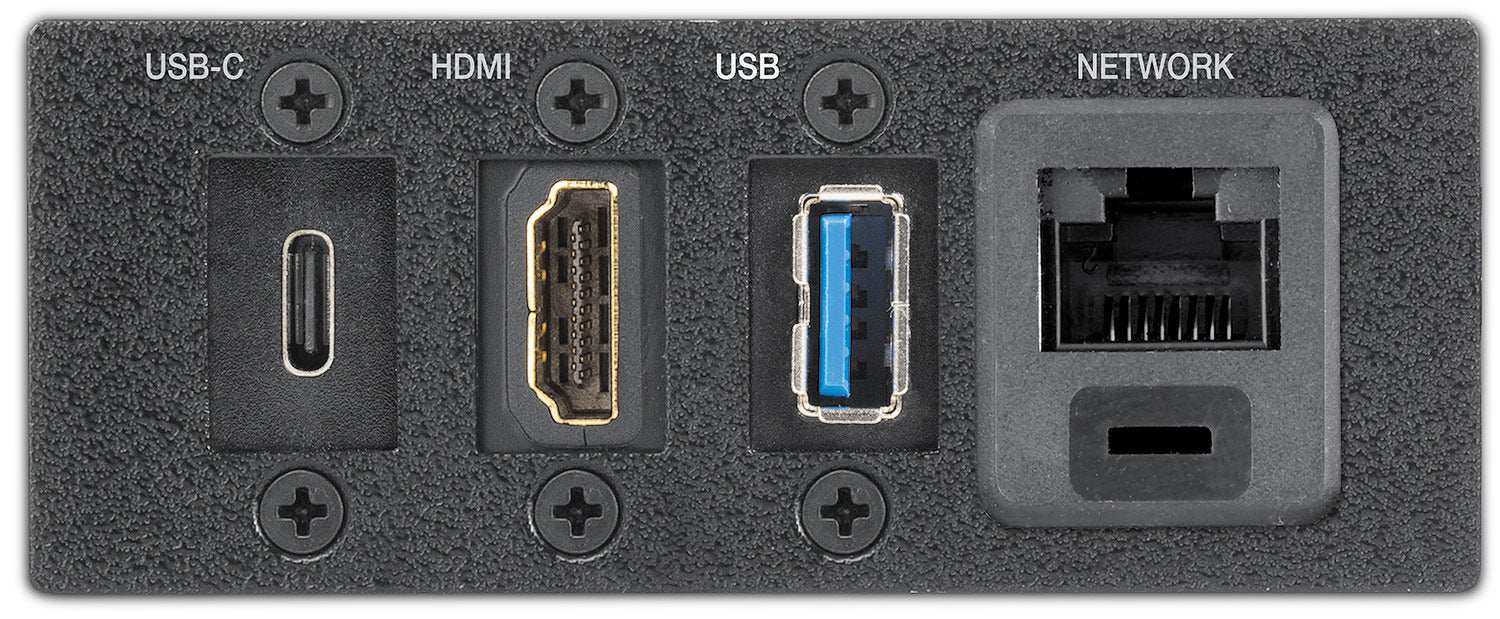

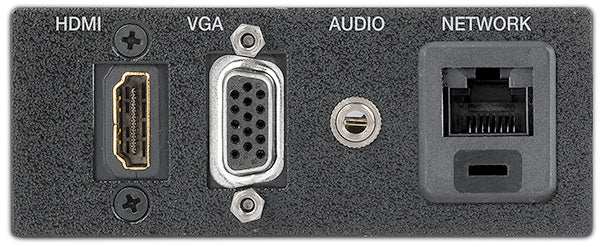

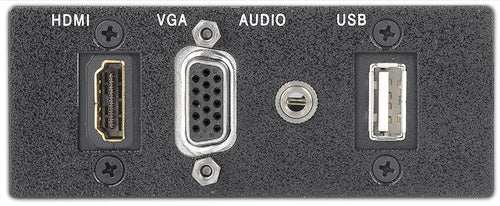

Extron AAP SuperPlate HDMI, VGA, Audio, and USB 2 Type-A - White
The Extron AAP SuperPlate is a high-capacity mounting frame engineered to support up to twelve single-space AAP AV Connectivity Modules in a single large plate. It enables extensive, fully customizable AV, data, USB, network, audio, power, and control connectivity in applications demanding numerous simultaneous connection points. The SuperPlate installs into compatible large surface cutouts, wide furniture sections, custom lecterns, or integrated enclosure systems, delivering organized, flush access to connections while preserving a clean, professional architectural appearance.

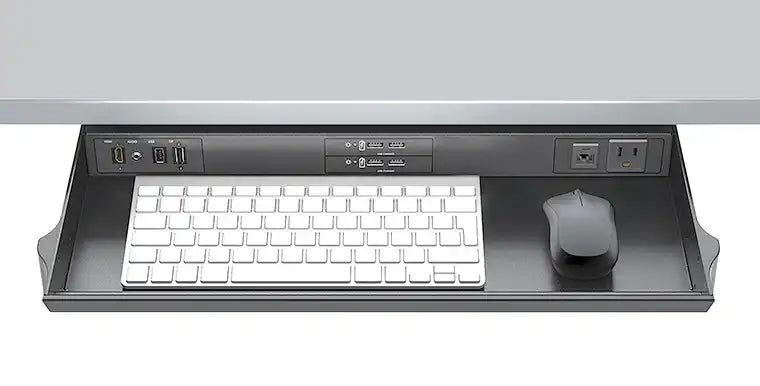

Constructed from durable metal with a low 0.1" profile thickness, the frame is available in black or white finishes to coordinate with room aesthetics and Extron equipment. It integrates seamlessly with Extron Cable Cubby enclosures, AVEdge mounts, under-table kits, lectern solutions, and custom mounting frameworks for maximum deployment flexibility.
This frame is ideal for executive boardrooms, large conference tables, multi-user presentation lecterns, control rooms, training facilities, and high-density collaboration spaces requiring comprehensive modular connectivity without compromising organization or aesthetics.
Features Chart
| Feature | Benefit |
|---|---|
| Capacity for up to twelve single-space AAP modules | Delivers maximum connectivity density for complex AV setups |
| Large-format mounting frame | Accommodates extensive AV, data, USB, network, power, and control needs |
| Durable metal construction | Provides reliable performance in demanding professional environments |
| Black or white finish options | Matches installation aesthetics and Extron system appearance |
| Low-profile 0.1" thickness | Ensures flush, unobtrusive surface integration |
| Full compatibility with AAP module range | Supports HDMI, VGA, USB, audio, pass-through, power, blanks, and more |
| Easy module installation and removal | Allows rapid reconfiguration or expansion on-site |
| Works with Extron mounting solutions | Integrates with Cable Cubby, AVEdge, custom furniture, and enclosures |
Specifications Table
| Specification | Details |
|---|---|
| Form Factor | Large-format SuperPlate mounting frame |
| AAP Module Capacity | Up to twelve single-space AAP modules (sold separately) |
| Dimensions | 4.5" H x 11.3" W x 0.1" D (11.4 x 28.7 x 0.25 cm) |
| Finish Options | Black or white |
| Construction | Durable metal |
| Mounting | Large surface cutouts, custom furniture, lecterns, or compatible Extron systems |
| Compatibility | All Extron single-space AAP AV Connectivity Modules; Cable Cubby Series, AVEdge, lectern solutions, custom enclosures |
| Applications | High-density, multi-connection AV installations |
Compare Chart
| Aspect | Extron AAP SuperPlate | Extron AAP 302 (Three-Gang) | Extron AAP 202 (Two-Gang) |
|---|---|---|---|
| AAP Module Capacity | Up to 12 single-space | Up to 6 single-space | Up to 4 single-space |
| Physical Size | Large-format SuperPlate | Three-gang | Two-gang |
| Typical Installation | Wide tables, executive lecterns, custom furniture | Conference tables, lecterns | Standard tables, podiums |
| Finish Options | Black or white | Black or white | Black or white |
| Profile Thickness | 0.1" low-profile | 0.1" | 0.1" |
| Primary Use Case | Maximum connectivity density | Medium to high-density | Moderate connectivity |
| Customization Level | Very high | High | Moderate |
| Best Suited For | Large multi-user environments | Standard conference setups | Smaller presentation areas |
FAQ
- How many AAP modules does the SuperPlate support? It accommodates up to twelve single-space AAP AV Connectivity Modules for extensive customization.
- What types of modules can be installed? Any Extron single-space AAP module including HDMI, VGA, USB, network, audio, power, pass-through, or blank plates.
- Where is the AAP SuperPlate typically mounted? It installs into large surface cutouts, custom furniture, wide lecterns, or compatible Extron mounting systems such as Cable Cubby or AVEdge.
- What finish colors are offered? Black or white finishes are available to match professional AV installations and room aesthetics.
- Can the configuration be changed after installation? Yes, AAP modules are easily installed and removed from the rear, supporting quick updates or expansions.
- How does it differ from standard AAP frames? The SuperPlate provides double the capacity of three-gang frames, making it optimal for applications requiring the highest number of connection points.
