Extron AAP 102 MK AV Connectivity Mounting Frame for MK Boxes White
Extron AAP 102 MK AV Connectivity Mounting Frame for MK Boxes White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AAP 102 MK AV Connectivity Mounting Frame for MK Boxes White

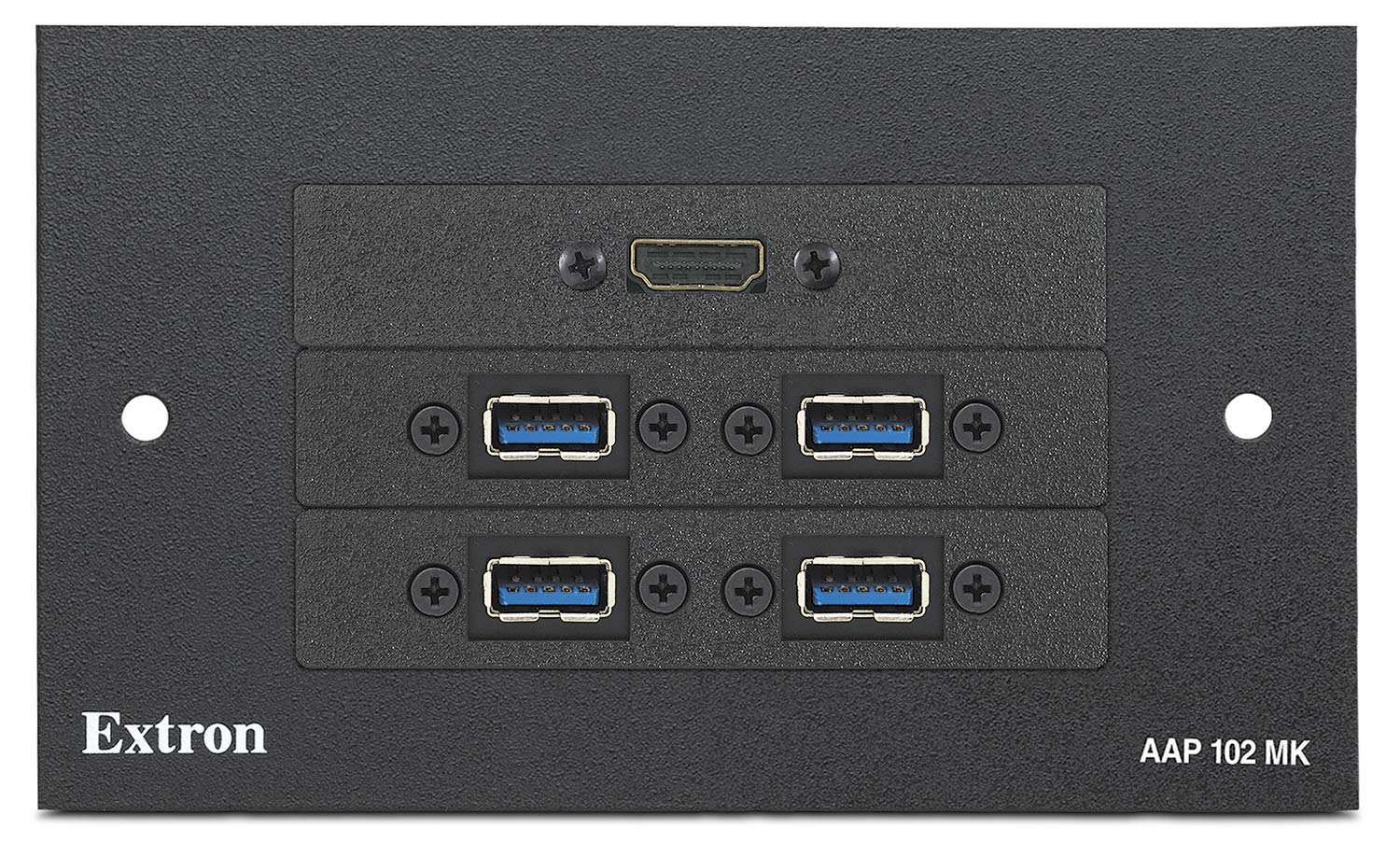

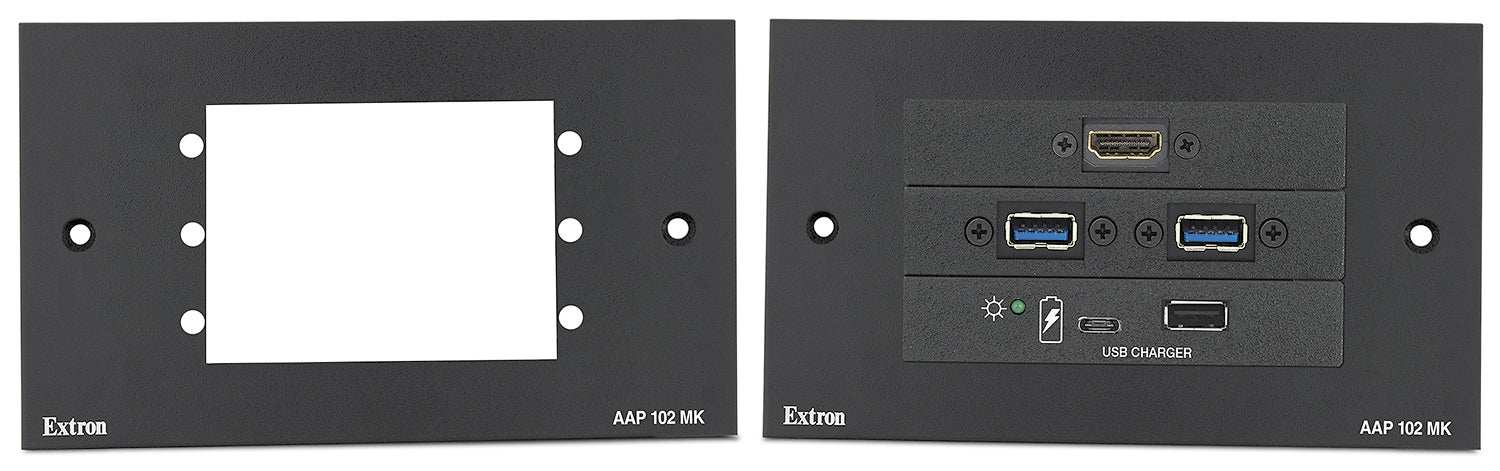

The Extron AAP 102 MK is a two-gang AV connectivity mounting frame specifically designed for installation in two-gang MK-type junction boxes and enclosures common in the United Kingdom, Middle East, Singapore, Hong Kong, and other international markets. It features an opening that accommodates up to three single-space AAP AV Connectivity Modules (sold separately), allowing customization with connectors for HDMI, VGA, USB, network, audio, power, pass-through, or control needs. The frame also supports Extron 55 mm modules for additional flexibility in modular AV setups.
Constructed from durable material with a low-profile 0.1" thickness, the AAP 102 MK provides a flush, professional integration that maintains a clean architectural appearance while enabling easy access to connections in wall or enclosure applications. Available in black or white finishes to coordinate with regional installation standards and room aesthetics.
This mounting frame is ideal for professional AV installations in classrooms, conference rooms, boardrooms, lecture halls, and public spaces in MK-compatible regions where modular, customizable connectivity is required within standard junction boxes without surface-mounted protrusions.
Features Chart
| Feature | Benefit |
|---|---|
| Two-gang MK-type mounting frame | Fits standard MK junction boxes used in UK, Middle East, Singapore, Hong Kong, and similar markets |
| Opening for up to three single-space AAP modules | Maximizes connectivity options with customizable AAP modules (sold separately) |
| Accommodates Extron 55 mm modules | Provides additional compatibility for regional modular AV solutions |
| Low-profile 0.1" thickness | Ensures flush installation with minimal surface protrusion |
| Available in black or white finishes | Coordinates with local aesthetics and installation standards |
| Durable construction | Delivers reliable performance in professional environments |
| Modular AAP integration | Allows tailored configurations for AV, data, control, or power needs |
| Easy module customization | Supports field changes or upgrades as connectivity requirements evolve |
Specifications Table
| Specification | Details |
|---|---|
| Form Factor | Two-gang MK-type mounting frame |
| AAP Module Capacity | Up to three single-space AAP AV Connectivity Modules (sold separately) |
| Additional Compatibility | Extron 55 mm modules |
| Dimensions | 3.4" x 5.7" x 0.1" (8.6 x 14.5 x 0.25 cm) |
| Finish Options | Black or white |
| Construction | Durable mounting frame material |
| Mounting | Direct installation into two-gang MK-type junction boxes and enclosures |
| Applications | Wall/enclosure AV connectivity in MK-compatible regions |
Compare Chart
| Aspect | Extron AAP 102 MK | Extron AAP 102 (Standard) | Extron AAP 102 FB (Floor Box) |
|---|---|---|---|
| Gang/Size | Two-gang MK-type | Two-gang (US-style) | Two-gang floor box |
| AAP Module Capacity | Up to 3 single-space | Up to 4 single-space | Up to 4 single-space |
| Mounting Type | MK junction boxes/enclosures | Tables, lecterns, flat surfaces | Floor boxes |
| Finish Options | Black or white | Black or white | Black only |
| Regional Focus | UK, Middle East, Singapore, HK | General/US-style | Floor installations |
| Thickness | 0.1" low-profile | 0.1" | 0.1" |
| Included Accessories | None specified | Mud ring | None specified |
| Primary Use | International MK wall/enclosure | Furniture/wall mounts | Raised floor access |
FAQ
- What is the AAP 102 MK designed for? It mounts in two-gang MK-type junction boxes to hold up to three AAP modules for AV connectivity in regions using MK standards.
- How many AAP modules can it accommodate? The frame supports up to three single-space AAP AV Connectivity Modules, which are sold separately for customization.
- What finish options are available? It is offered in black or white to match regional installation preferences and room décor.
- Does it support other module types? Yes, it also accommodates Extron 55 mm modules in addition to standard AAP modules.
- Where is this frame typically installed? It is used in two-gang MK junction boxes and enclosures common in the UK, Middle East, Singapore, Hong Kong, and similar markets.
- How does it differ from the standard AAP 102? The AAP 102 MK is optimized for MK-type boxes in international markets and holds three AAP modules, while the standard version fits US-style surfaces and supports four.
